Amada EMZ 3612 MII Electric Punch Machine, 45 Station 300 kN

Amada EMZ 3612 MII Electric Punch Machine, 45 Station
Year 2022

Frame Construction Bridge Type
Numerical Control AMNC 3i
Punching Force 300 kN
Drive System AC Servo, Direct Twin Drive

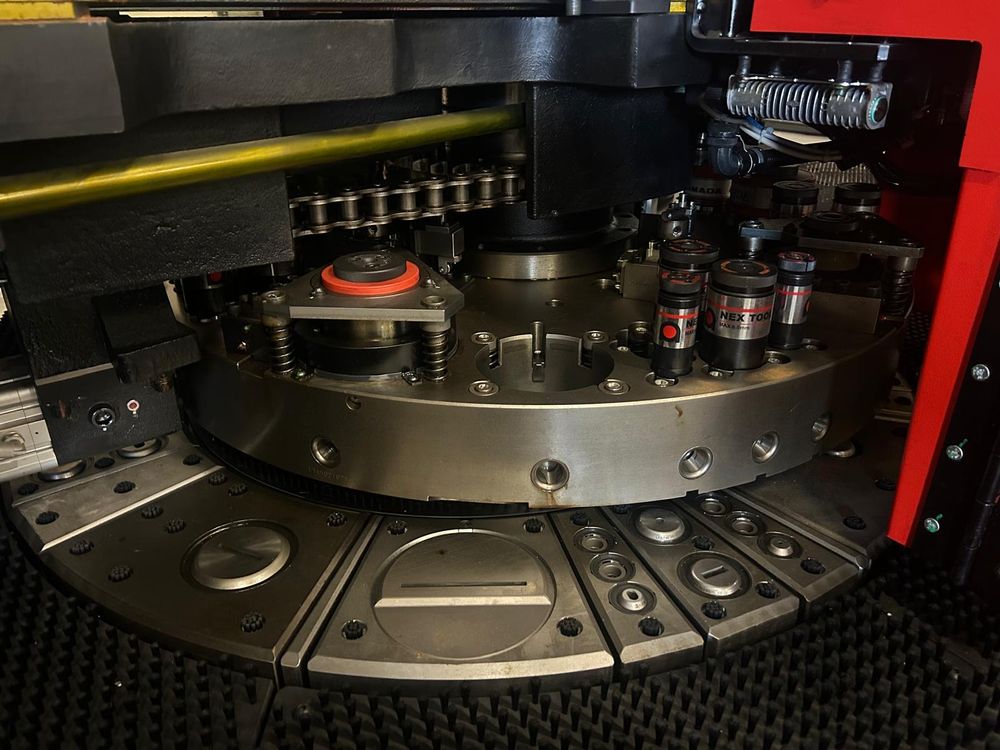

Turret (No. of Stations) 45 Stations:
24 x A (Max. Dia. 12.7mm)
12 x B (Max. Dia. 31.7mm)
2 x C (Max. Dia. 50.8mm)
1 x D (Max. Dia. 88.9mm)
2 x E (Max Dia 114.3mm)

Auto Indexing:
2 x B (Max Dia 31.7mm)
2 x C (Max. Dia. 50.8mm)
Controlled Axis X, Y, C, T + A
Axis Travel Distance, X & Y 3050 x 1525 mm
Maximum Simultaneous Feed Rate X/Y 128 m/min
Maximum Punching Hit Rate (25.4mm pitch/ 5mm Stroke ) 500 (X) him
Positioning Accuracy
+/- 0.1mm
Work Range Without Reposition 3050 x 1525 mm
Maximum Sheet Thickness 4.5 mm
Maximum Material Mass 50 (F1) / 150 (F4) kg

Machine Mass 21 500 KG
Machine Length 5436 mm
Machine Width 6121 mm
Machine Height 2342 mm
