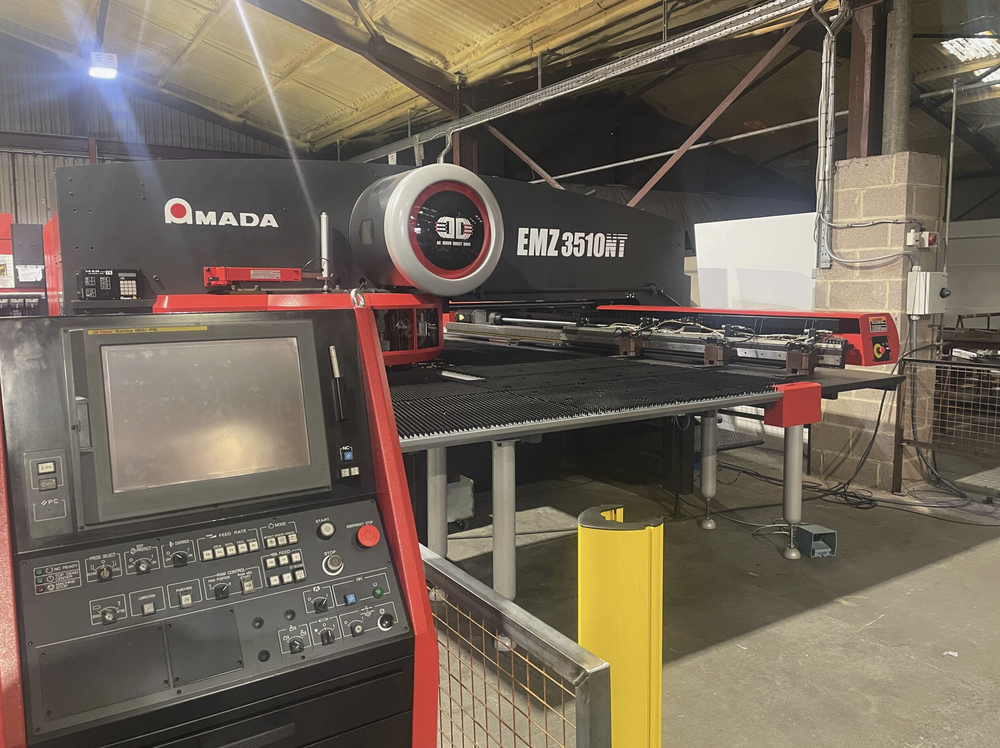

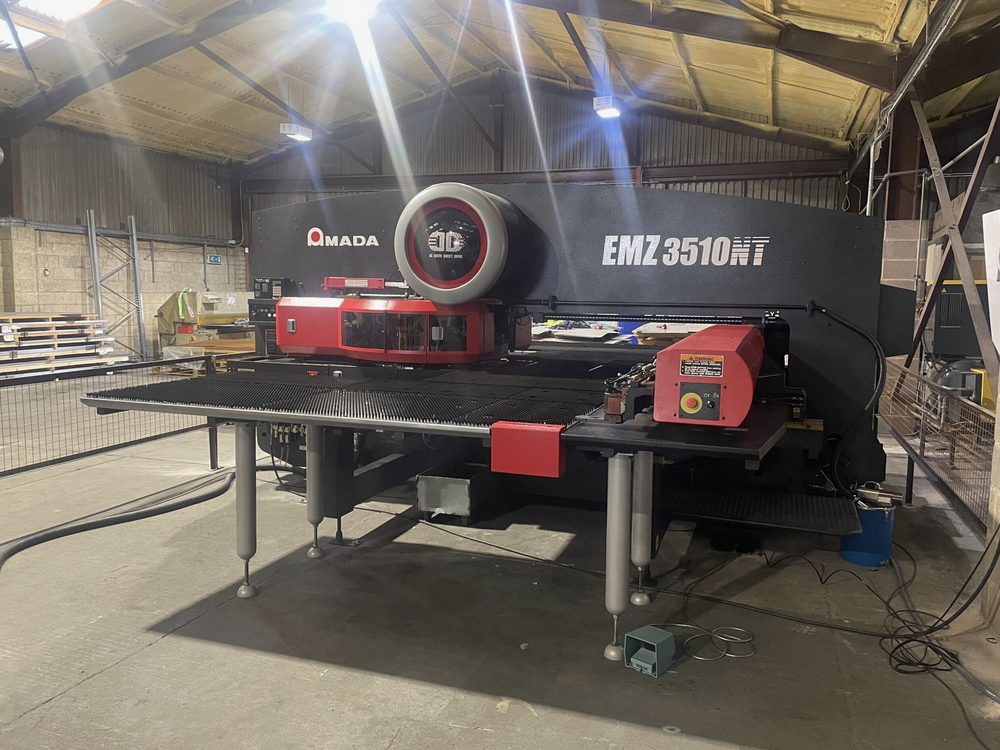

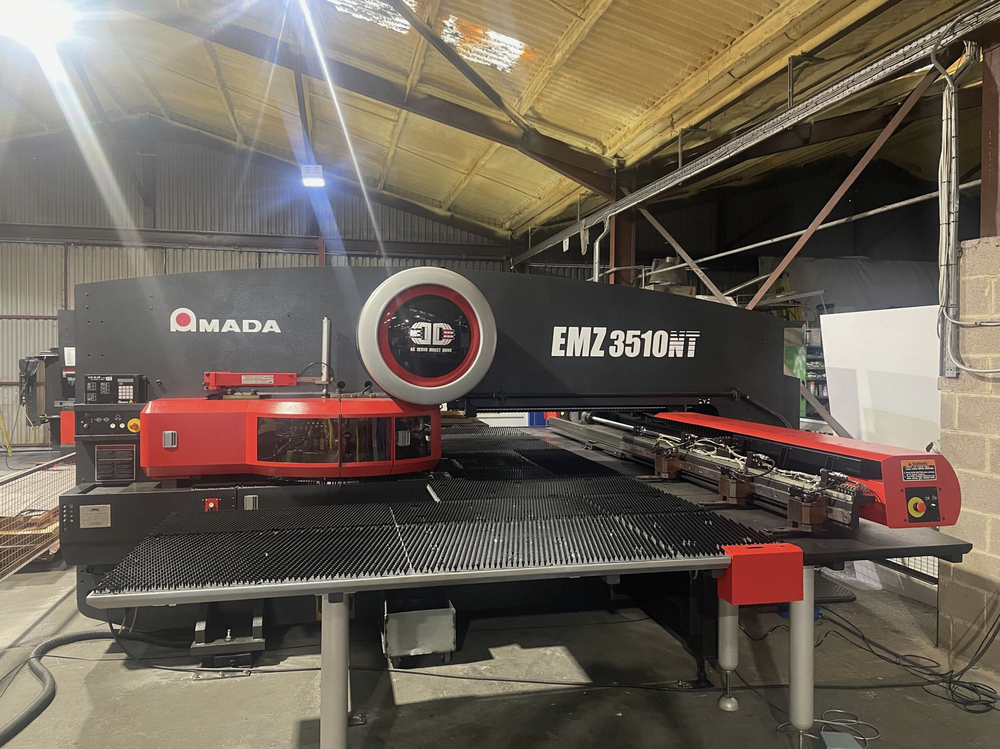

Amada EMZ 3510 NT 30 tonnes (196kN)

Amada EMZ 3510 NT
Year 2006

electric punch, 45 Station Turret with 4 Auto indexing units
Frame Construction Bridge Type
Press Capacity 30 tonnes (196kN)
Press Type High speed AC servo direct twin drive
Axis Traverse Distance 1270 x 2500mm
Workable Maximum
Sheet Size with Auto Positioning 1270 x 5000mm
Max. Material Thickness 4.5mm mild steel
Max. Material Weight 150Kg
Max. Hole Diameter 114.3mm
No. of Stations 45 Stations:
24 x A (Max. Dia. 12.7mm)
12 x B (Max. Dia. 31.7mm)
2 x C (Max. Dia. 50.8mm)
1 x D (Max. Dia. 88.9mm)
2 x E (Max Dia 114.3mm)

Auto Indexing:
2 x B (Max Dia 31.7mm)
2 x C (Max. Dia. 50.8mm)
Axis Speed X / Y X 100m/min, Y80m/min
Hits per Minute 500 min (5mm stroke, 25.4mm pitch): 780 min (5mm stroke, 1.0mm pitch): 1800 min (1.4mm stroke, 0.5mm pitch)
Turret Speed
Bi-Directional 330 RPM
Punching Accuracy / – 0.1mm
Positioning Repeatability / – 0.07mm
Ram Stroke Length 37mm
Tool Lubrication Air Blow System
Axis Drives AC Servo Motor
Electric Power
Required AC200V 3-Phase 5-/60Hz, 27kVA
Air Pressure
Required 5.0 Kgf/cm²
Air Flow
Machine Length 5526mm
Machine Width 5120mm
Machine Height 2318mm
Machine Weight 23 tons
Standard Equipment Safety Lightguards
Model Of NC:
Data Interface: AMNC Touch Screen
Networkable
