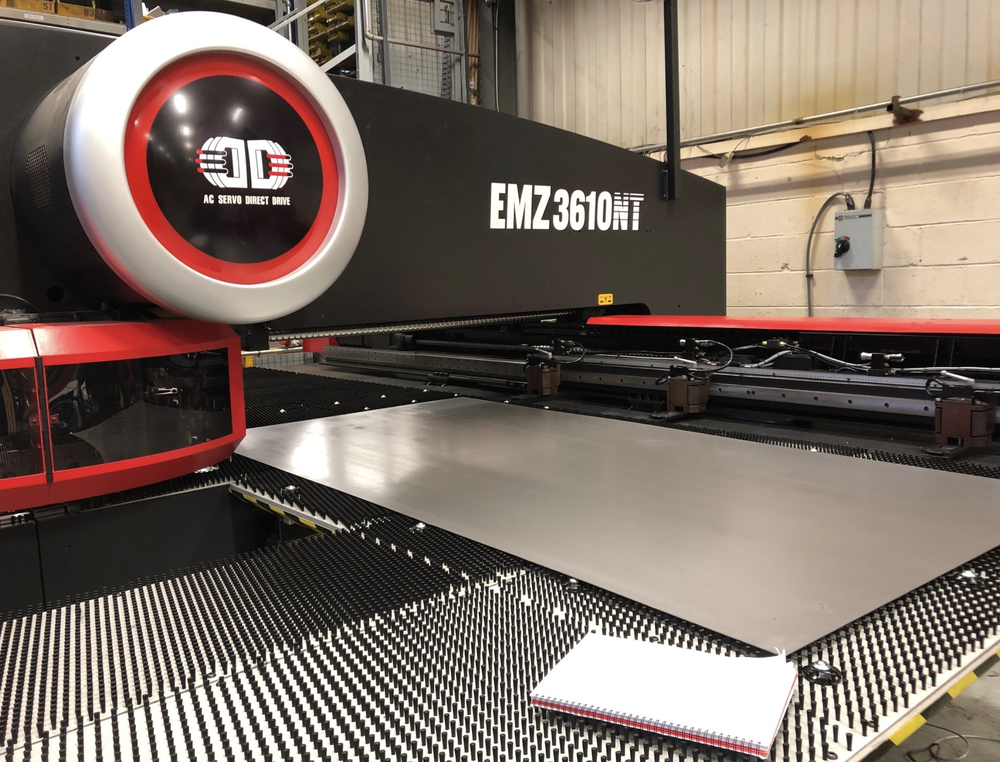

Amada EMZ 3610NT Electric Punch Machine, 45 Station 30 tonnes (196kN)

Amada EMZ 3610NT Electric Punch Machine, 45 Station
Year 2006

Frame Construction Bridge Type
Press Capacity 30 tonnes (196kN)
Press Type High speed AC servo direct twin drive
Axis Traverse Distance 1525 x 2500mm
Workable Maximum
Sheet Size with Auto Positioning 1525 x 5000mm
Max. Material Thickness 4.5mm mild steel
Max. Material Weight 150Kg
Max. Hole Diameter 114.3mm
No. of Stations 45 Stations:
24 x A (Max. Dia. 12.7mm)
12 x B (Max. Dia. 31.7mm)
2 x C (Max. Dia. 50.8mm)
1 x D (Max. Dia. 88.9mm)
2 x E (Max Dia 114.3mm)

Auto Indexing:
2 x B (Max Dia 31.7mm)
2 x C (Max. Dia. 50.8mm)
Axis Speed X / Y X 100m/min, Y80m/min
Hits per Minute 500 min (5mm stroke, 25.4mm pitch): 780 min (5mm stroke, 1.0mm pitch): 1800 min (1.4mm stroke, 0.5mm pitch)
Turret Speed
Bi-Directional 330 RPM
Punching Accuracy / – 0.1mm
Positioning Repeatability / – 0.07mm
Ram Stroke Length 37mm
Tool Lubrication Air Blow System
Axis Drives AC Servo Motor
Electric Power
Required AC200V 3-Phase 5-/60Hz, 27kVA
Air Pressure
Required 5.0 Kgf/cm²
Air Flow
Machine Length 5423 mm
Machine Width 5120 mm
Machine Height 2318 mm
Machine Weight 24,500 kg
Standard Equipment Safety Lightguards
Model Of NC:
Data Interface: AMNC Touch Screen
Networkable
