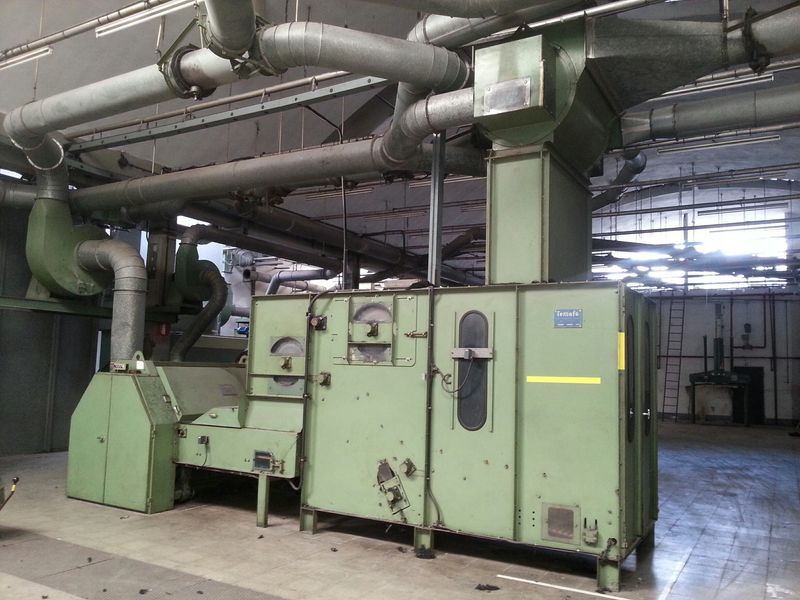

Temafa Fibers preparation line

composed of:
D1
- Bale opener, mod. 0202, w. width 1600 mm.,
- Power table, mod. 0502, length 12 m.
- Fan, mod. 800/350

D2
- Automatic loader, mod. 0301, w. width 1400 mm, continuous feeding KOMPAKT willow card
- Cell and wheel condenser, mod. 0709
- Dust extractor, mod. 1250/6, length from wool flexible tubes 4500 mm, collection bag 1,3 m
- KOMPAKT willow card, mod. 0201, w. width 1600 mm.

D3
- 2 rooms for the material, mod. 0402, 3x5x15 m, h. filler 3.25 m, equal to 146 m3
- 2 movable rear walls, 3x5 m to vary the filling volume
- Movable front wall to close the front of a room
- 2 Telescopic Cyclones, mod. 350/1200 m. 12
- Hopper - Mobile milling cutter, mod. 0405 3x3.25 m
- Telescopic suction tube, mod. 350/1500 m.15
- emulsifier, capacity 500 liters
- 2 waiting rooms, 4.5x4.5x4.5 m, 81 m3
- 3 pneumatic conveying fans
- Various deviators with electric and manual control

D4

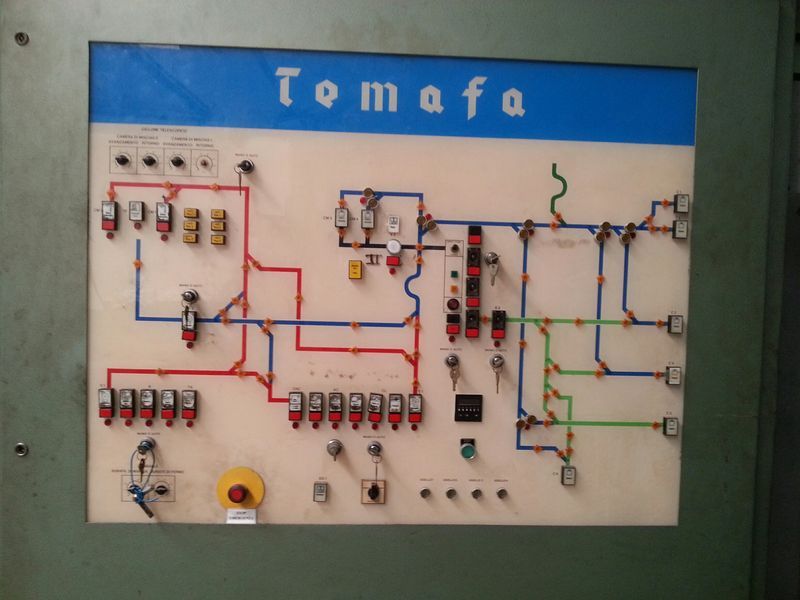

D1, D2 and D3 including distribution board with light circuit diagram, 6 cyclones per box, 4 electrified diverters, 3 aspirators (complete with drawings, instructions and wiring diagrams).
