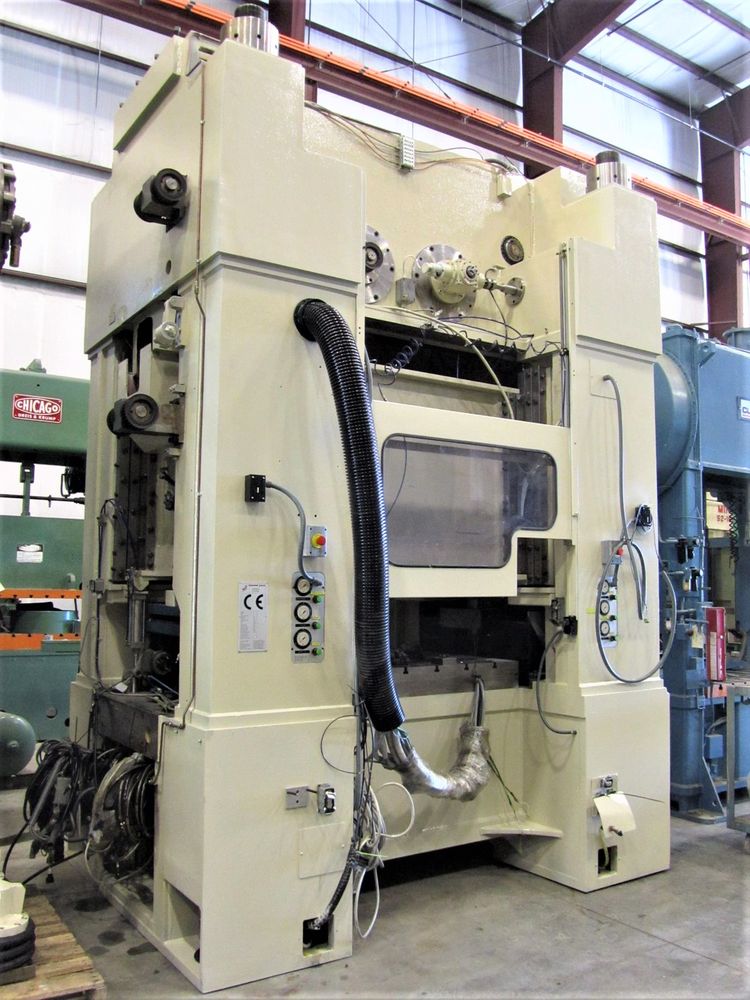

T400 GNT2 Max. 440 Ton

GN2 T400 GNT2 (1997)

CAPACITY 440 TONS
STROKE 5.12″
MAX SHUT HEIGHT TO BED 22″ (SDAU – APPROX)
BED AREA 59-1/2″ RL X 39-1/2″ FB
SPEED 30 – 120 SPM (VARIABLE)
RAM ADJUSTMENT 3.54″
RAM AREA: 59″ RL X 39″ FB (T-SLOTTED)
BOLSTER PLATE: 6″ H X 53″ RL X 39.5″ FB (T-SLOTTED)
DIST UPRIGHTS / FLOOR TO BED: 59-1/2″ / 48″
WINDOW SIZE: 39″ FB X 23″ H
CLUTCH: ORTLINGHAUS AIR CLUTCH/BRAKE COMBINATION
ELECTRICS: 50 HP, 1800 RPM, 480V MOTOR & SIEMENS CONTROLS.
FEEDLINE INCLUDED: 11,000 LB X 23.6″ W X .063″ TH DOUBLE END UNCOILER, COIL STAND, STRAIGHTENER, & FEEDER
APPROX. DIMENSIONS: 15’4″ H X 11’10” RL X 7’4″ FB
APPROX. WEIGHT: 121,000 LBS.

Equipped With
Steel Frame Construction Auto Oil Lubrication (4)
Air Counterbalances On Ram Tie Rod With
Keyed Frame Construction
