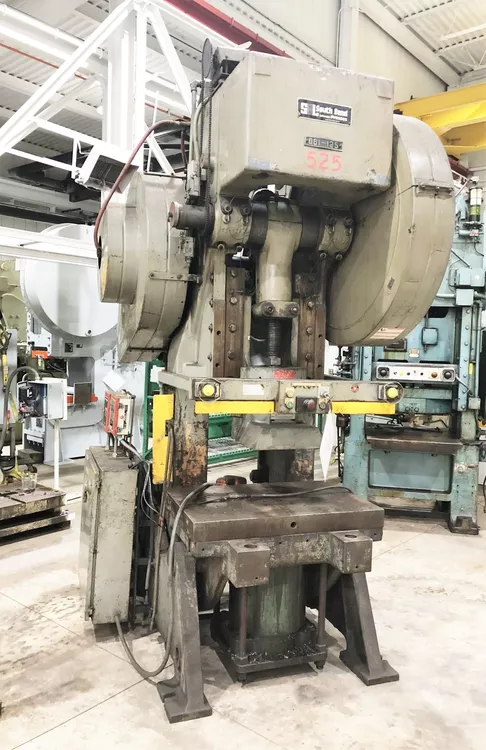

Johnson, South Bend 125BG-AC Press 125 ton

South Bend Johnson 125BG-AC Press
Year: 1980

capacity 125 ton
stroke 6″
max. shut height to bed 18.5″ sdau
bed area 42″ x 27″ (RL X FB)
speed: 40 spm
ram area 28″ x 21″ (RL X FB)
ram adjustment 4″

bolster size 42″ x 27″ (RL X FB) X 4″ THICK BOLSTER PLATE – 20″ WIDE X 15″ HOLE IN BED
clutch air clutch and brake
electrics 15 HP 1150 RPM 240/480V-3-60 LINCOLN A.C. motor – 43/21.5 AMPS
CONTROLS ALLEN BRADLEY RELAY LOGIC CONTROLS
overall dimensions 11′ high, 6′ rl, 6′ 6″ fb
approx. weight: 23,000 lbs.
