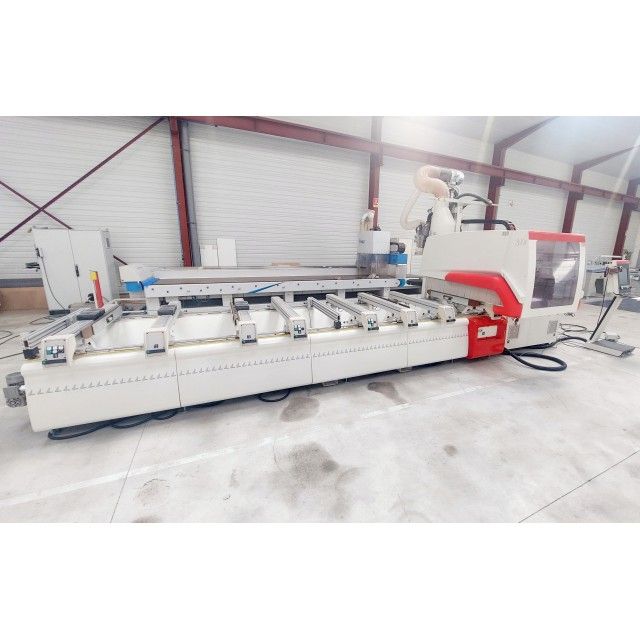

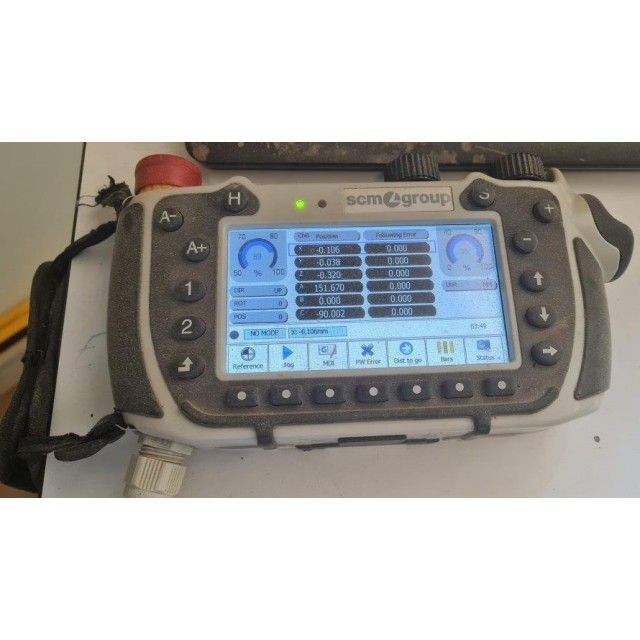

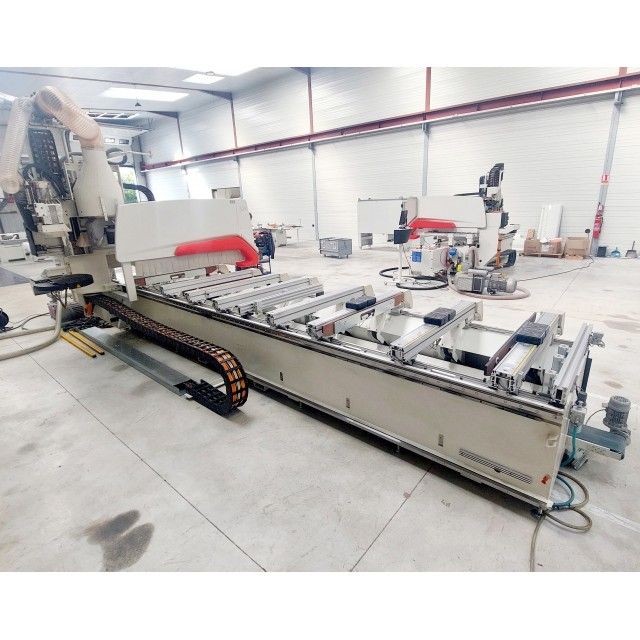

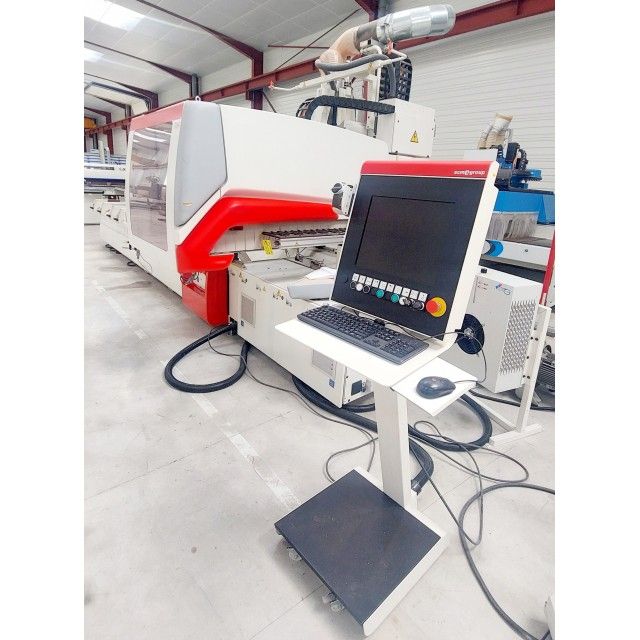

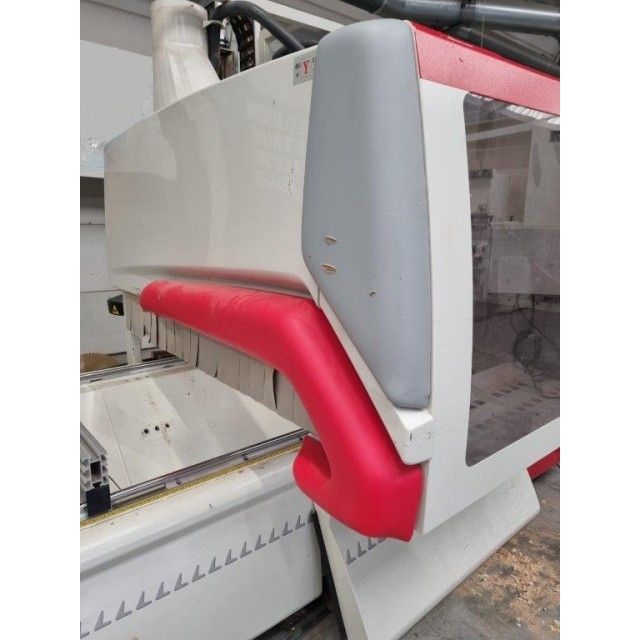

SCM TECH Z5 5-axis

5 -axis drilling & milling center
TECHNICAL DATA:
Useful area for machining the axes x/y/z (*) 5200/1550/160 mm
(*) X = distance between the stops
Y = Strawberry center as a reference
Z = Passage of the room

Double Piece Length 2460 mm
Axes race x/y/z 5714/1892/440 mm
Vector speed of axes x/y 60 m/min

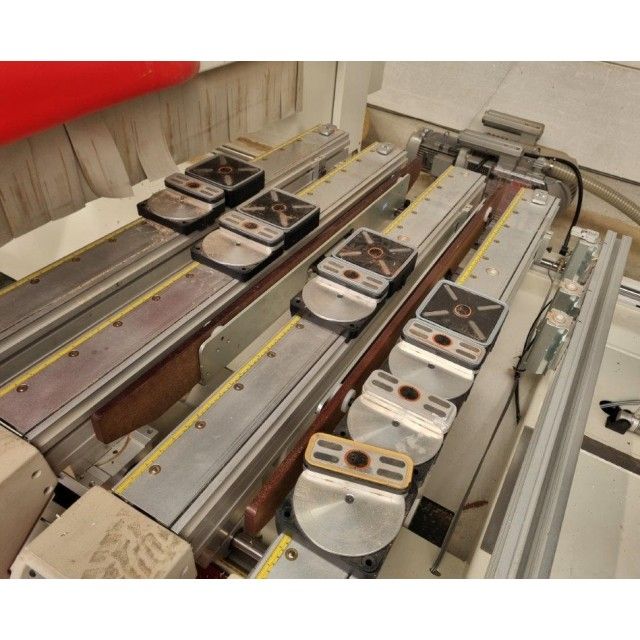

Machining table
Number of tables - Supboat numbers per table 8/2

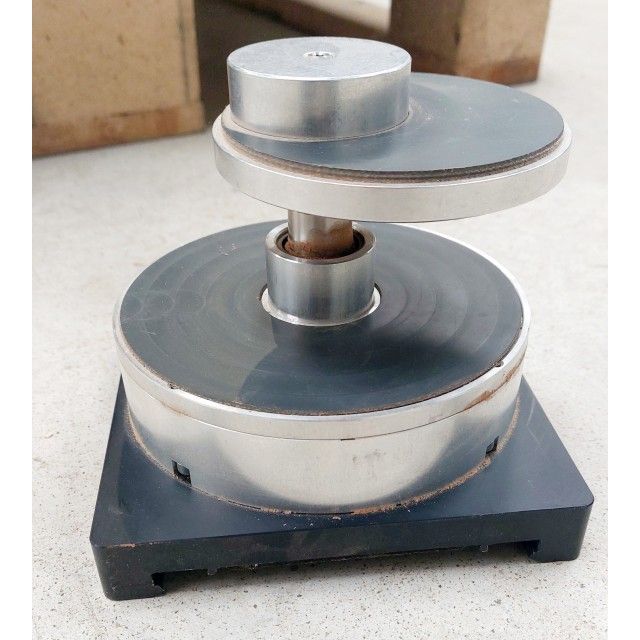

Standard height of suction cups 50 mm
Standard stop number by table 2
1300 mm bars length

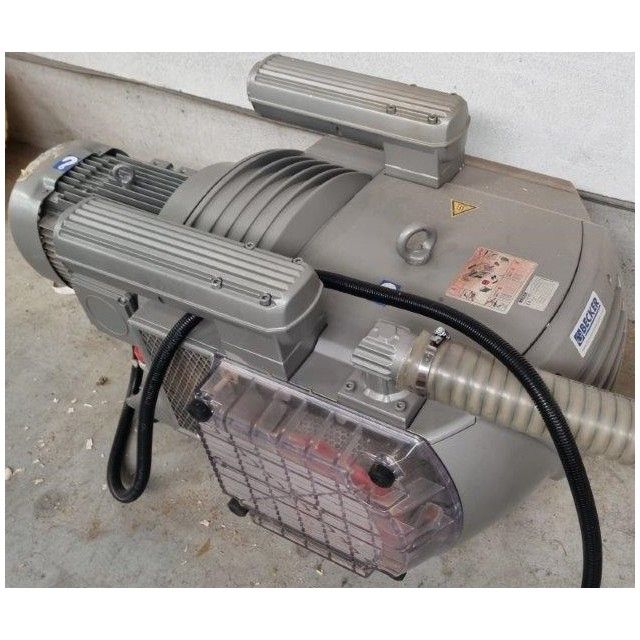

Vacuum pump 90/108 m3

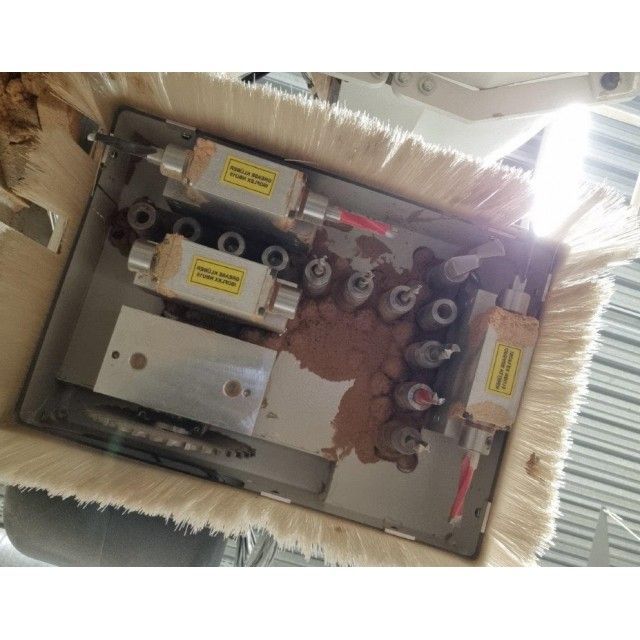

Drilling head
VERTICAL MANDRINS STD 12 (8x-4y) / 6000 rpm
Horizontal Mandrins STD 6 (4x-2y) / 6000 rpm
BLADE INTENDED IN X 120/7500 T/MIN
Engine power 2.2 kW / 3 hp.

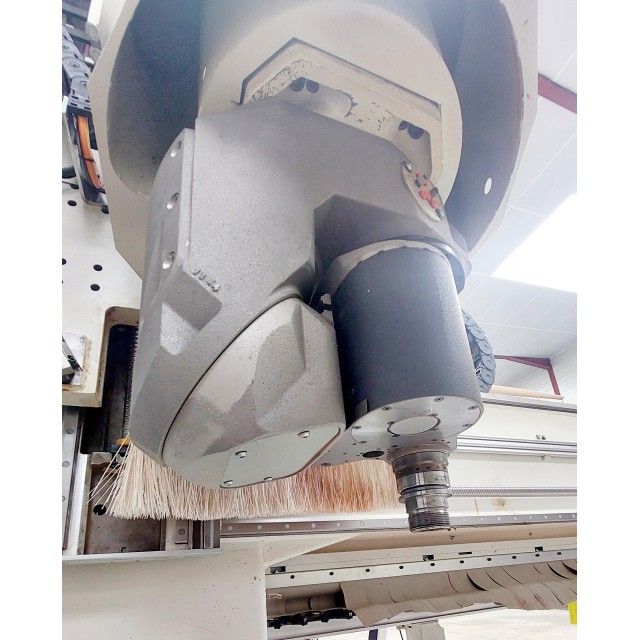

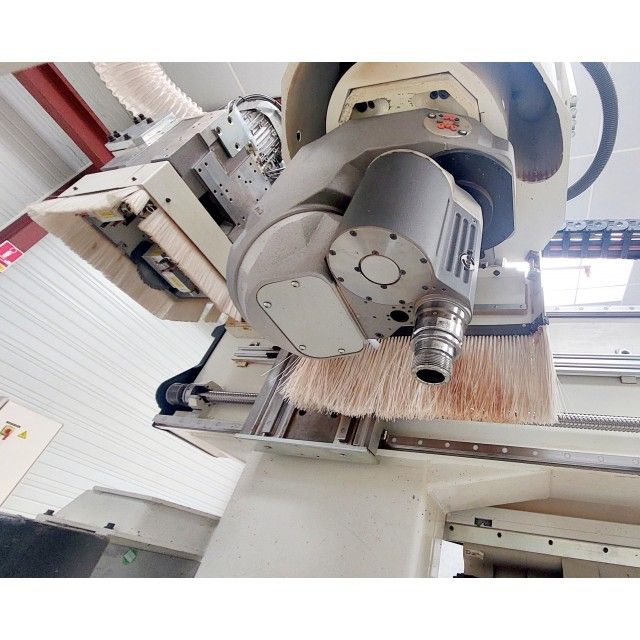

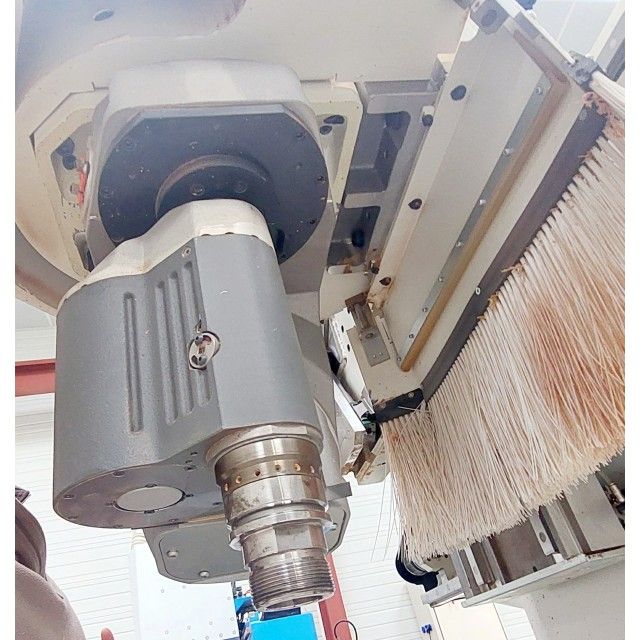

Electromandrin
Power STD S1/S2 11/12 KW (15/16.5 hp.)
Maximum speed 20,000 rpm

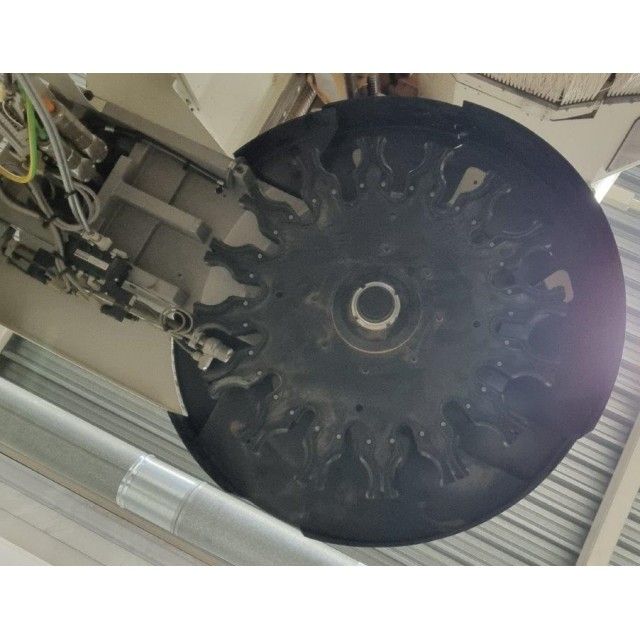

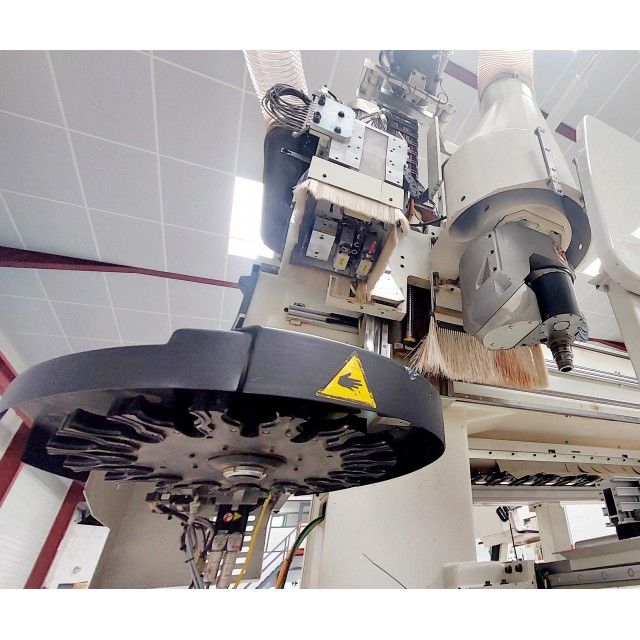

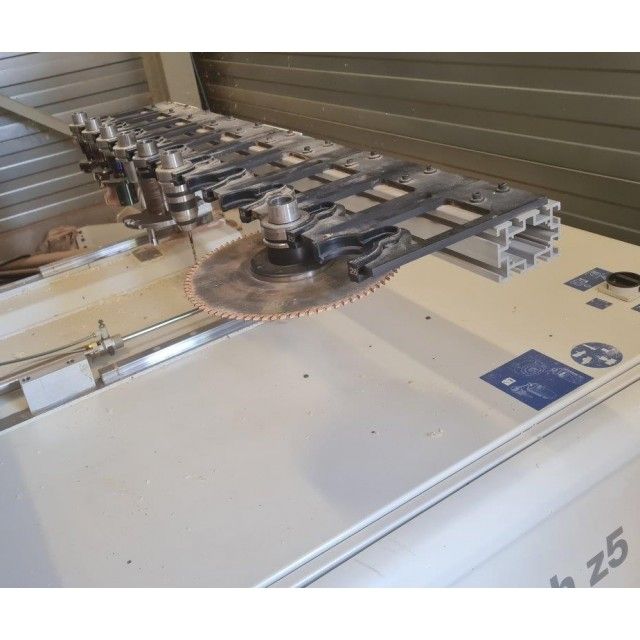

Tool store on the 12 -seater X cart
Building tool store 10 places

Installed power 23 ÷ 28.5 kVA
450 nl/min compressed air consumption
Air consumption aspired 5300 m3/h
Air speed aspired 30 m/sec
Suction mouth diameter 250 mm
Total machine weight 3,700 kg
