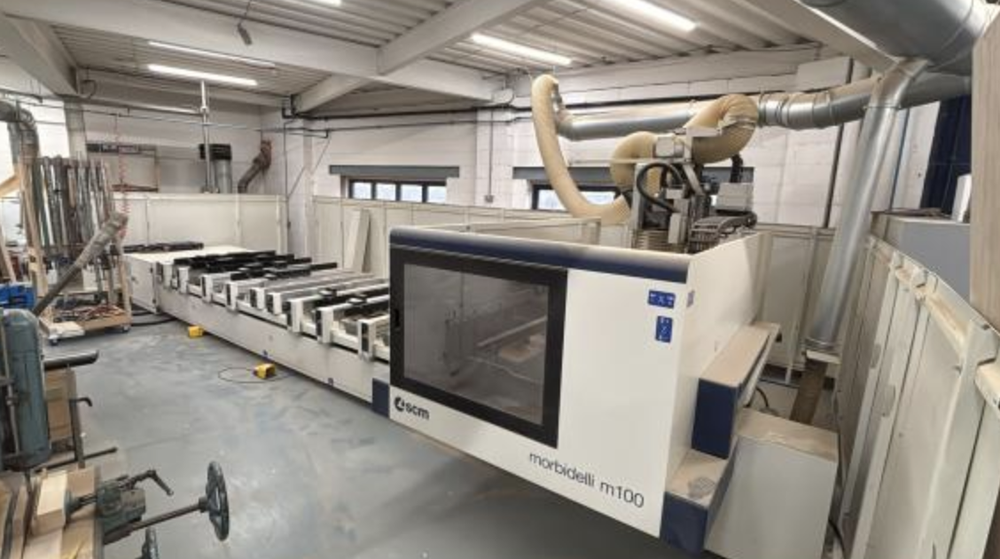

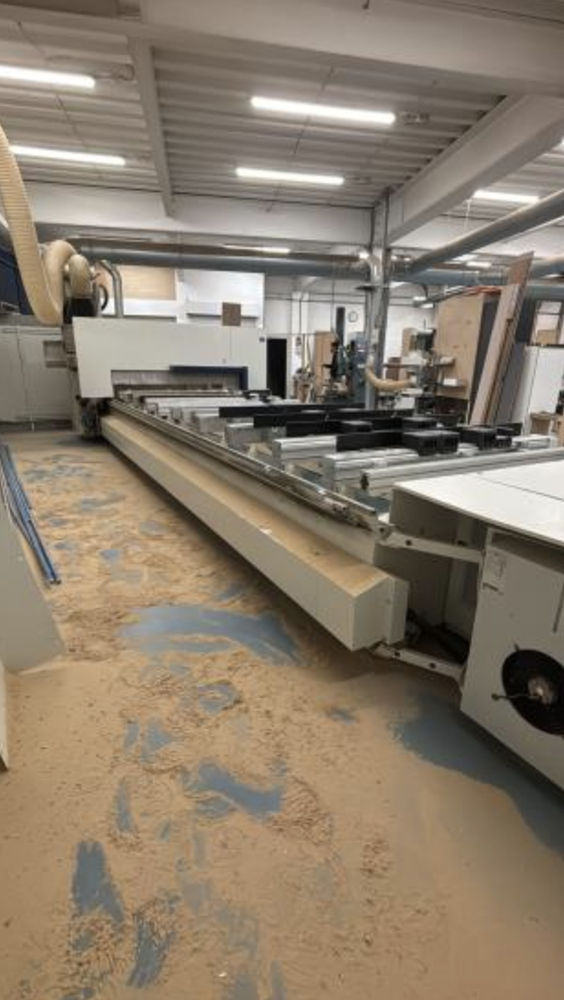

Morbidelli, SCM M100 5-axis

CNC

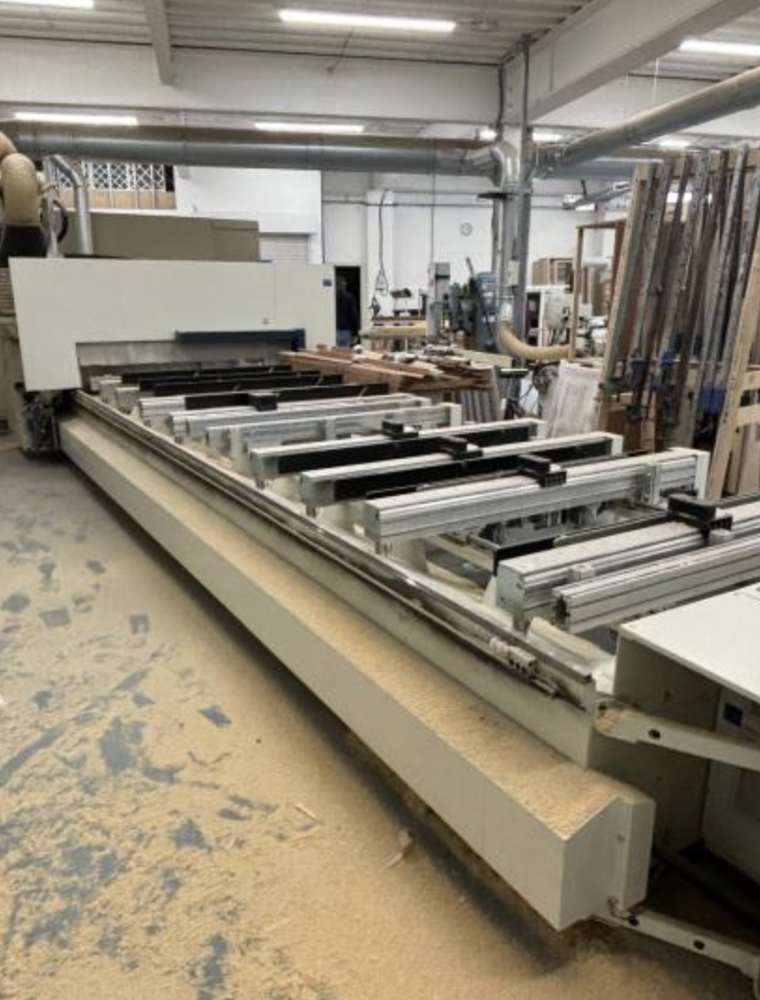

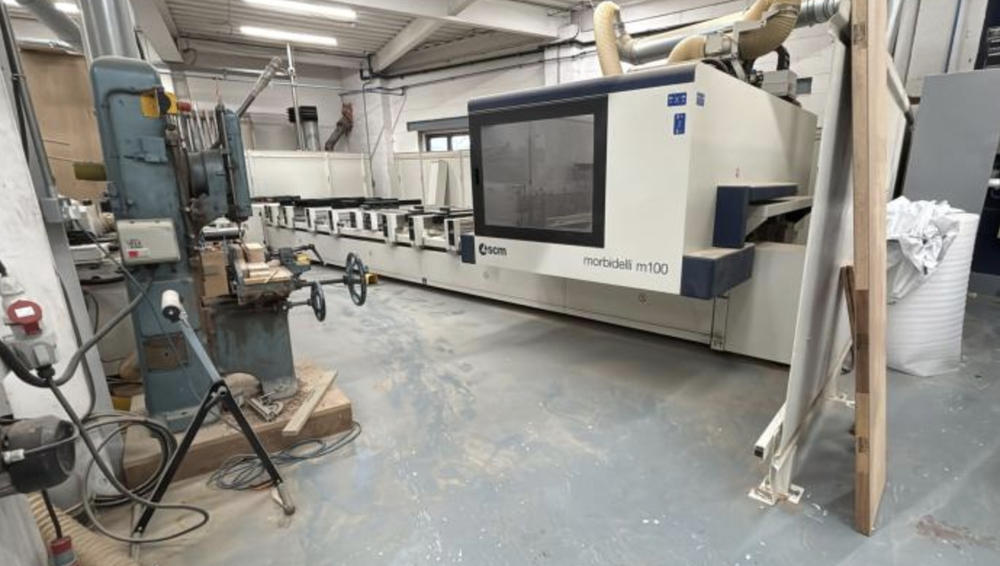

Machining table dimensions 5510x1620 mm (LxW)
400 Volt / 50 Hz
PRO-Speed safety system

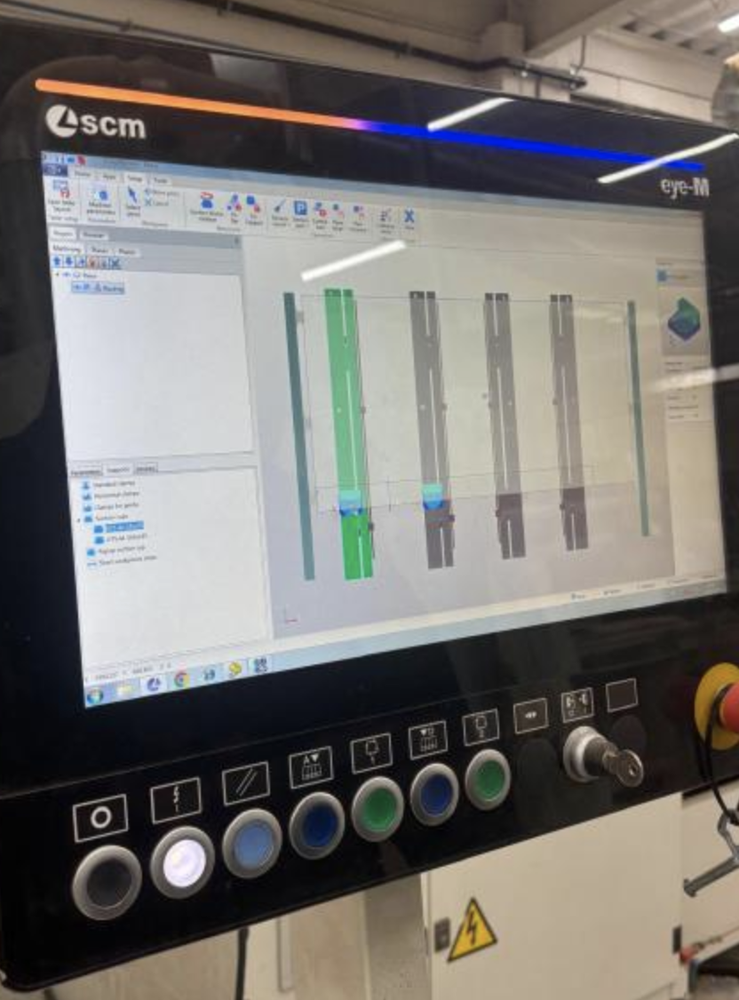

TEPCAD control panel with touchscreen colour display

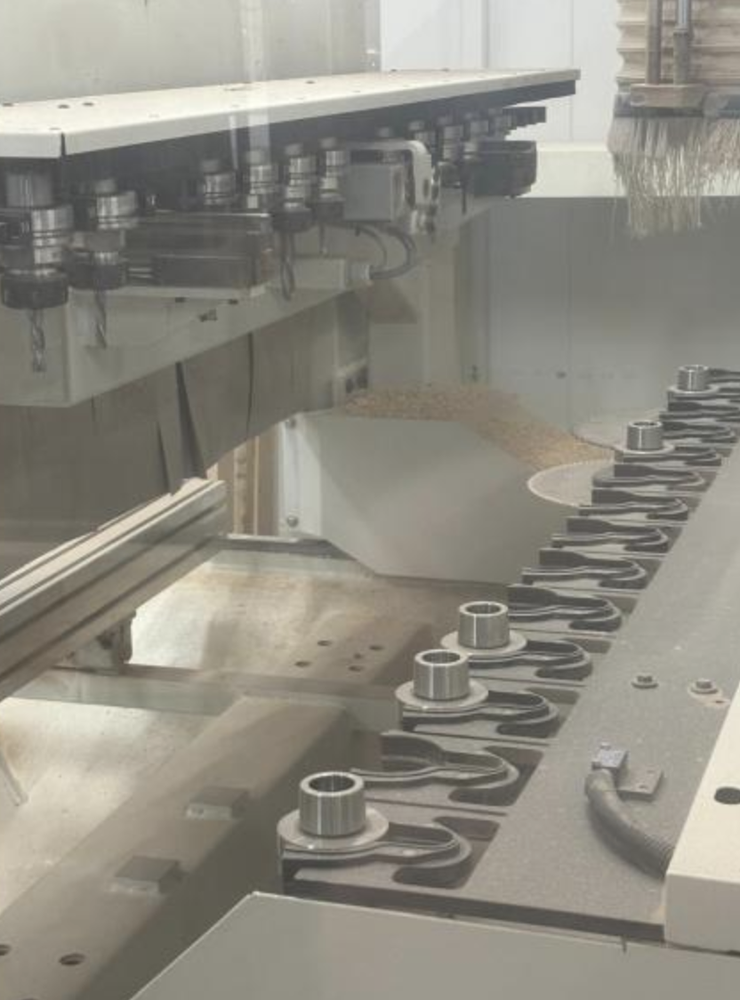

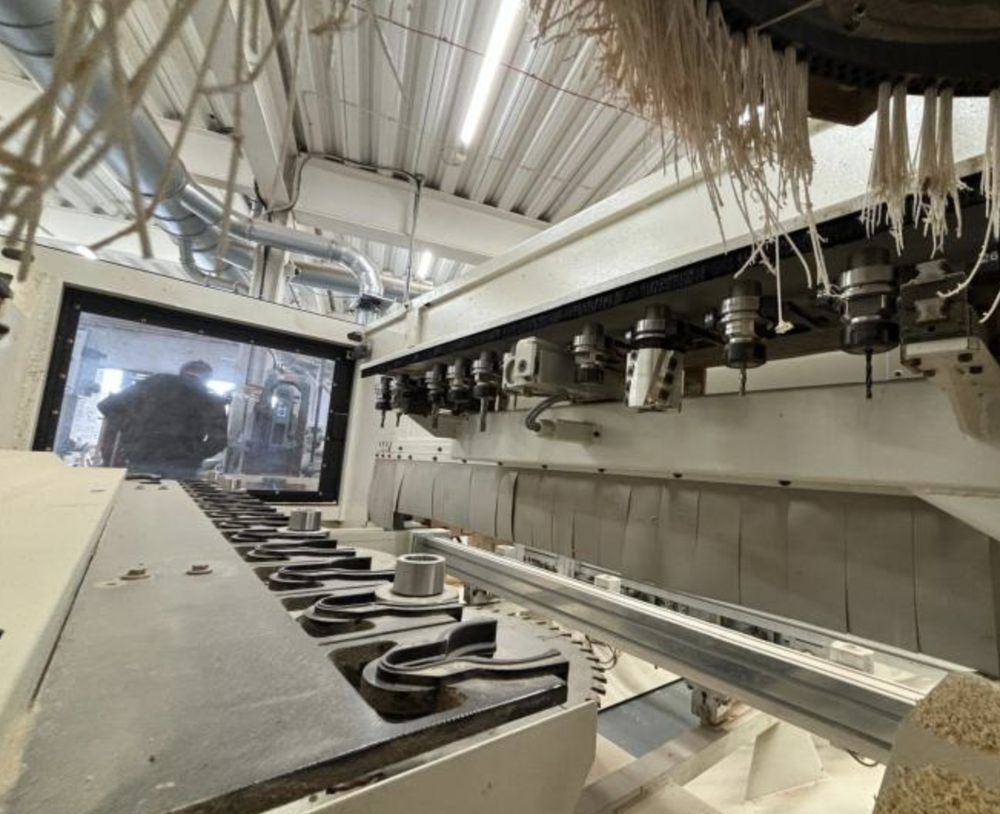

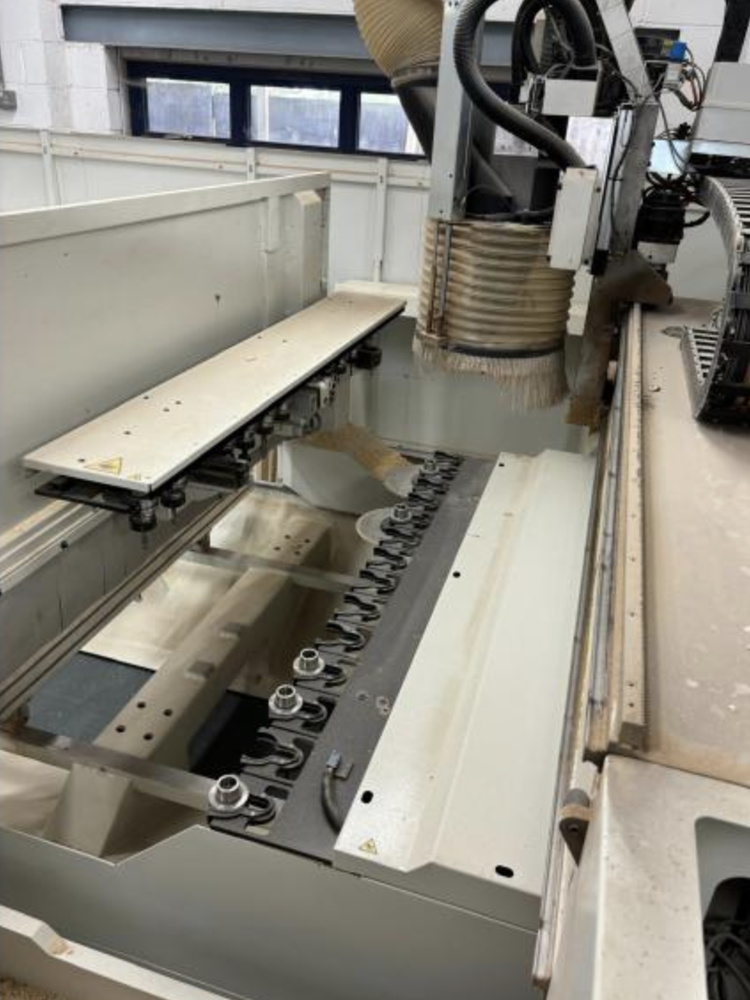

TBR14 linear tool changer (Y=1620 positions)
FAST14 linear tool changer
Air blower on electro spindle
Guard rails X-Y axes

Vacuum pump 150/300 m3/h
50/50 Hz

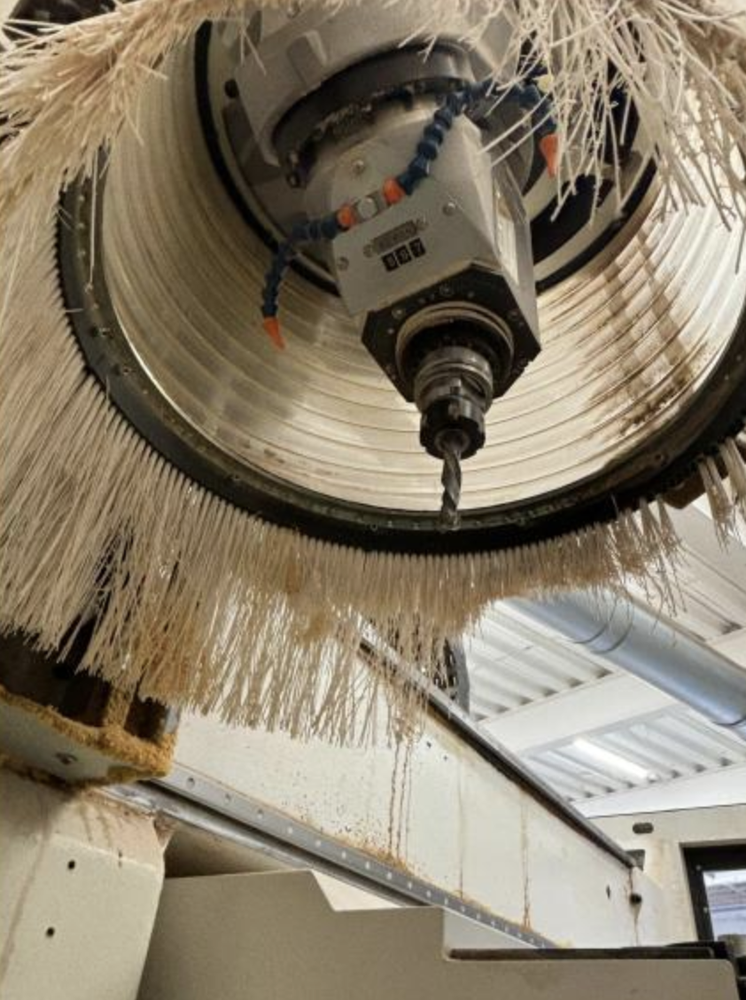

5-axis unit ‘JQX’ version, 13.5 kW

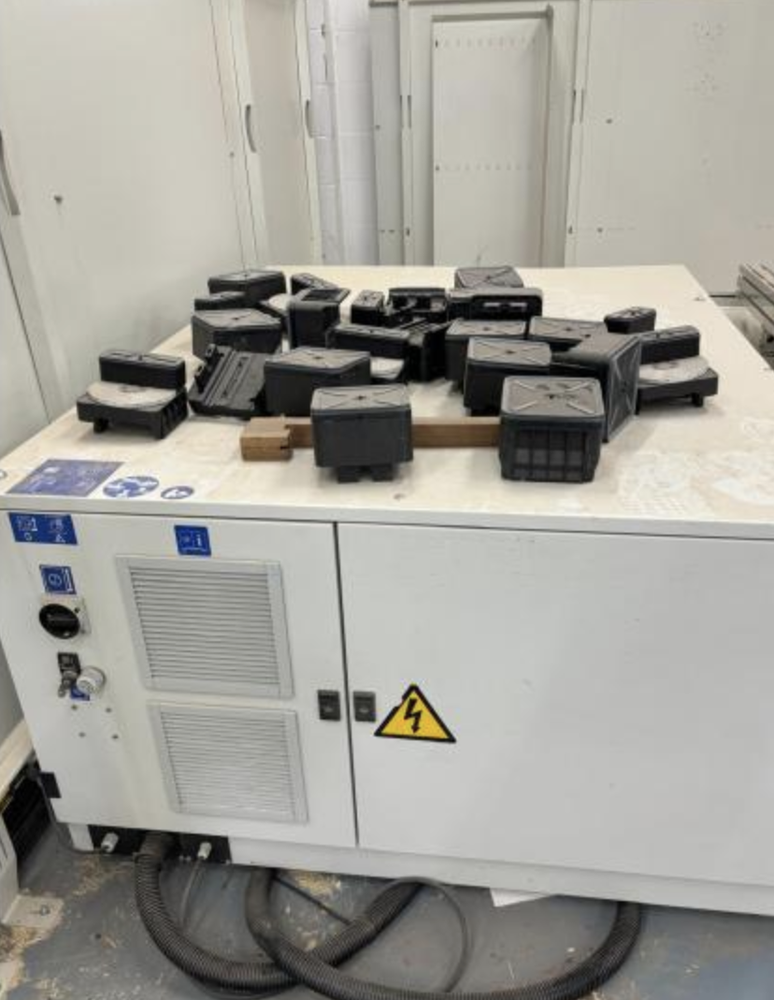

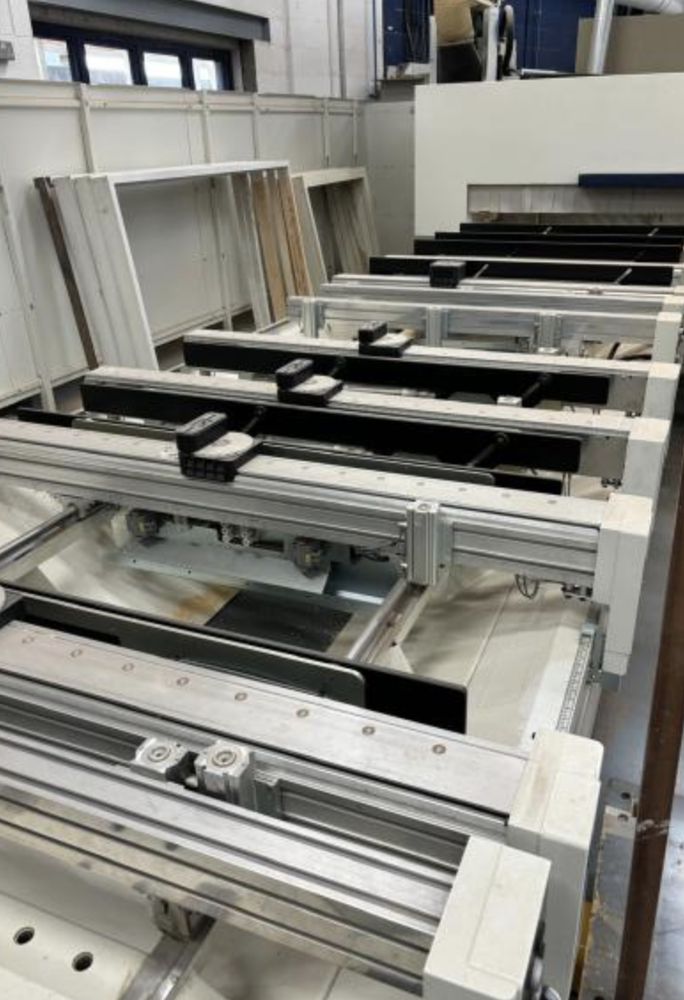

Fixed pod 145x145 H=75 mm
Rotating pod 145x55 H=75 mm

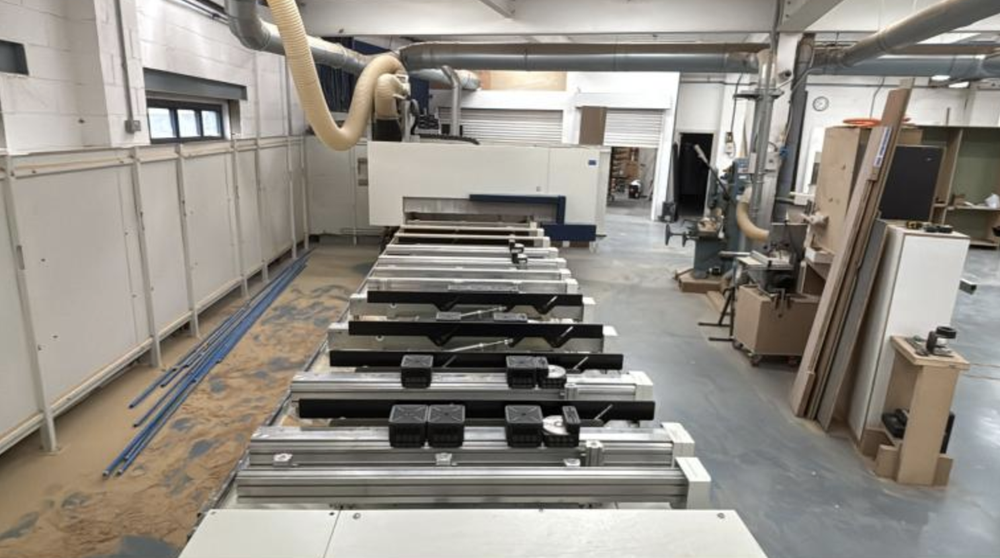

Clamp for 8 rails TV FLEX / TV FLEXDRIVE / TV FLEXMATIC
MULTIGRIP 90 round clamp (H83) for TV FLEX / TV FLEXMATIC

Maestro connect: 1 year (gateway kit ‘plug&play’ included)
SCM DIGITAL SOLUTIONS: MAESTRO CONNECT
MAESTRO ACTIVE human-machine interface software (HMI)
Maestro software for cnc programming
Hardware key for Maestro cnc
Advanced Maestro 3D module
Additional key for Maestro cnc (USB port)
Windows 10 embedded 64-bit operating system

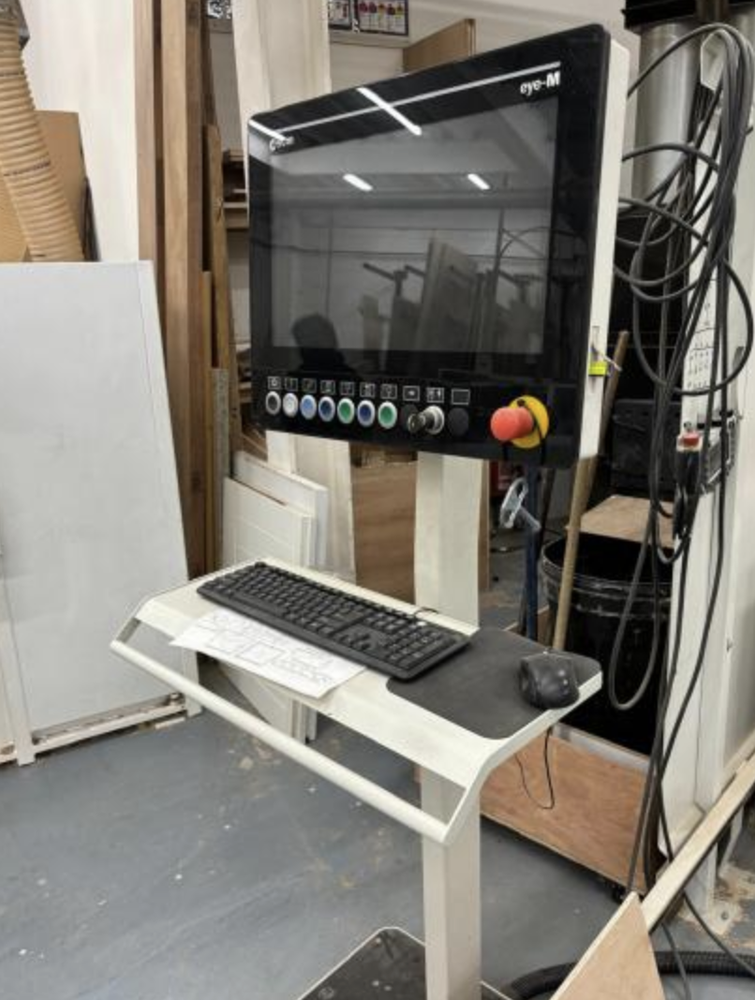

Console with integrated PC ‘eye-M PRO’

Axis movement
Maximum vectorial speed in rapid traverse XY axis 56 m/min
Stroke of the Z axis 180 mm

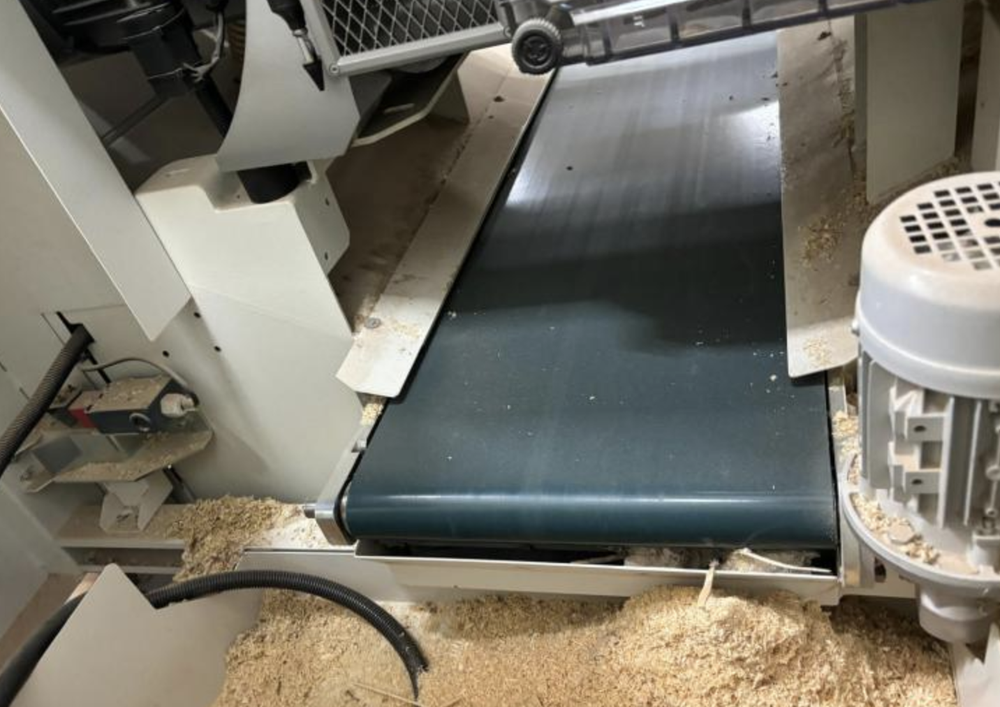

Routing unit
Motor power 5.5 kW
Speed 4000 rpm
Tool changer up to 44 locations

Drilling unit
Individual vertical spindles 21
Individual horizontal spindles 12
Speed 8000 rpm
Integrated saw blade diameter 125 mm

Air consumption 4430 m3/h
Air speed 25 m/sec
Connection diameter 250 mm
Total dimensions 9700x5020x2650 (LxWxH)
Machine available from 16-04-205
