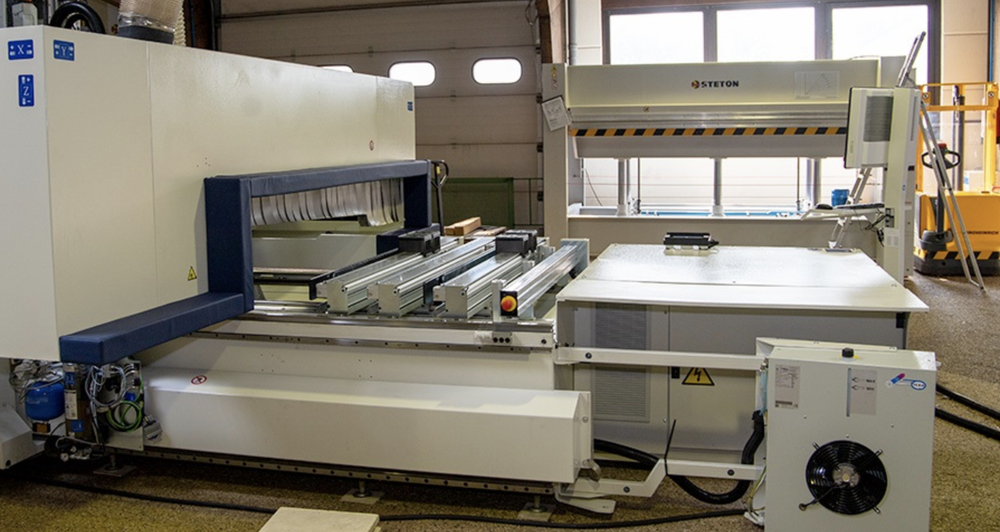

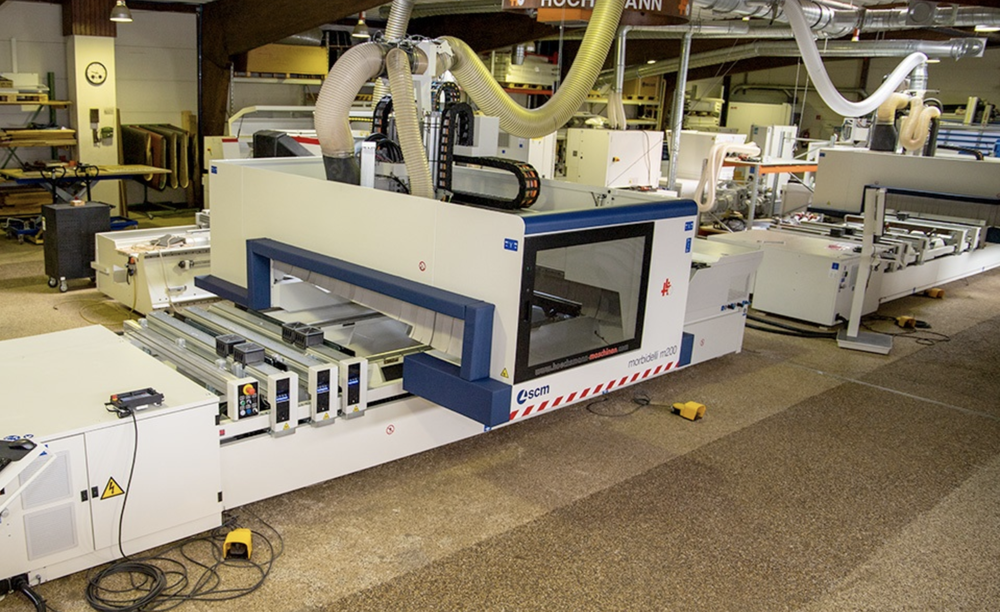

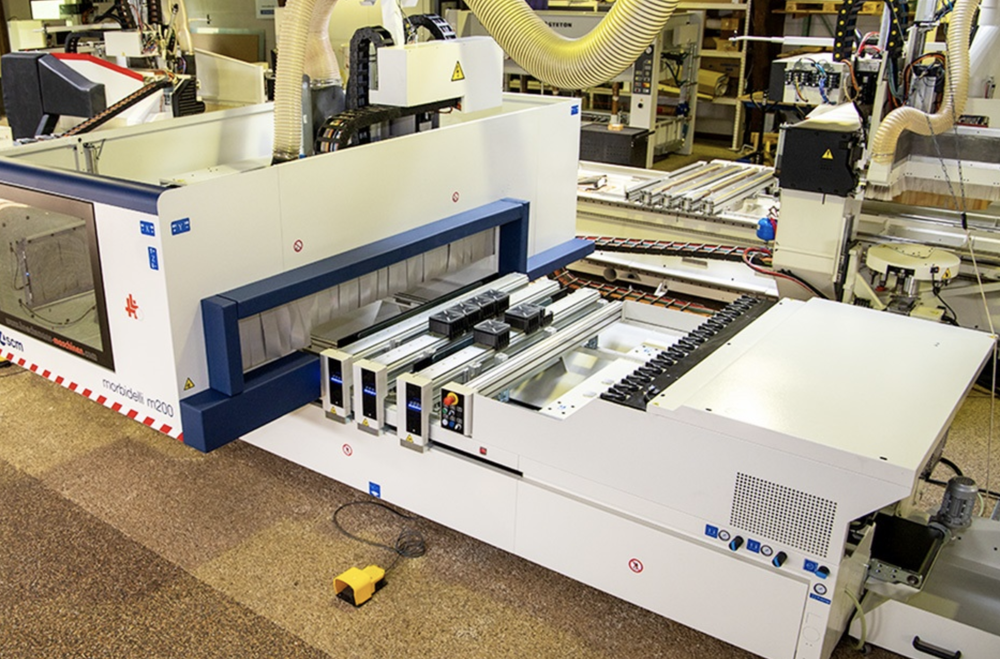

Morbidelli, SCM M200 Pro Space 5-axis

CNC workcenter 5-Achs CE Sign
used CNC machining center for wood and composites from a company resolution,
with Morbidelli "Prisma 5 - KT" 5-axis electrospindle, speed 1.500 to max 20. 000 rpm,
with liquid cooling and special exhaust hood, pressure booster, drilling unit F31LTC
with inverter with 21 drilling spindles vertical, 6 drilling spindles horizontal in X
and 4 horizontal in Y, integrated saw blade/grooving saw in X direction

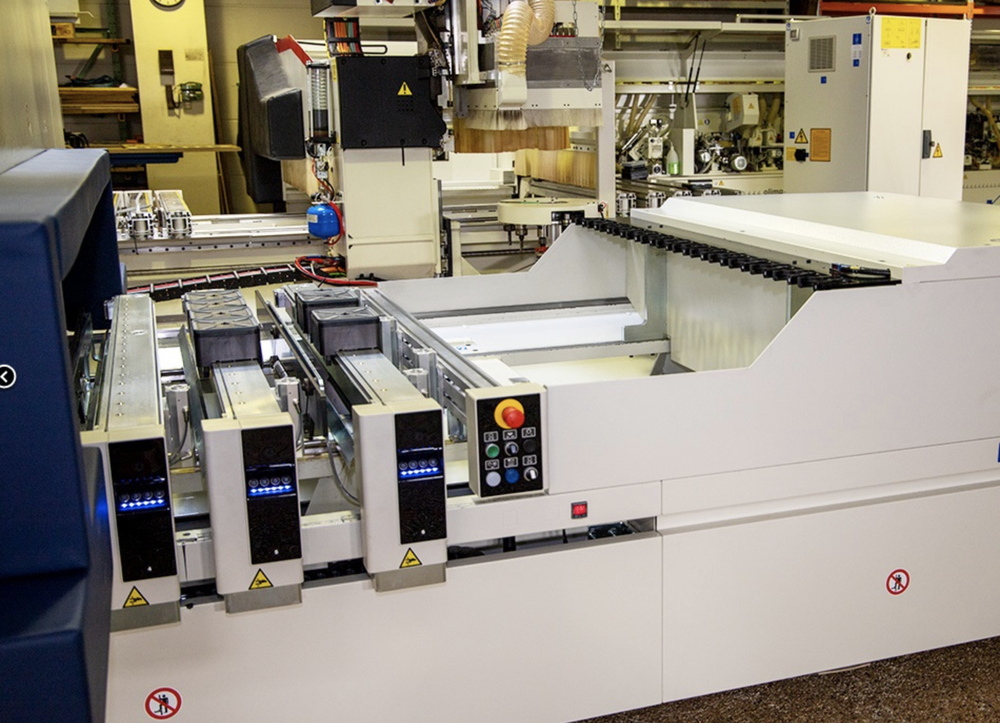

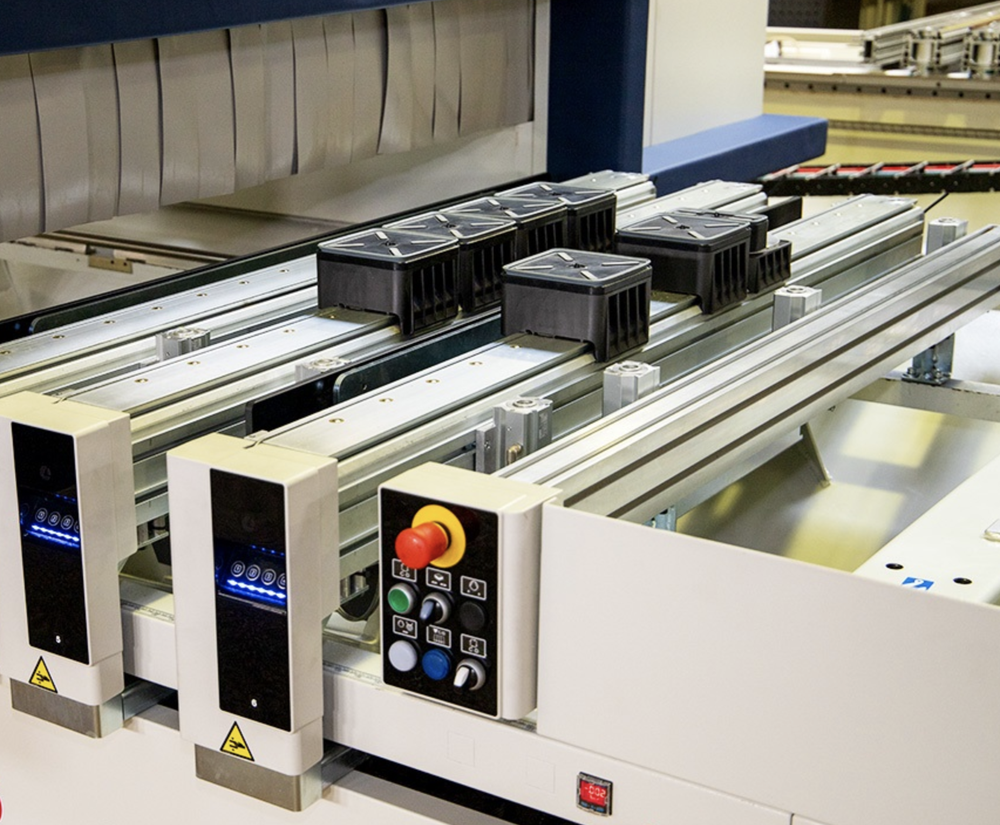

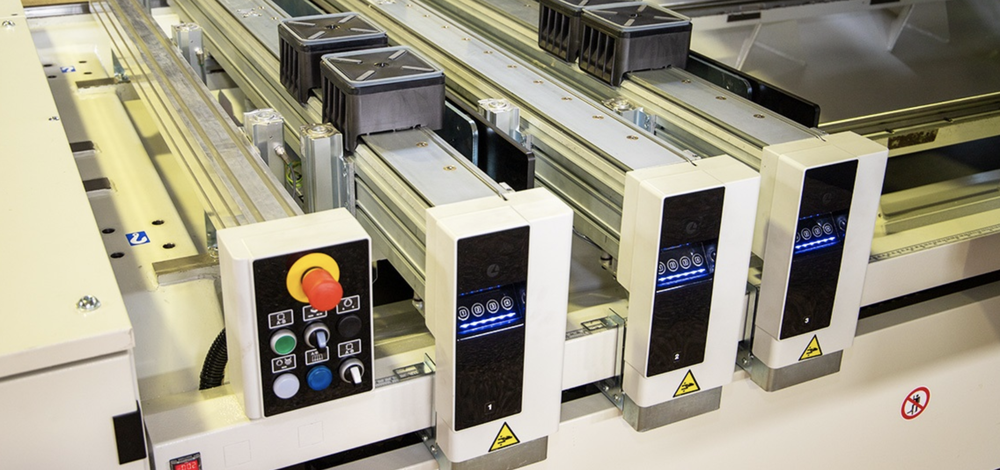

FLEXMATIC - TV table with automatic suction plate positioning,
with 6 crossbars with additional stops in front
Working range X=3. 710 mm Y=1.620 mm (workpiece passage 2.200 mm) Z=250 mm
Additional preparation for workpiece special clamping system for solid wood or similar

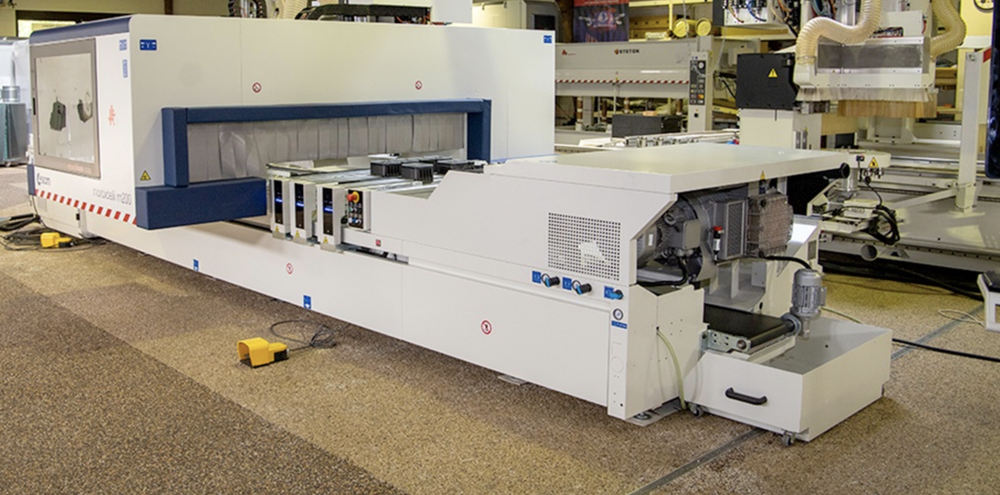

ProSpace version - 360° walkable and accessible from all sides as all components
as well as the vacuum pump are located inside the machine, without enclosure
and therefore placement in the smallest space possible, protective housing of the working units
with bumper system, sensor for automatic tool length measurement, 2 autom.
14-fold tool changer type TRB 14 and FAST 14 directly in the protective housing
(short distance to the milling spindle), new SCM eye-M Pro control/operator panel with current software
SCM MAESTRO ACTIVE CNC and the TechPad 2 (latest version)
Man-machine interface (software HMI), optional with Maestro 3D, S-N-D mode selector, dxf interface,

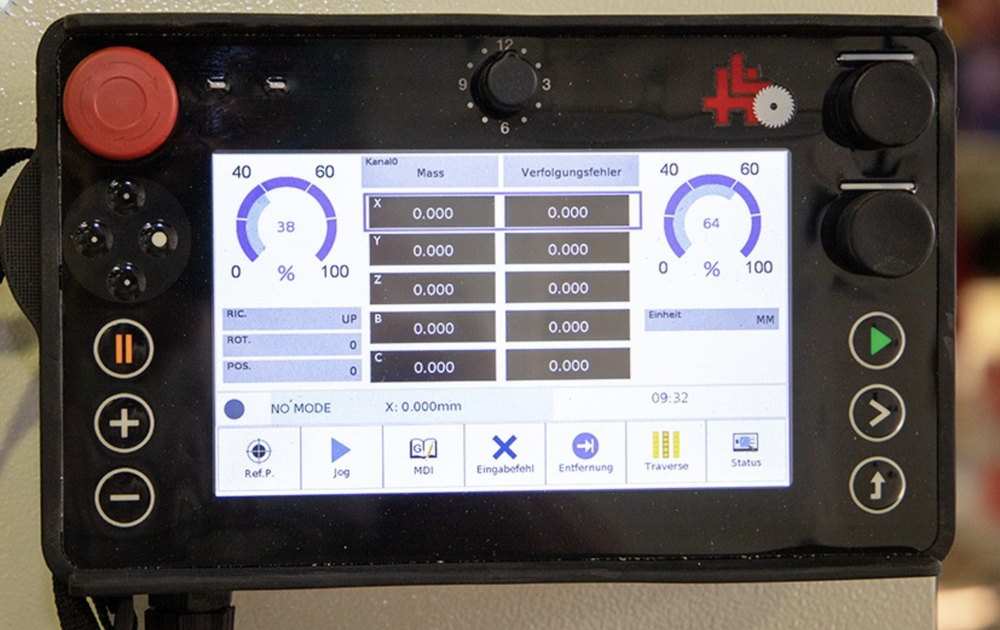

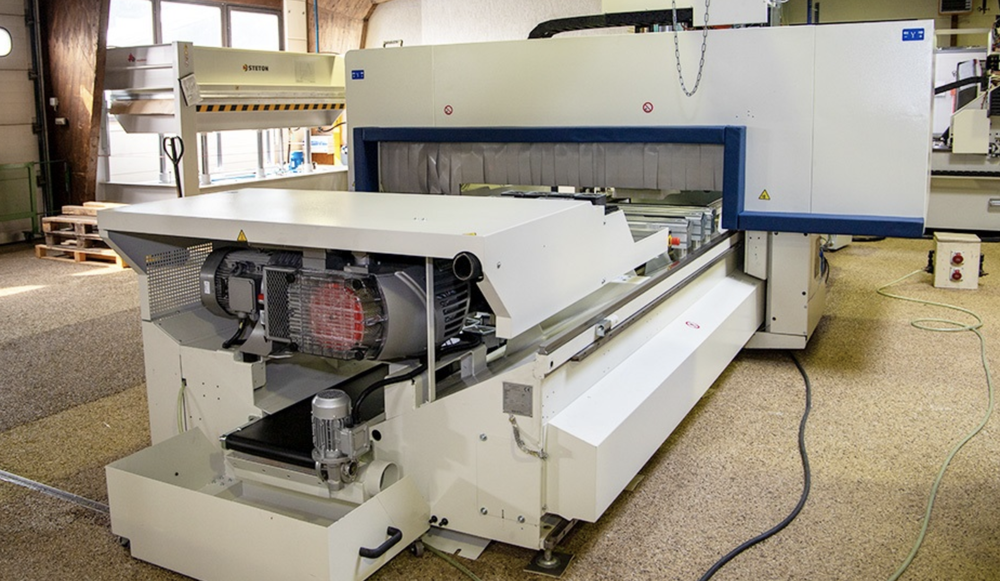

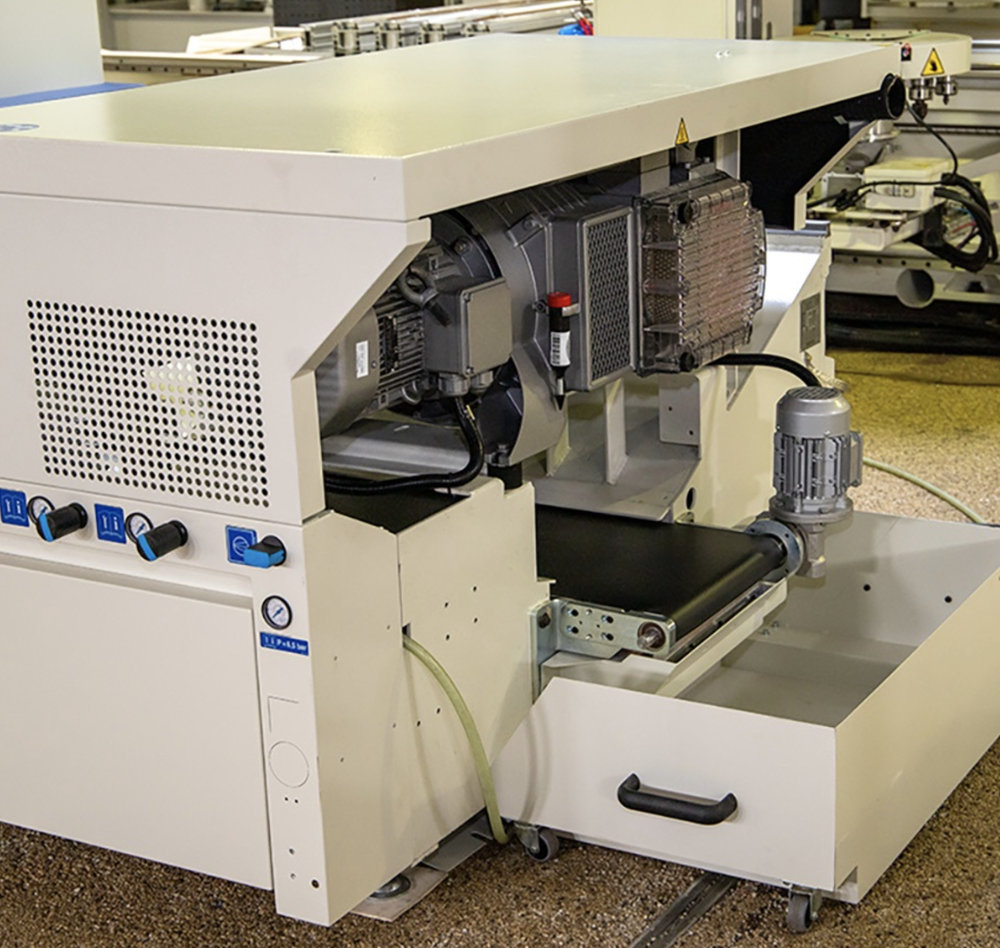

AV license, SCM TecPad 2 remote control with 7" touch screen, 250/300 m³/h vacuum pump, chip conveyor, and much more....
Machine has only approx. 330 h operating hours, condition absolutely like new,
no signs of wear or defects, ready for demonstration, weight ~ 6.000 kg
