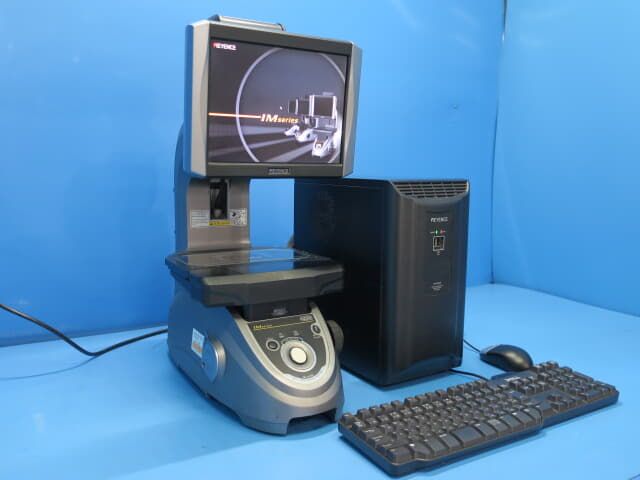

Keyence IM-6600 [IM-6120]

Specifications
・Controller: IM-6600
・Measuring Head: IM-6120
・Image Sensor: 6.6 Megapixel CMOS (Monochrome)
・Display: 10.4-inch LCD color monitor
・Field of View: φ100×L200mm (Wide Field of View Measurement Mode),
□25×L125mm (High Precision Measurement Mode)
・Minimum Display Unit: 0.1μm
・Measurement Accuracy: No Connection ±5μm
(Wide Field of View Measurement Mode), ±2μm (High Precision Measurement Mode)
With Connection ±(7 +0.02L)μm (wide-field measurement mode),
±(4+0.02L)μm (high-precision measurement mode)
-Lighting: Tele-eccentric transmitted light, 4-segment ring light
-Stage: X: 100mm (electric), Z-axis 20mm (electric)
-Load capacity: 2kg
-Power supply: AC100V-240V, 50/60Hz
-Weight: Approx. 8kg (controller), Approx. 28kg (measurement head)

Equipment status
No instruction manual
