IQF Spiral- tunnel- IQF- flow- blast- plate & belt freezers

Ref : 2705326-8-AW
Condition : Used
Manufacturer : IQF
Model : Spiral- tunnel- IQF- flow- blast- plate & belt freezers
Year(s) : 2008
Quantity : 1
Location : Seller or machines location:
EUROPE (Western and Northern)

Spiral- tunnel- IQF- flow- blast- plate & belt freezers
Year of Manufacture: 2008

Input/Output: North/North (can also be supplied in North/South configuration at an additional cost)
Input/output height with floor outside: ±1050mm/4975mm
Direction of tire rotation: counterclockwise
Belt type: Ashworth Advantage 200 acetal belting with stainless steel cross bars and product protection covers
Net belt width: 940mm
Bar height: 250mm
Maximum product height: 180mm
Number of tiers: 15.5
Effective belt length per tier: 19.41m
Total effective belt length: 300.85m
Belt area: 232.15m²
Drum drive direct (drive technology, gearboxes completely replaced/renewed in 2022)
Drum diameter: 4246.88mm
1 piece stainless steel freeze evaporator type DX with 6 pieces high pressure fans, each 6.6kW horizontal blowing
Evaporator fin pitch 40, 20, 10mm

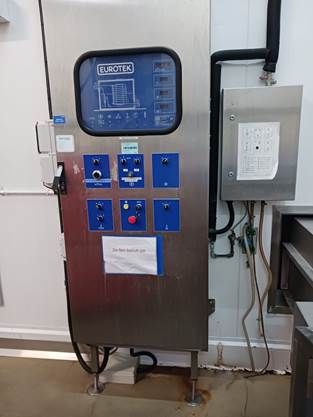

Stainless steel control box with original EUROTEK/GEA control system (if desired option for delivery of a new Siemens S7 PLC with Simatic touchscreen)
Defrost water / hot gas
Refrigeration system: R507 or R404A LPR using reverse cycle hot gas following 72 hours production
CIP cleaning system
Original stainless steel non-slip floor, with galvanized underfloor construction

Cooling capacity:240 kW/71 tons
Type of refrigerant:R507/R404A
Voltage:415 V
Absorbed power:42 kW
Dimensions (LxWxH): 10500 x 8200 x 5300 cm
