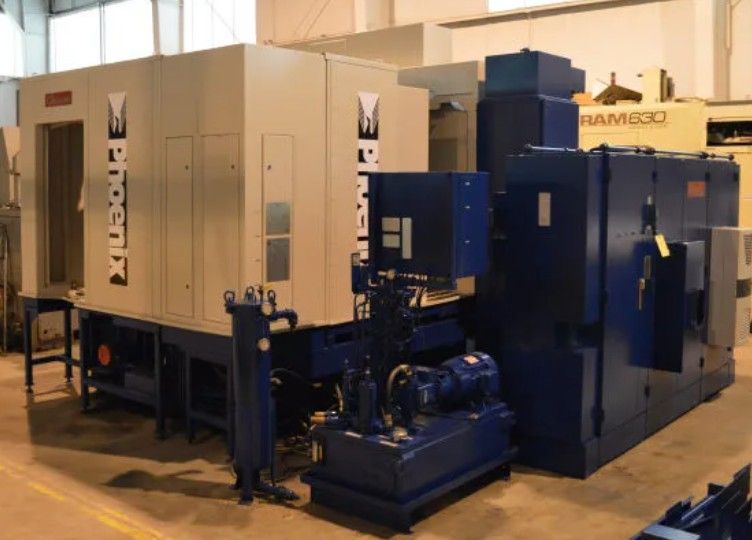

Gleason 500 HC 333 RPM CNC SPIRAL BEVEL GEAR GENERATOR

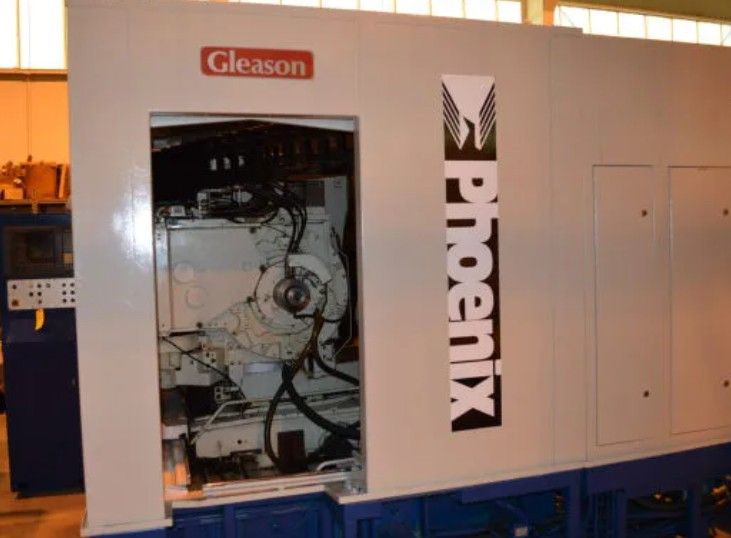

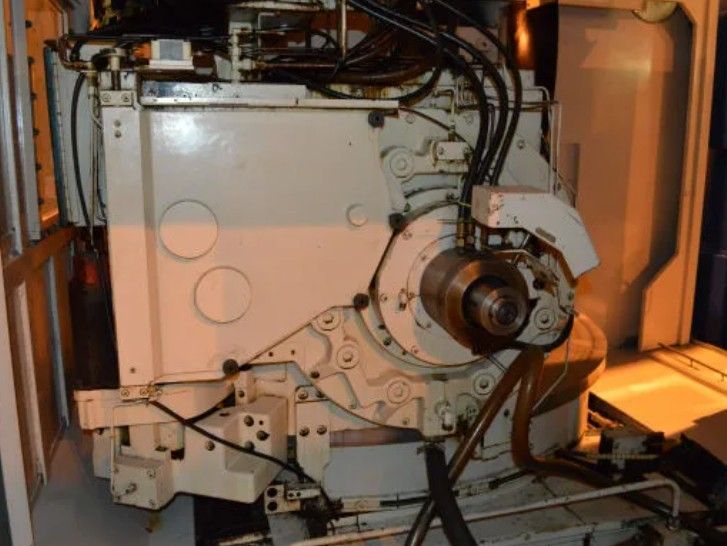

GLEASON "PHOENIX" #500 HC CNC SPIRAL BEVEL GEAR GENERATOR


SUITABLE FOR THE CUTTING OF SPIRAL BEVEL AND
HYPOID GEARS AND PINIONS UP TO 30” (762MM)
DIAMETER VIA “FACE-MILLING”, AND 22” (558.8MM)
VIA “FACE-HOBBING” METHOD UTILIZING THE TRI-AC
CUTTING SYSTEM


Root angle range (b axis) -5º TO 90º-5º TO 90º
Max horiz travel (-305MM TO +305MM)
Max vert travel (y) (-305MM TO +305MM)
Sliding base travel (z) (-51MM TO +711MM)
Machine center to work spindle face 9.00” (229MM)
Full depth (maximum) .93”(23.50MM)
Face width (maximum) 3.00”(76.20MM)
Tooth number 5 TO 200 INCLUSIVE
Cutter diameters (400,500MM)(350MM)
Work spindle, a-axis 0-67 RPM 0-333 RPM
Swinging base, b-axis 0 TO 30 DEG/SEC N/A
Cutter, c-axis 30 TO 240 RPM
X horizontal, x-axis 0 TO 80MM/SEC
Y vertical, y-axis 0 TO 80MM/SEC
Z sliding base, z-axis 0 TO 80MM/SEC
Diameter of taper hole at large end 8” (#80 TAPER)
Includes optional adapter sleeve to 6” (#60 TAPER)
Depth of taper 6” 152.40MM
A-axis work spindle ac servo 50.0 66.0
B-axis swinging base ac servo 4.4 5.9
C-axis cutter spindle ac drive 226.7 307.3
X-axis horizontal ac servo 8.7 11.8
Y-axis vertical ac servo 8.7 11.8
Z-axis sliding base ac servo 8.7 11.8
Coolant ac induction 5 HP
Hydraulc ac induction 5 HP
Chiller ac induction 3 HP
Chip conveyor ½ HP
Length x width (557CM X 576CM)
Height 127” (322CM)
Weight (approximately) 42,500 LBS(19,318 KGS)
