Doerries Scharmann Siemens 8T Max. 100 U/min CTE 320/3400 2 Axis CNC Turning Lathe

Ref : 1183440-3-W

Condition : Used

Manufacturer : Doerries Scharmann

Controller : Siemens 8T

Spindle Speed : Max. 100 U/min

Model : CTE 320/3400

Nb Of Axis : 2 Axis

Type : CNC Turning Lathe

Year(s) : 1981

Quantity : 1

Location : Seller or machines location:
EUROPE (Western and Northern)

Last check : 02 Sep. 2014

DOERRIES CTE 320/3400
Vertical Turret Lathe - Single Column
Year of construction 1981

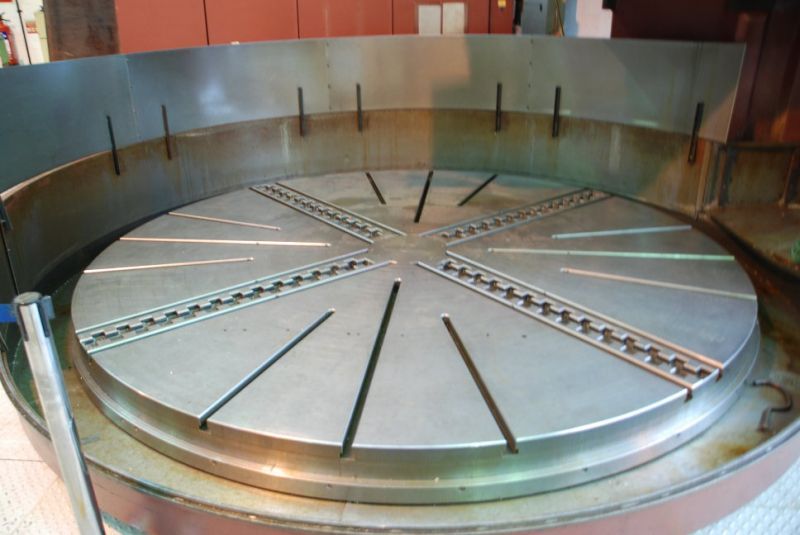

faceplate ø 3200 mm
swing ø 5100 mm
turning height 2500 mm
rapid travel range 6 m/min
control Siemens 8T
table load 60000 kg
cross rail adjustment 1500 mm
feed range 0,01-1000 mm/min
slide adjustment 2000 mm
tool change unit 16 Pos.
faceplate turning speed range -stepless- 0,8-100 U/min
max. ram stroke 1250 mm
total power requirement ---- kW
weight of the machine ca. 70 t
dimensions of the machine ca. 9,3x6,1x6,0 m

Accessories:
SIEMENS 8T CNC-control
Additionally at extra cost new electrics and a
new Siemens Sinumerik 840D control can be retrofitted.
