Doerries Scharmann CNC control Siemens Sinumerik 840 Di SL Max. 180 U/min Contumat VCE 2400/200 2 Axis CNC Vertical Turning Lathe

Ref : 1183398-3-W

Condition : Used

Manufacturer : Doerries Scharmann

Controller : CNC control Siemens Sinumerik 840 Di SL

Spindle Speed : Max. 180 U/min

Model : Contumat VCE 2400/200

Nb Of Axis : 2 Axis

Type : CNC Vertical Turning Lathe

Year(s) : 1989

Quantity : 1

Location : Seller or machines location:
EUROPE (Western and Northern)

Last check : 02 Sep. 2014

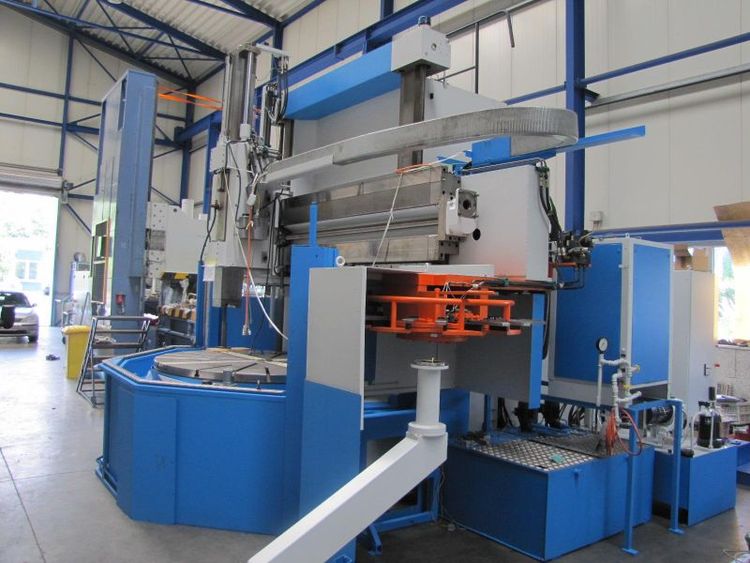

DOERRIES-SCHARMANN Contumat VCE 2400/200
Vertical Turret Lathe - Single Column
Year of construction 1989/2012

faceplate ø 2000 mm
swing ø 2400 mm
turning height 1500 mm
cross rail adjustment 1100 mm
z-axis 1000 mm
rapid travel range 6 m/min
torque 63000 Nm
adjustment speed of cross-rail 425 mm/min
feed range 1-6000 mm/min
faceplate turning speed range 1,6-180 U/min
total power requirement 135 kW
dimensions of the machine ca. 5,5x4,7x5,8 m

Accessories:
Machine has been retrofitted in 2012, with new
CNC control Siemens Sinumerik 840 Di SL,
new servo drives, new electric, ATC
