Cincinnati, Delta 72" x 7" x 55,000 Lb Slitting Line

Ref : 2394304-3-CP
Condition : Used
Manufacturer : Cincinnati, Delta
Model : 72" x 7" x 55,000 Lb
Short Description : Slitting Line
Year(s) : -
Quantity : 1
Location : Seller or machines location:
AMERICA North (USA-Canada-Mexico)

72" x 7" x 55,000 Lb DELTA / CINCINNATI Slitting Line


Weight Capacity: 55,000 Lbs.
Thickness Capacity, Mild Steel: .135"
Line Direction: Left to Right

CONSISTING OF:
DELTA Entry Coil Car:
L-Type
72" O.D.
5" Dia. Cam Rolls
Self-Contained Hydraulics

DELTA Model UN 346 Uncoiler:
78" Face Mandrel
18" to 24" Hydraulic Expansion
Pumpkin Tooth Mandrel
Snubber Roll with Hydraulic Drive Motor
Wichita Water Cooled Brake
5 HP AC Motor Threading Drive
Sliding Base with 8" Travel
500 FPM Max. Constant Speed

Peeler Table:

Hydraulic Cylinder Operated
Powered Up / Down and In / Out Movement

Driven Pinch Rolls:

84" Face Rolls
Hydraulic Cylinder Loaded

Entry Side Guides:

Powered Adjustment by Hydraulic Motor

Entry Crop Shear:

.187" Capacity Zip Shear
Hydraulic Cylinder Actuated

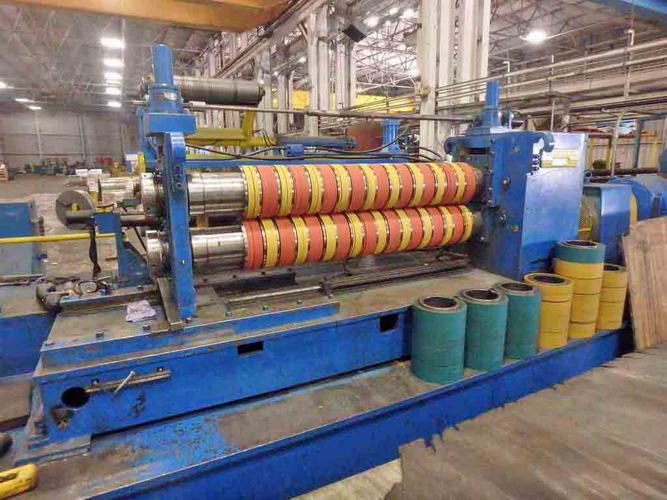

CINCINNATI Slitter Heads:

(2) Drop-In Heads
7" Dia. Arbors with Jet Nuts
Outboard Bearing Travels in Over the Arbors to
36" Wide
100 HP GE DC Motor, 500/2000 RPM, 500 V
Second Head has had Arbor Shafts Reworked and
Waiting for Reassembly

(2) Scrap Winders:

Hydraulic Motor Driven
Hydraulic Open / Close
Oscillate Wind

Threading Table:

Hydraulic Cylinder Operated

Pit Table:

10' Long Table
Hydraulic Cylinder Operated

Drag Tension Stand:

Entry Separator Tooling Bar
10" Wide Boards with Felt Pads
(3) 5" Bore Air Cylinders for Clamping Pressure

Driven Pinch Rolls:

Hydraulic Motor Powered
Rubber Covered Rolls

DELTA Precision Leveler:

9 Over 10
2.18" Dia. Work Rolls
7-Flights of Wedge Operated Backups
5-Flights Adjustable with Digital Readout Screen
and Joy Stock Controls
Spare Set of Rolls Ground and in Crate (2.16" Dia.)

Exit Tach Rolls:

5" Dia. x 84" Face Rolls, Rubber Covered
(Spare Rolls Still Paper Wrapped)

Exit Crop Shear:

.187" Capacity Zip Shear
Hydraulic Cylinder Actuated

Threading Table:

Lift and Extend Style
Hydraulic Cylinder Actuated

DELTA Model RC 3322 Recoiler:

20" Dia. x 85" Face Drum
Bolt on Pads for 24" I.D.
Manual Grip and Expansion
Hydraulic Pushoff
Overarm Separator with 4.5" Dia. x 84" Tooling Bar
10" Bore Air Cylinder Lift
300 HP Reliance DC Motor, 300/1500 RPM, 500 V
Alton Gear Reducer, Rated at 500 HP with
2.21 Serv. Factor, Reduction Ratio 11.33:1
Digital Controls

Exit Coil Car:

L-Style
79" Wide Platform
Coil Stabilizer Arms
Self-Contained Hydraulics

Exit Turnstile:

(3) C-Hook Type Arms
Powered Rotation
Hydraulic Push-Off

Tooling:

(2) Full Sets of Tooling
