ZEISS Otopront Oral Consultation Suite

Ref : 2707066-13-CP
Condition : Used
Manufacturer : ZEISS
Model : Otopront Oral Consultation Suite
Year(s) : 2017
Quantity : 1
Location : Seller or machines location:
EUROPE (Western and Northern)

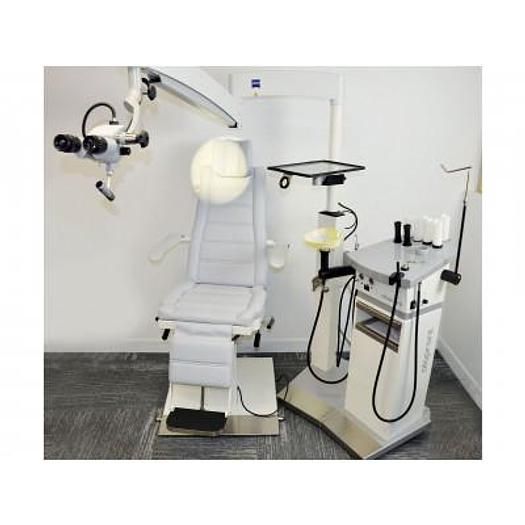

INCLUDING :

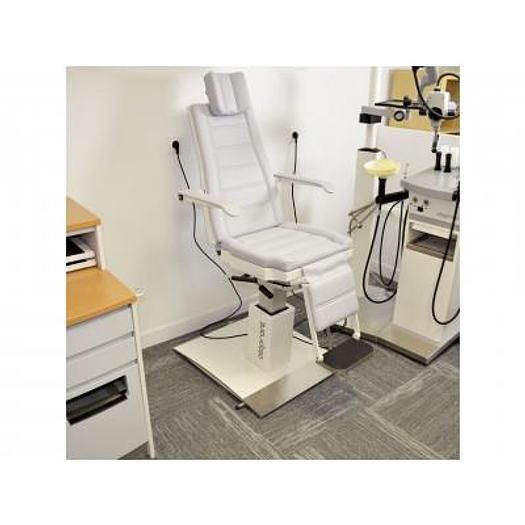

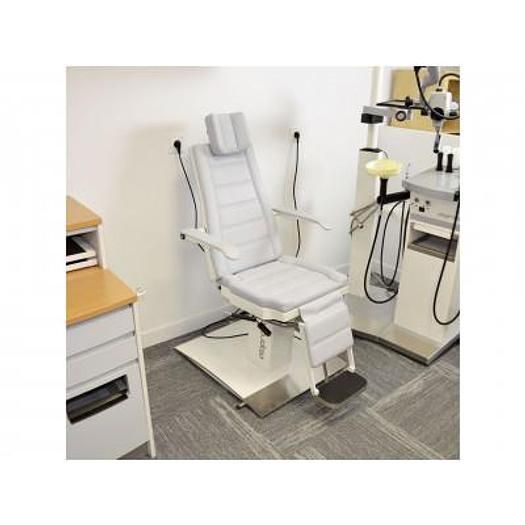

- 1 OTOPRONT Sit 4 Plus chair year 2017
- 1 ZEISS OPMI PICO ENT surgery microscope coupled with OP-MOBIL OTOPRONT SMART workstation year 2017

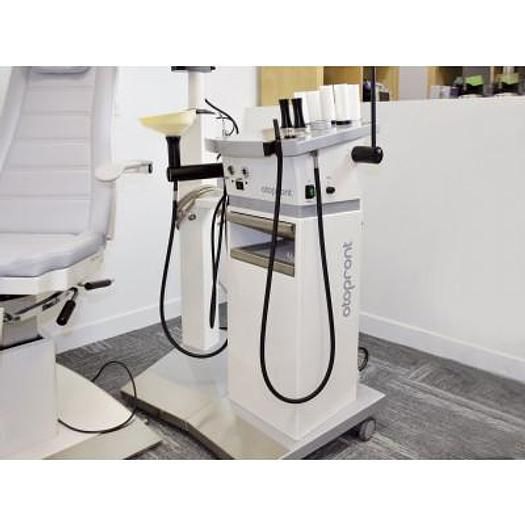

The OTOPRONT SMART consultation unit has been developed for
the diagnosis and therapy of otorhinolaryngeal diseases.
It is designed for suctioning secretions, spraying medications and
other liquids, politzer treatment, ear rinsing, and the treatment of
ear infections, ear rinsing, cold light supply for
endoscopic applications and preheating of instruments and endoscopes.

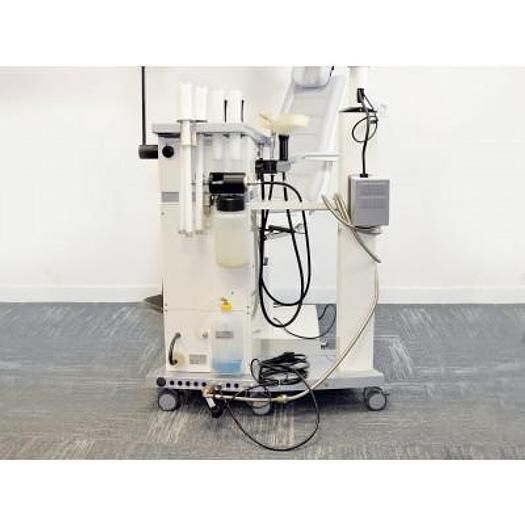

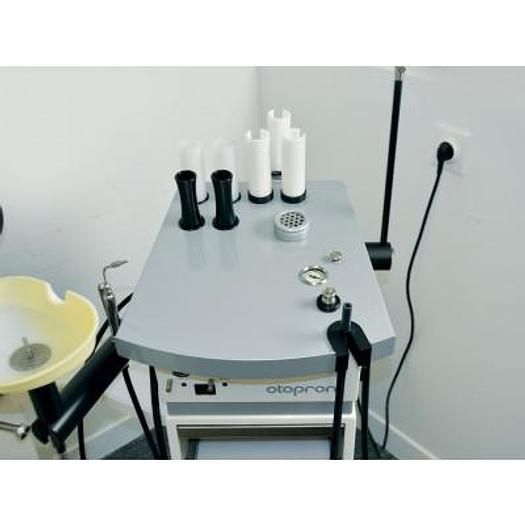

MAIN FEATURES OF THE OTOPRONT UNIT
- Various pump types can be selected
(dry-running, piston pump or lubricated oil pump)
- Suction hose rinsing system
- Automatic emptying of suction jar
- 38°C hot-water rinsing system with autoclavable filter
- Mirror heater
- Upper instrument tray, 2 levels, with Plexiglas cover
- Instrument drawer
- Sliding tray with integrated paper roll

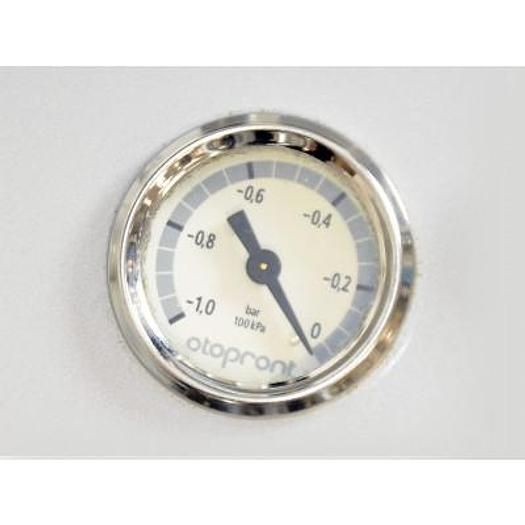

- Suction system with vibration-free vacuum pump,
smooth operation, 58 l / min, max. 91% vacuum
- Double storage drawer
- Open compartment with electrical socket for additional equipment

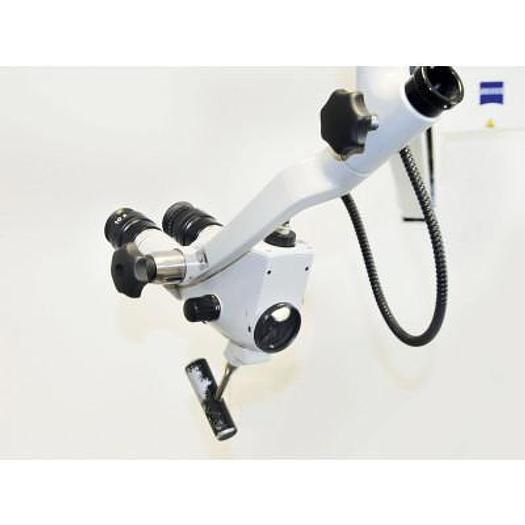

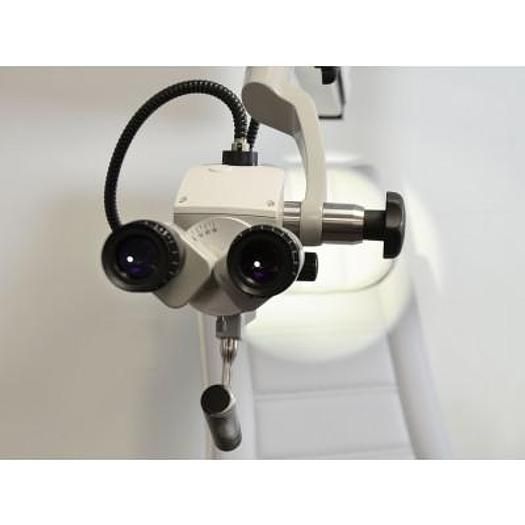

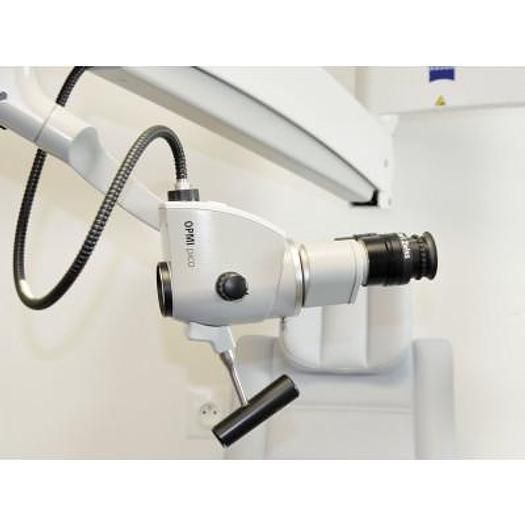

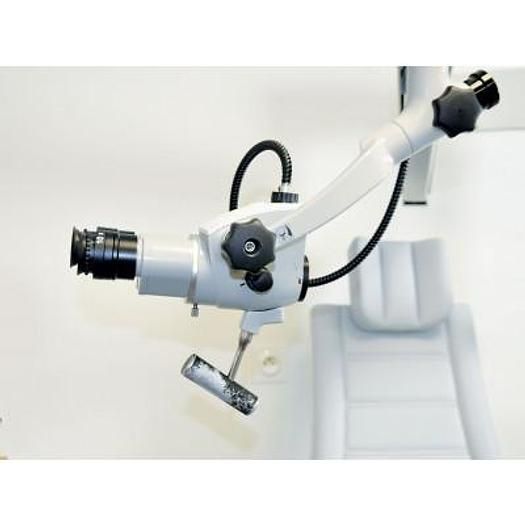

OPMI PICO ORL TECHNICAL FEATURES
Magnification system :
- Manual apochromatic magnification changer
Tubes:
- Binocular tube inclined at 45°, f = 170 mm
- Binocular tube tiltable from 0° to 180°; f = 170 or f = 200 mm (optional)
Eyepieces :
12.5x and 10x wide-angle eyepieces, also usable by spectacle wearers
Magnification range :
Example with 250 mm objective and 12.5x eyepieces. Magnification/field of view diameter :
3.4x 5.1x 8.5x 13.6x 21.3x 65 mm 43 mm 26 mm 16 mm 10 mm
Focusing :
- Manual focus within a 13 mm range
- 3 focusing objectives available: f = 200 mm, f = 250 mm, f = 300 mm,
interchangeable
Microscope stand, mobility :
Microscope body suitable for S100 suspension systems via
- 120° coupling
- Opto-mechanical rotating assembly
- OPMI pico microscope rotary coupling with +/-25° swivel range
- Integral ring diaphragm, can be inserted to increase depth of field
- EP-protected under patent no. 1420280

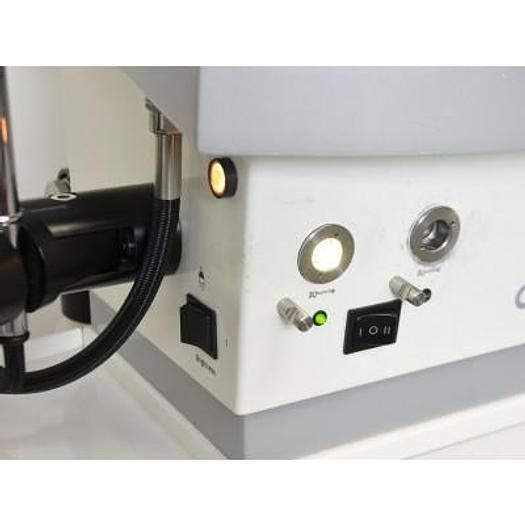

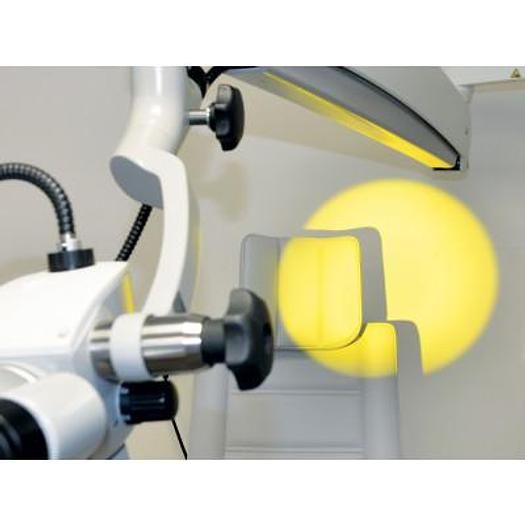

Lighting systems :
- Integrated coaxial cold-light illuminator
- Brightness control knob located just above the viewing tube
- Integrated 12 V 100 W halogen illuminator with 2 halogen reflector lamps,
housed in quick-change module
Electrical data
- Rated voltage: 115 V a.c. (100...120 V a.c. ± 10% );
230 V a.c. (220...240 V a.c. ± 10% )
- Current consumption, halogen lighting: 115 V a.c. max. 2.0 A;
230 V a.c. max. 1.0 A
- Current consumption, xenon lighting: 115 VAC max. 5.0 A;
230 VAC max. 2.5 A
- Fuses, halogen lighting: 115 V a.c. T 6.3 A/H 250 V;
230 V a.c. T 3.15 A/H 250 V
