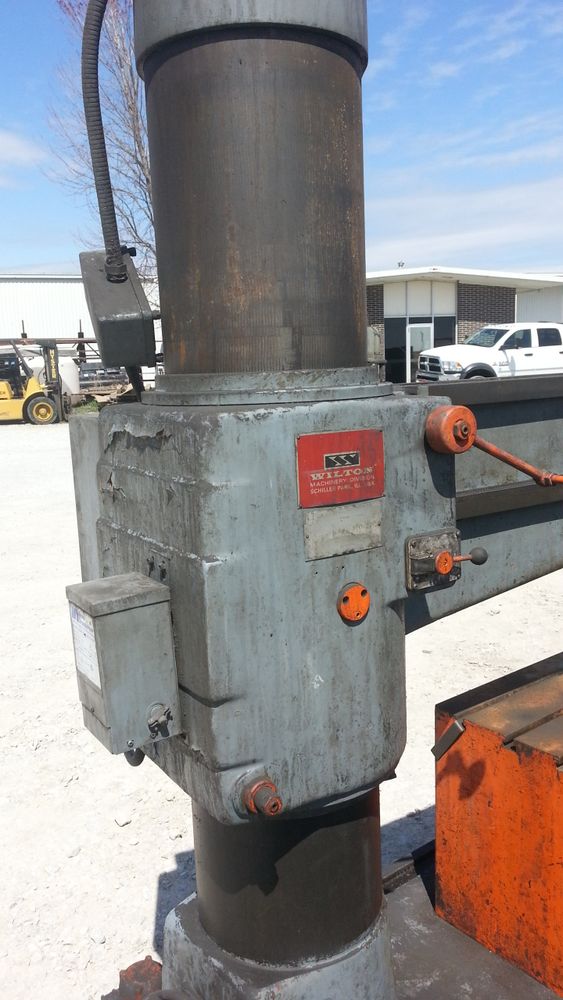

Wilton 1248 1750 RPM

WILTON 1248

SPECIFICATIONS: COLUMN DIAMETER --------------- 12 in
SPINDLE TO COLUMN MAX --------- 40 in
SPINDLE TO COLUMN MIN --------- 7 in
SPINDLE TRAVEL ALONG ARM (TOTAL)33 in
BASE SURFACE TO SPINDLE MAX --- 48 in
BASE SURFACE TO SPINDLE MIN --- 14 in
ARM MOVEMENT UP AND DOWN COLUMN 20 in
BOX TABLE DIMENSIONS ---------- 25-1/2 in X 16-3/8 in X 19-1/2 in
BASE DIMENSIONS --------------- 32 in X 74 in X 16 in
SPINDLE TAPER ----------------- #4
SPINDLE TRAVEL ---------------- 10 in
SPINDLE SPEEDS ---------------- (12) 42-1750 RPM
SPINDLE FEEDS ----------------- 0.002 in - 0.0138 in
MOTOR ------------------------- 3 HP
ARM RAISING MOTOR ------------- 3/4 HP
COOLANT PUMP MOTOR ------------ .12 HP
CAPACITIES -------------------- 1-3/8 in (STEEL)
MACHINE HEIGHT ---------------- 90 in
MACHINE WEIGHT ---------------- 5,500 LBS
