Weber SSG 400

Program-controlled automatic grinding device for wet-ginding of
sickle shaped Weber-knives (max. blade length 650 mm)
angular adjustment of grinding disc 22°, 26°, 28° and 32°
sharpening disc 50 x 25 x 20 mm
grinding disc 100 x 40 x 50 mm

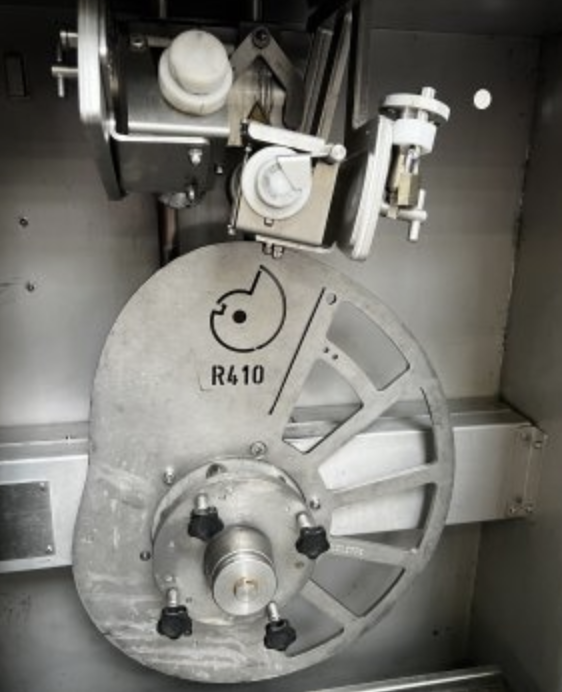

including cam disk for Weber sickle knives with a distance
centre of rotor to cutting edge 410 mm (71516776)
drive: transmission-brake-motor
electric: 400 Volt, 50 Cycles, approx. 0,25 kW, 16 A
machine dimensions: approx. 1.100 x 510 x 1.770 mm
(Width x Depth x Height)
weight: approx. 300 kg
