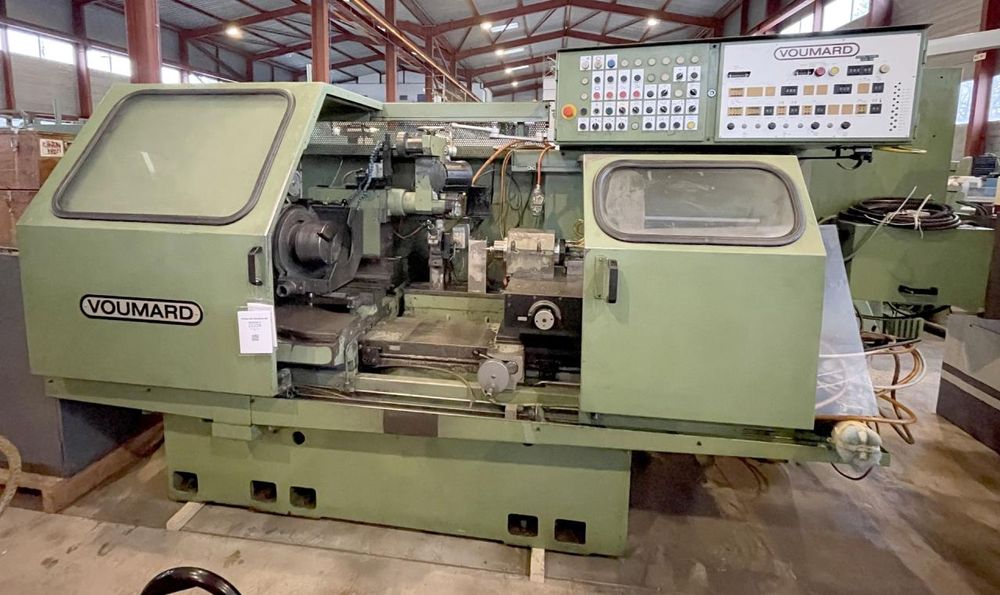

Voumard 203 L6

Internal grinding machine
VOUMARD 203 L6

Min. internal grinding diameter
5 mm
Max. internal grinding diameter
120 mm
Grinding depth
160 mm
Centre height
130 mm
Workpiece spindle speeds:
number (steps)
6
from
150 rpm
up to
1500 rpm
Max. angle
0 - 45 °
Spindle hole
30 mm
Grinding table travel:
min.
2 mm
max
550 mm
Table speeds:
stepless
from
0 m/min
up to
20 m/min
Voltage 50 Hz 3x
380 Volt
Drive for internal grinding spindle
9 kW
Machine's weight about
1500 kg
Overall dimensions machine:
Length
2200 mm
Width
1700 mm
Height
1800 mm
Various accessories:
3-jaw chuck
Set of jaws hard
Coolant system
Paper filter facility
Internal grinding spindle:
number
2
max. speed
36000 rpm
max. speed
60000 rpm
Set of grinding arbor
Three-jaw bezel folds open
Lamp
