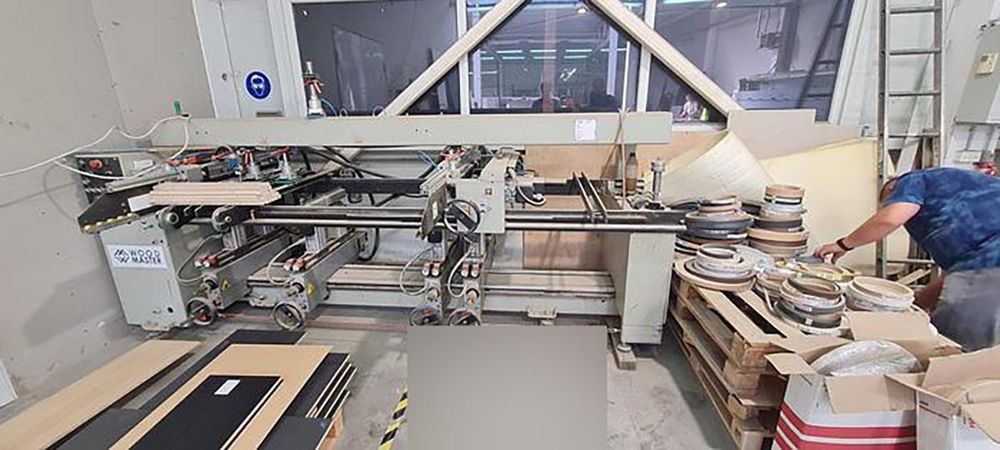

Vitap SIGMA 2TA

Multi support drilling system for line and dowel drillings
Feed-through line – yes
Drilling supports from below – 4
Horizontal drilling supports – 2
Drilling block positionin gmanually
Working width max2.500 mm
Working depth700 mm
Passage height max 40 mm
Grid 32 mm – yes
Drilling blocks per support – 2
Number of clamping bridges 2
Pneumatic top pressure
Drilling support positioning – manually
Drilling bars 90° pivotable
Drilling spindles per support – 2
CE marking – yes
Weight 1.600 kg
