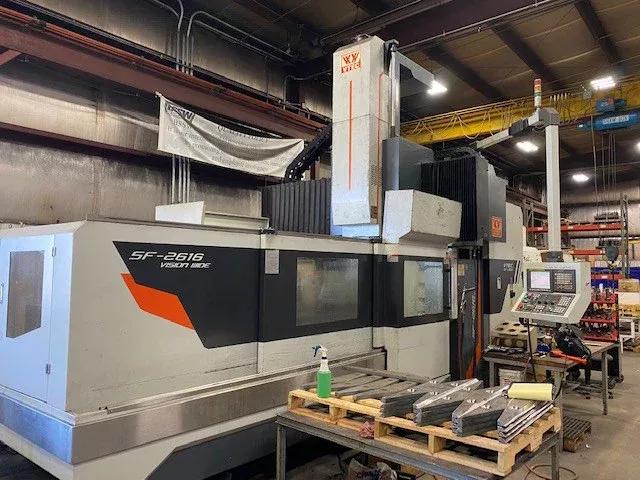

Visionwide SF 2616 3 Axis
Ref :
2426768-3-AW
Condition :
Used
Manufacturer :
Visionwide
Model :
SF 2616
Nb Of Axis :
3 Axis
Year(s) :
2014
Quantity :
1
Location :
Seller or machines location:
AMERICA North (USA-Canada-Mexico)
AMERICA North (USA-Canada-Mexico)
Vision Wide SF 2616
Year 2014
Number Of Tables 1
Table Size 98.4" X 59"
Table Load Capacity 9,000 LBS.
Distance Between Columns 66.9"
Spindle Nose To Table 7.2" ~ 37.9"
X - Axis Travel 102"
Y - Axis Travel 62.9"
Z - Axis Travel 31.4"
Rapid Traverse X, Y, Z 945, 945, 591 IPM
Cutting Feed Rate 1 - 393 IPM
Spindle Speed 10,000 RPM
Spindle Taper #50 CT
Main Motor 35 HP
Automatic Tool Changer 40 ATC
Tool Diameter 4.9", 7.08"
Tool Length 16"
Tool Weight 39.6 Lbs.
Machine Weight 56,100 Lbs.
Equipped with
FANUC OIMD CNC CONTROL
CHIP CONVEYOR
COOLANT THRU SPINDLE
RIGID TAPPING
BRIDGE TYPE CONSTRUCTION
