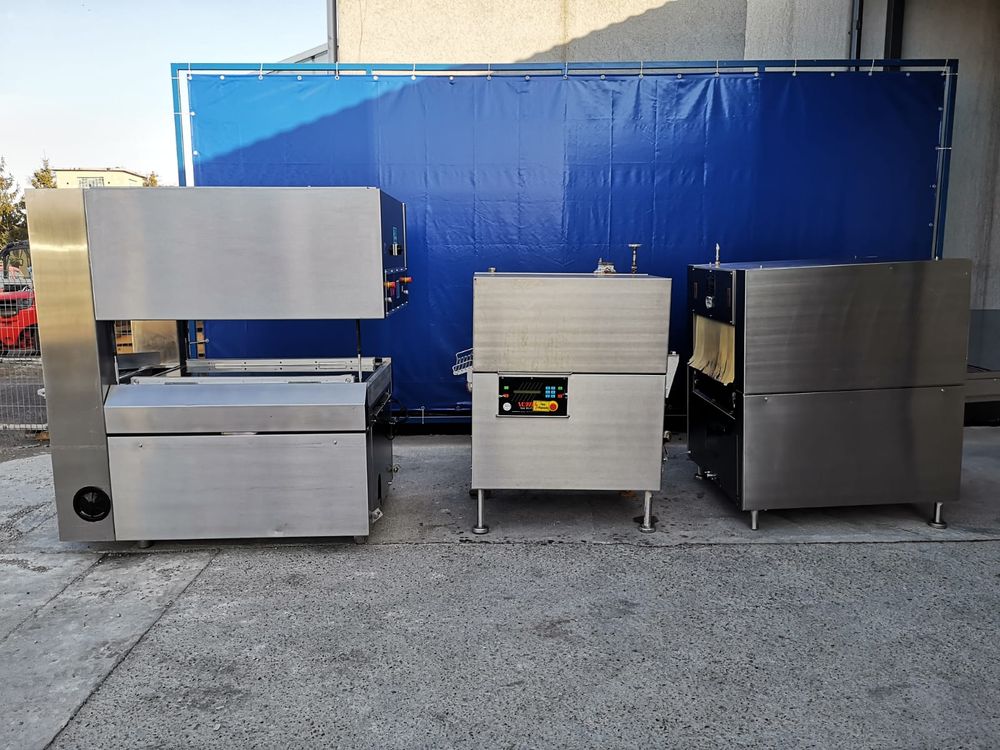

VC999 85.47i, Packing and Shrinking Line

The K8 is the ideal vacuum packaging machine for large industrial operations.
It is compactly built, powerful and flexible in use.
In the system with the matching shrink tank and dryer,
a fully automatic vacuum shrink line with maximum performance is created.
Height-adjustable sealing bar with bi-active seal
High contact pressure for reliable sealing even with wrinkles, grease, wetness
Bag overhang is automatically cut off and sucked off
Simple user guidance with PLC control
Driven discharge rollers
Sealing bar length 1210+1210 mm
Distance between sealing bars 715 mm
Welding bar heights adjustable 10-100 mm
Max. Product height (standard) 280 (< 370) mm
Machine outside dimensions 3350×1200×1955 mm
Vacuum pump volume flow 220+220 m³/h
Cycle output 2-3 cycles/min.

Electrical heating: 20.5kW (30.5kW)
Water connection: R ½” outside
Steam heating: 6 – 8bar / 0.5kW / R ½” outside
Compressed air: 6 – 8 bar
Steam exhaust: Ø 160 mm outside
Volume of water: 210 l
Water discharge: R1 ¼”
Compressed air: 17 NI /stroke
Product space: 460 x 900 x 250 mm
Capacity: ≤ 8 Cycles/min
Dipping time: ≥ 1 sec.
