UHLMANN B 1240, Blister Machine
EUROPE (Western and Northern)
• Set up for ALU/PVC and ALU/ALU operation
• Format range blister (W x L) min 50 x 22 mm / max. 156 x 115 mm
• Drawing depth max. 10 mm
• Output 15 - 55 forming cycles/min
• Transport length 42-115 mm
• Film width 100-168 mm
• Forming film Ø max. 450 mm, core Ø 76 mm (PVC) / 150 mm (ALU), mech. clamping
• Cover film-Ø max. 240mm, core-Ø 76 mm, mech. tensioning
• Splice Detection
• Film feed after forming and sealing
• Print mark control
• Film stretching unit

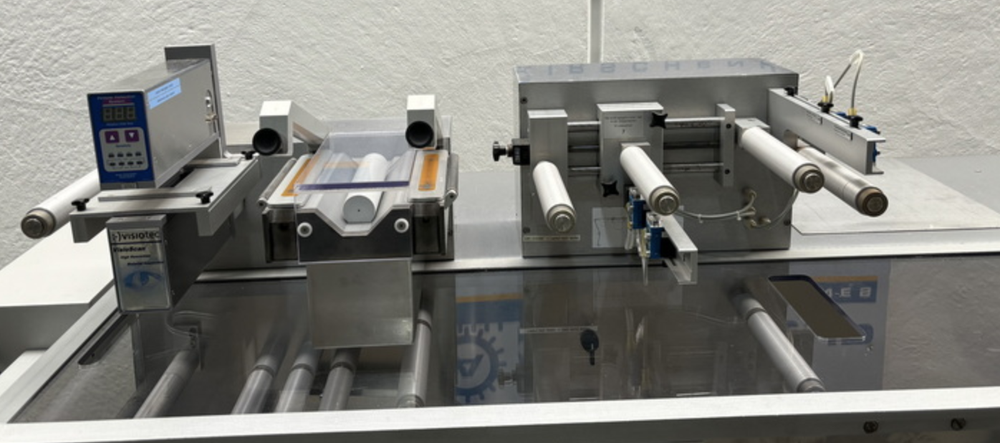

• Pin hole detection for form foil and lid foil, Visiotec VisioScan MT-160/200
• Heating plate station for PVC
• Forming station with compressed air for PVC form foil, pre-equipped for pre-stretching die
• Mechanical forming station for ALU forming foil
• Filling control VisioChrom HR 302A1 with own UPS
• Perforating station (heated) for scoring the forming film between the products to facilitate tearing off
• Product feed, dedicated feeder, Uhlmann SimTab type 2.1. model 2000, for tablets/capsules
• Without bad blister reject, is pre-equipped in the control system with ejection counter-check. Can be retrofitted on request at extra cost.
• Only 5,881 operating hours
• Drive 400V/50Hz
