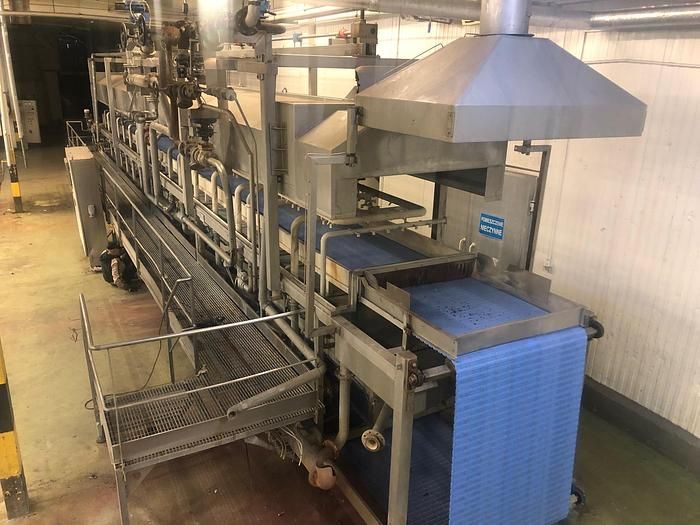

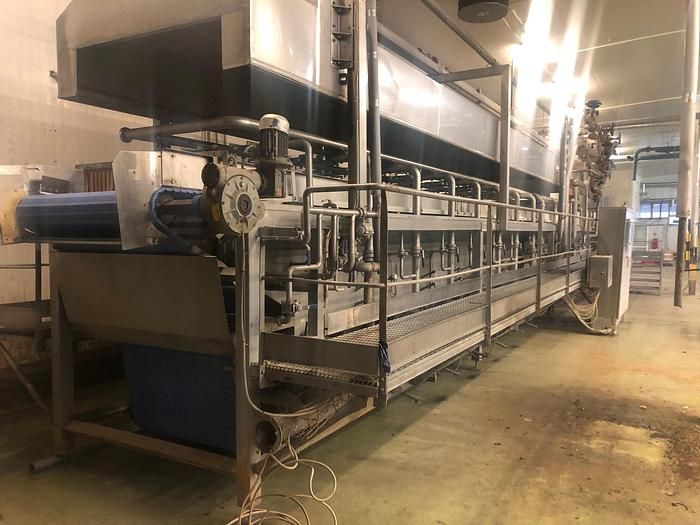

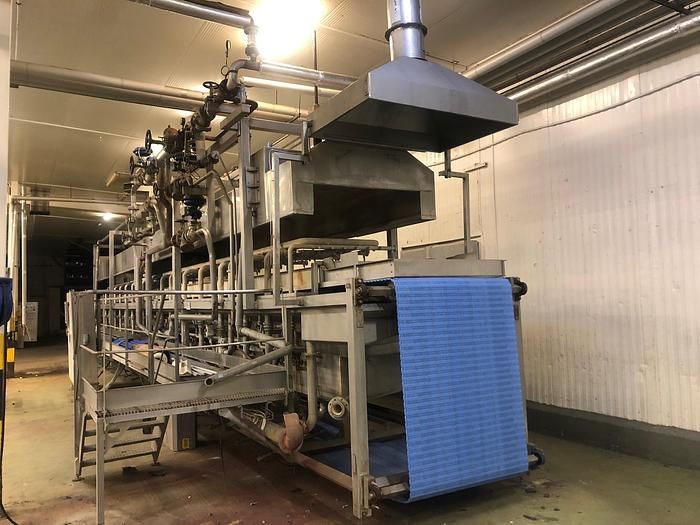

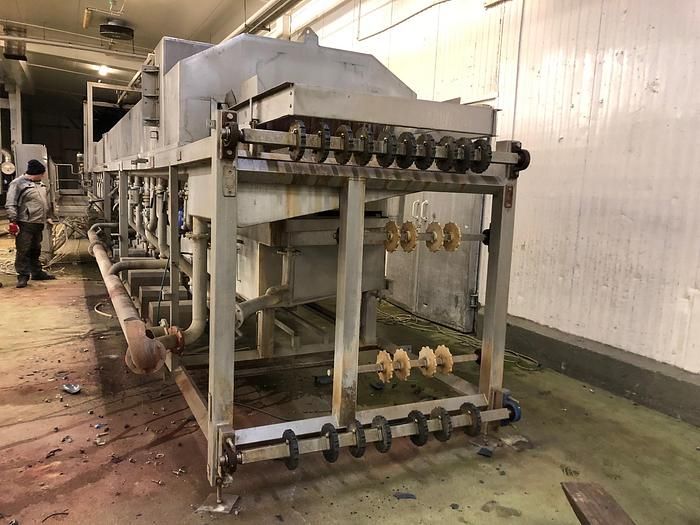

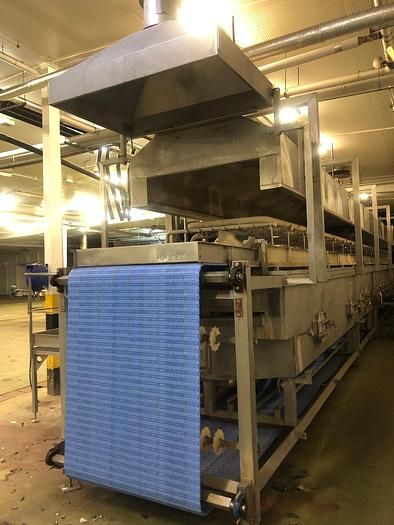

Turatti 16222.020.000.01 Belt steam and steam blancher

Dimensions:
Overall length: 18,300 mm;
Overall height: 4.100 mm;
Overall width: 4,000.

Technical data

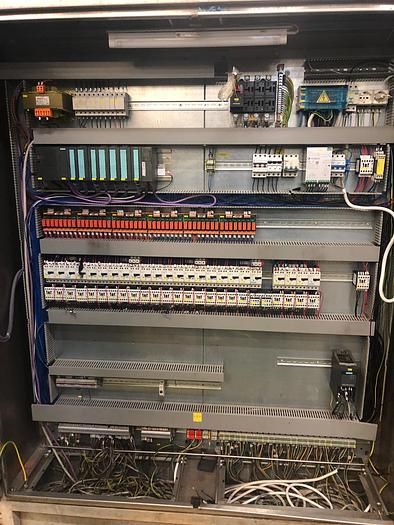

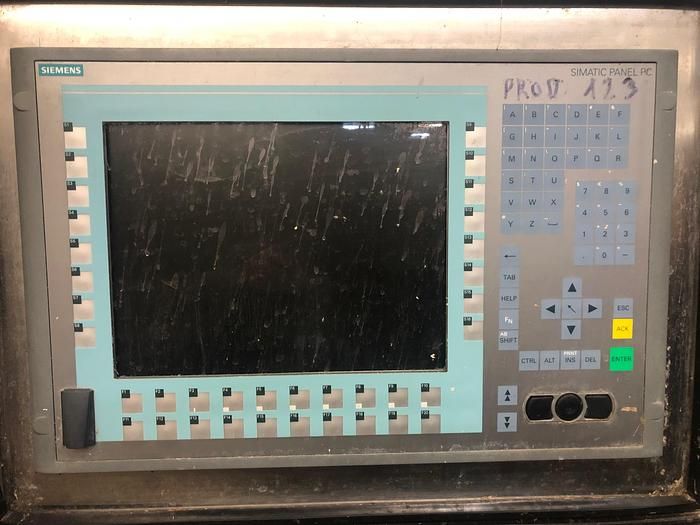

Control panel: Siemens;
Working belt width: 1,200 mm;
Characteristics of the belt structure:
- Belt construction: wires and connectors - stainless steel;
- Filling: densely slotted polypropylene modules;
Infinitely adjustable belt advance;
Maximum time for the product to pass through the blanching and cooling chamber: 20 minutes;
Maximum blanching temperature: 98 ° C;
Length of the blanching section: 9.000 mm;
Seven hot water spray pumps in the blanching section;
Hot water circuit filtration system;
Cooling section length: 9.000 mm;
Seven water spray pumps in the cooling section;
Cold water circuit filtration system;
Blanching with hot water spray or water and steam spraying possible;
Electric lifting of the blancher lid;
A system of three toothed actuators to lift the lid;
Steam supply with automatic valves and bypass;
Everything is made of stainless steel.
