Trumpf TruMark Station 3000 laser marking machine CNC Control

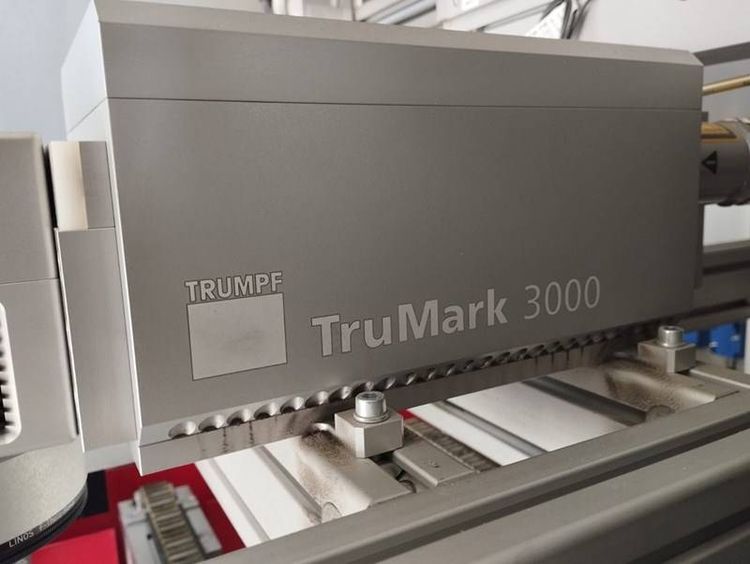

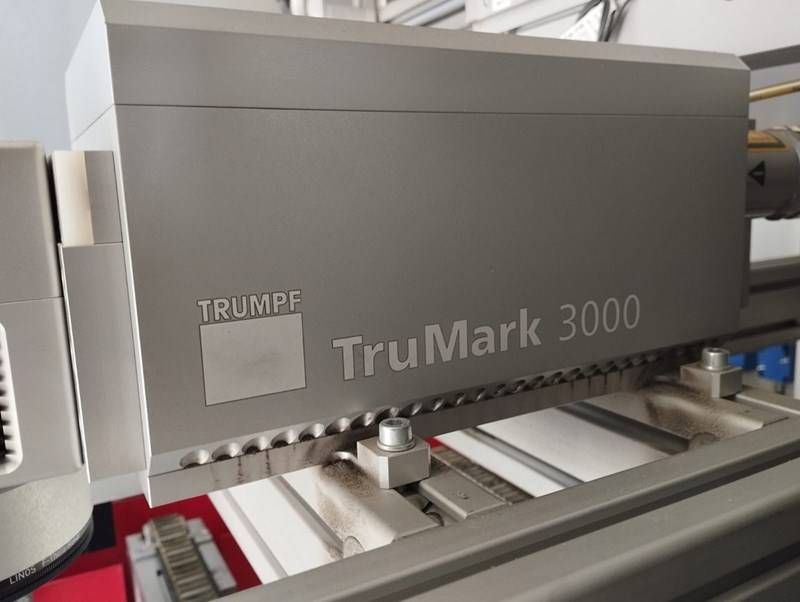

Trumpf TruMark Station 3000 laser marking machine

WORKPIECE SPECIFICATION
MAX. WORKPIECE DIMENSIONS (W x H x D) 440 mm x 200 mm x 350 mm
MAX. WEIGHT OF THE WORKPIECE 12 kg
DRIVEN AXLES AVAILABLE
TRAVEL OF THE Z AXIS 200 mm
TRAVEL SPEED Z 2.4 m/min
CONNECTION AND CONSUMPTION
ELECTRICAL CONNECTION (VOLTAGE) 100 V – 230 V
ELECTRICAL CONNECTION (FREQUENCY) 50 Hz – 60 Hz
DIMENSIONS AND WEIGHT OF THE WORKSTATION
WORKSTATION DIMENSIONS, STATION WITH DESKTOP (W x H x D) 630 mm x 820 mm x 670 mm
WORKSTATION DIMENSIONS, STAND-ALONE STATION (W x H x D) 630 mm x 1750 mm x 670 mm
LASER CLASS
LASER CLASS 1
