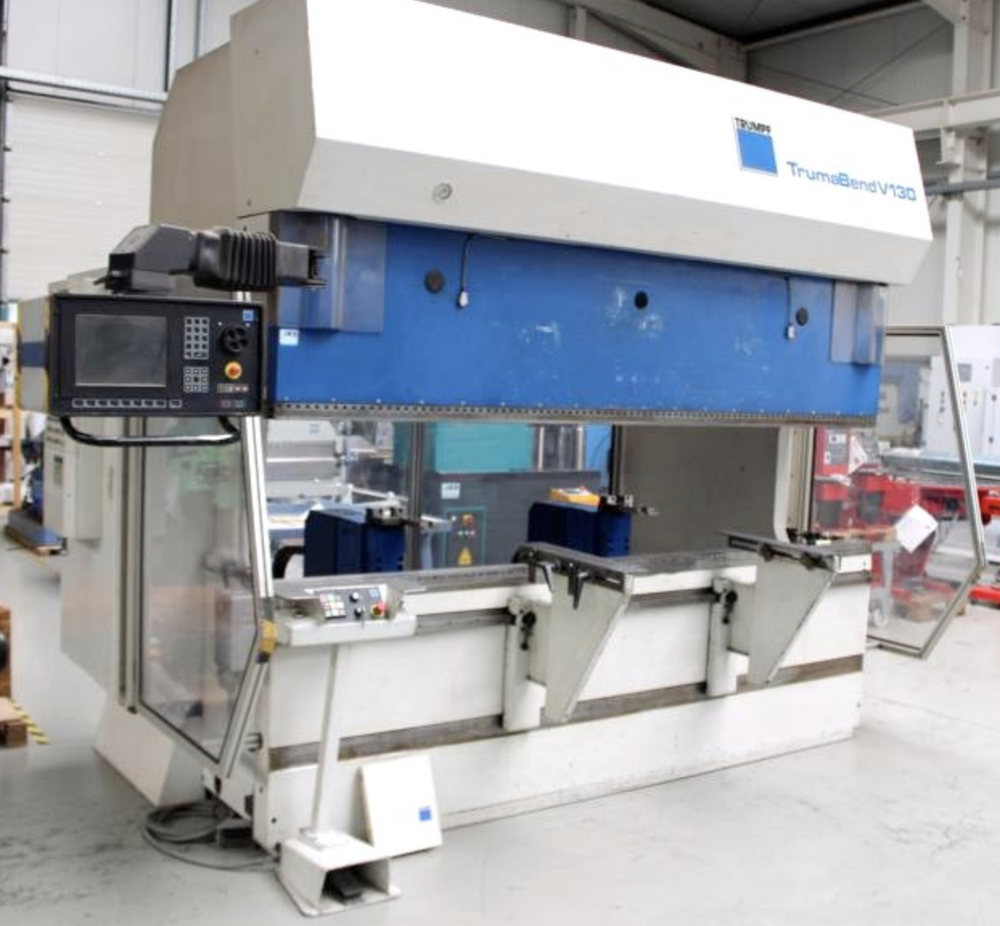

Trumpf TRUMABEND V 130 130 TONS

TRUMPF TRUMABEND V 130
Year of manufacture 1997

pressure: 130 t
chamfer lenght: 3060 mm
distance between columns: 2690 mm
column arm: 410 mm
stroke: 365 mm
dayligth: 535 mm
ajustment speed: 200 mm/sec
working feed: 1.0 - 10.0 mm/sec
return speed: 135 mm/sec
table width: 120 mm
table height: 1050 mm
tiltable up to: +/- 10.0 mm

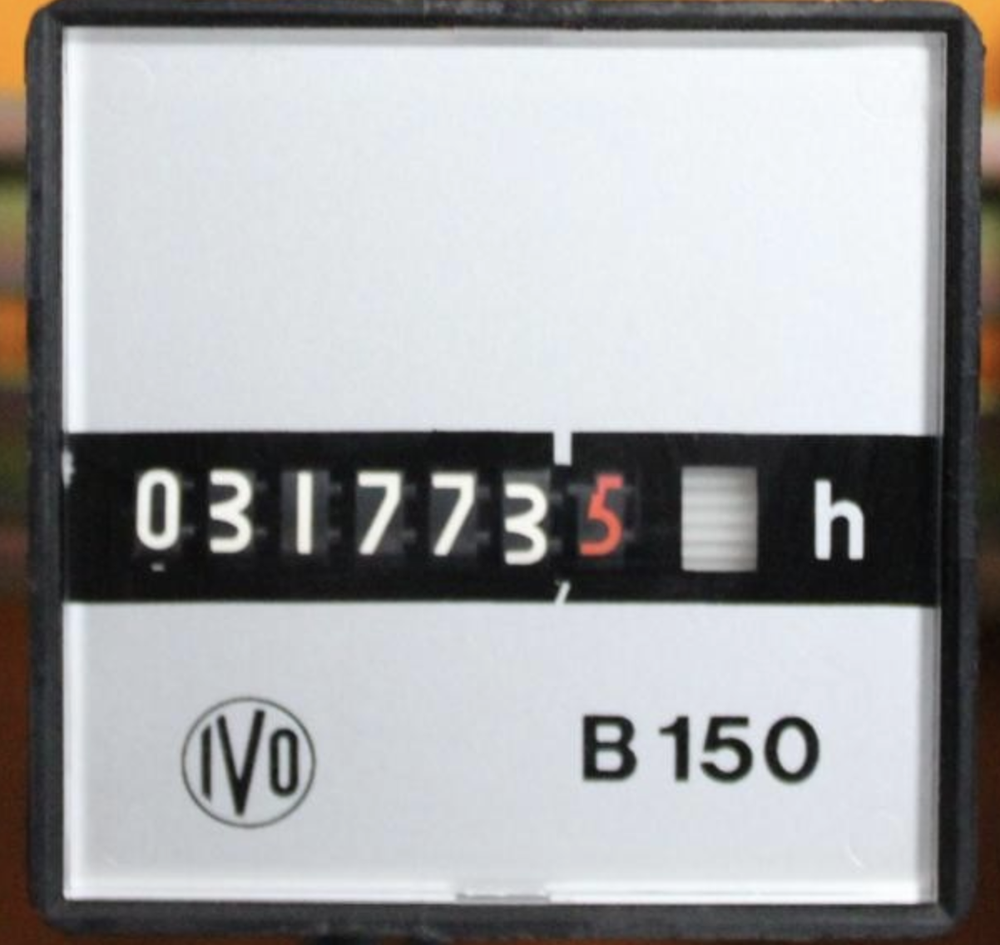

Number of working hours: ca. 31.800 h
compressed air: 5.0 - 7.0 bar
oil volume: 250 l
operating pressure: 340 bar
voltage: 400 V
total power requirement: 23.0 KVA
weight of the machine ca.: 12950 kg
range L-W-H: 3660 x 2310 x 2900 mm

- CNC electro-hydraulic press brake

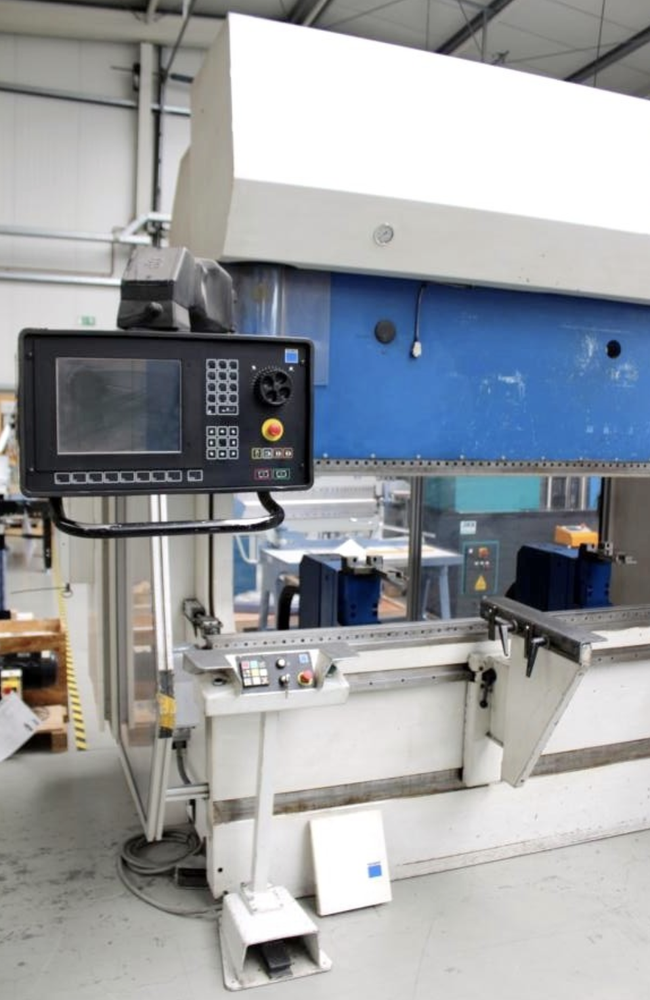

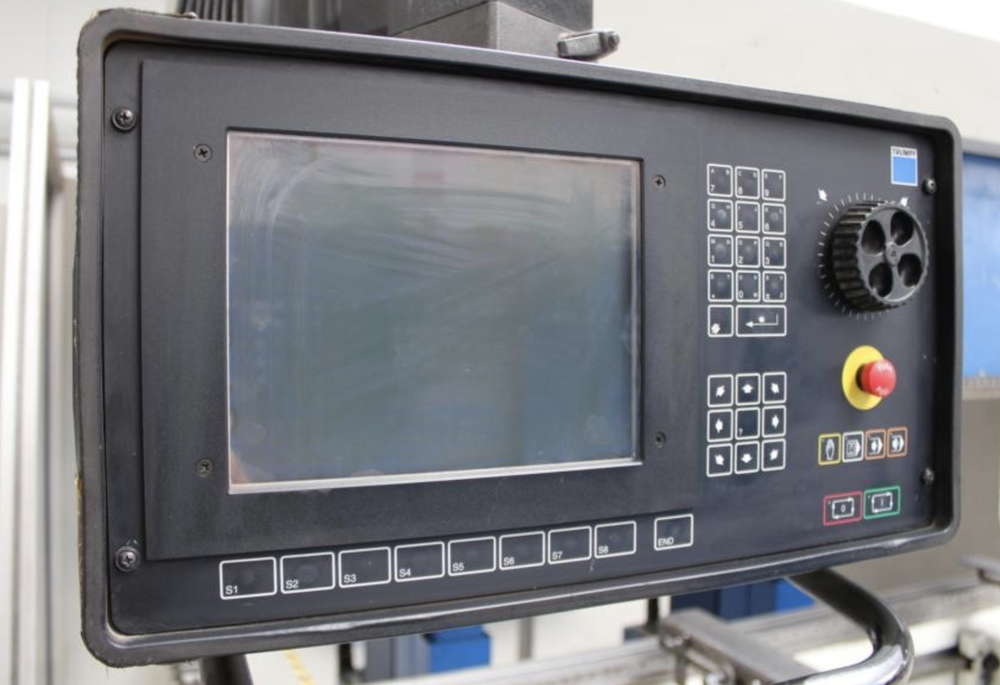

- DELEM CNC control model DA 65
* swiveling control panel, front left
* 2D graphic programming & product display
* Tool & program library
* USB keyboard and mouse interface
- CNC controlled axes: Y1 + Y2 / X1 + X2 / R1 + R2 / Z1 + Z2 / I axis

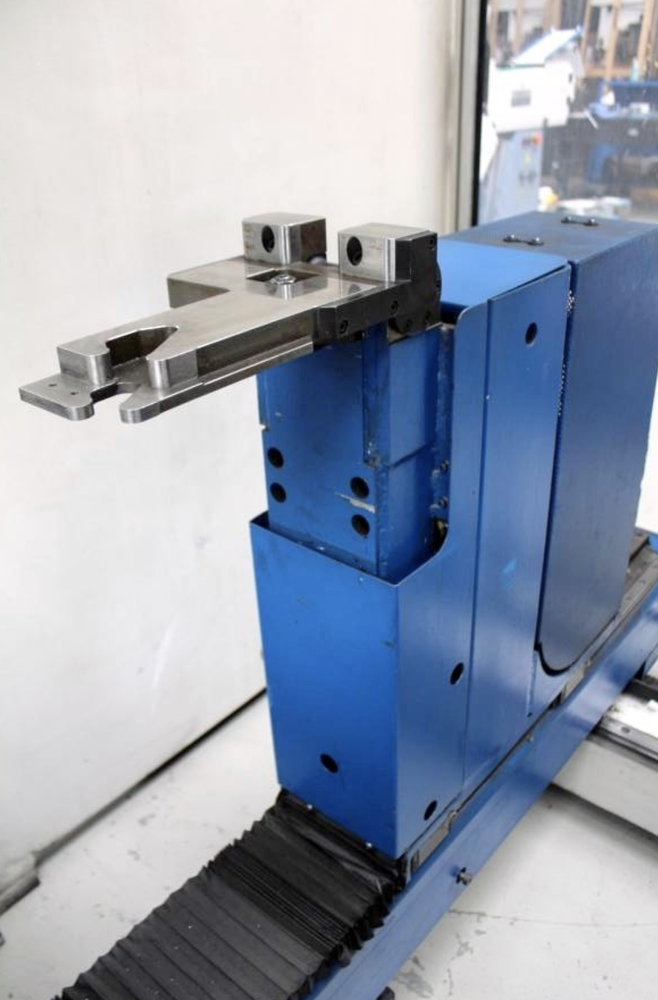

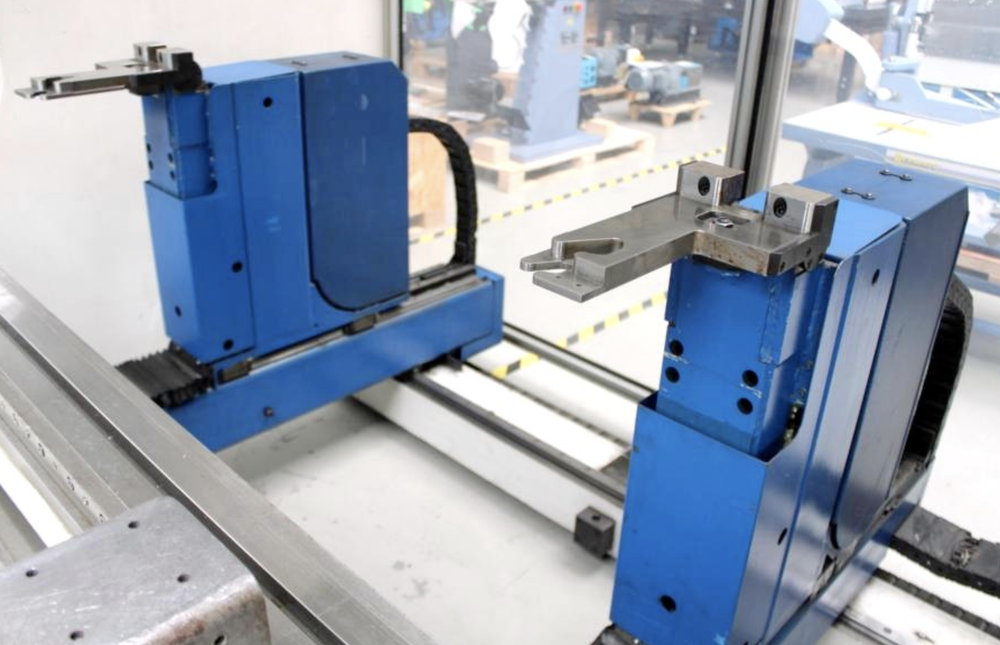

- CNC controlled back stop (X1 + X2 axis)
- CNC controlled height adjustment of the back stop (R1 + R2 axis)
- CNC controlled adjustment of the stop fingers (Z1 + Z2 axis)
- CNC controlled, pneumatic die displacement (I axis)
- CNC WILA electro-motoric table crowning
- TRUMPF hydraulic upper tool clamping
- TRUMPF manuel Lower tool clamp

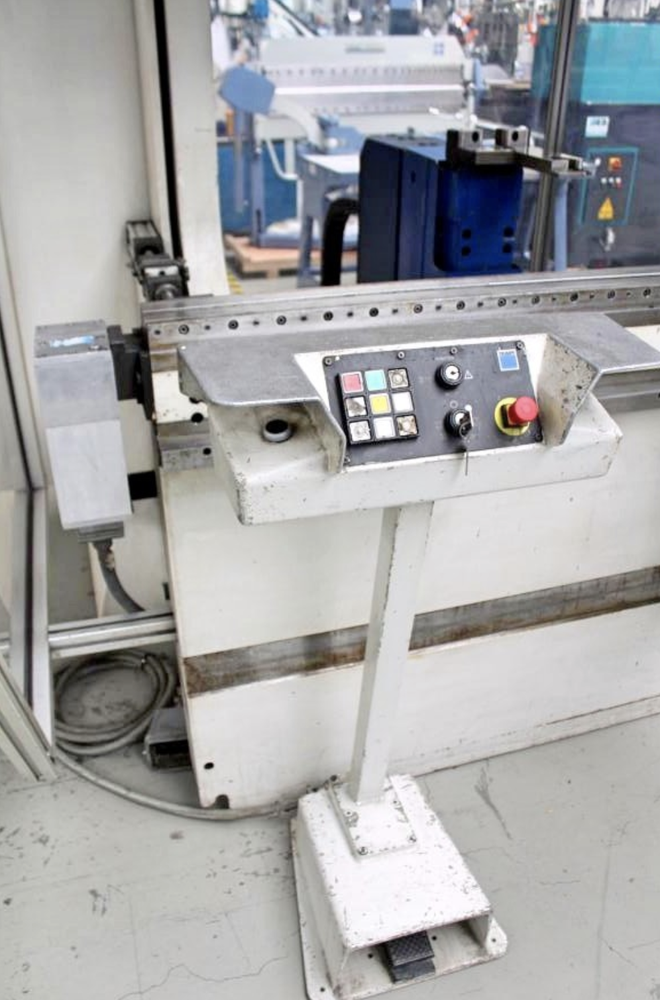

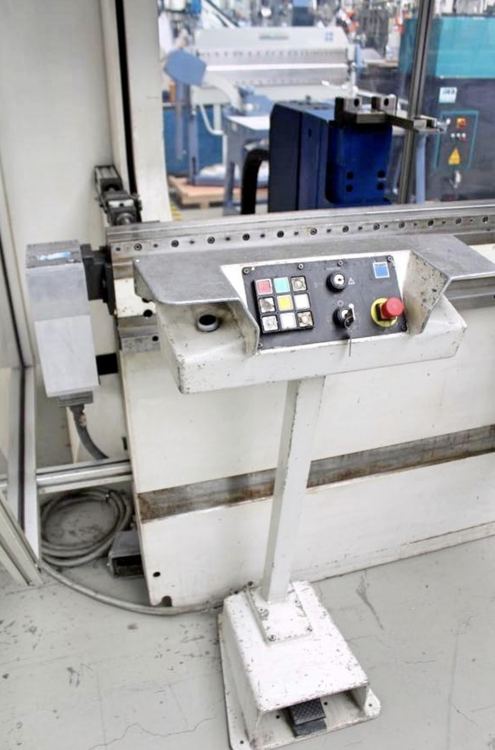

- 1x freely movable 2-hand / foot control
- Safety device at the rear (sliding door)
- Safety device at the side (swinging door)
- Original operating instructions + spare parts list
