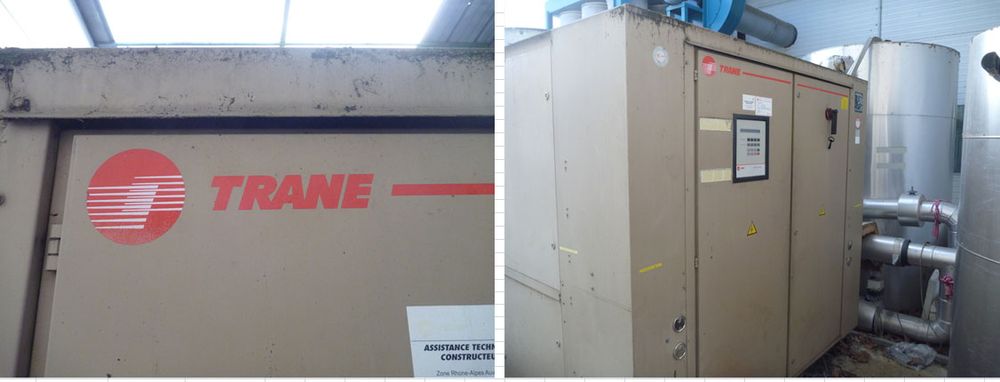

Trane ERTAB 210

Brand TRANE
Model ERTAB 210
Year 1998

1 Compressor C1 - C3; A max/FLA 106; 64 kW max
1 Compressor C2 - C4; A max/FLA 90; 56 kW max
400/50/3 Volt/Hz/Ph

3 Fans
400/50/3 Volt/Hz/Ph
A max/FLA 4.2; 1.88 kW max
2 Fans
A max/FLA 4.2/2.3; 1.88/1.21 kW max

Control 110/50/1
1200 Va
Starting Amps 437
Refrigerant R22
Oil 025E
Max working pressure 16 BP LP; 28 HP

• One or two refrigeration circuits.
• Dual helirotor compressor, hermetic design, refrigerant cooled motor :
- Superior energy efficiency: operates with a reduced superheat.
• Continuous capacity control:
- Reduced number of starts.
- Precise chilled water temperature control.
• High efficiency heat exchange surfaces for compact design

• Advanced microprocessor based
Adaptive Control™ module.
Clear Language Display operator interface.
Trane ICS capability.
• Quiet operation. Low noise Series (units with R22) for critical sound level applications.
- Easy integration on job site.
• Also available with additional heat recovery condenser (RTAB 207 to 212 with R22).
• Available with refrigerant R134a, R22 and R404A
