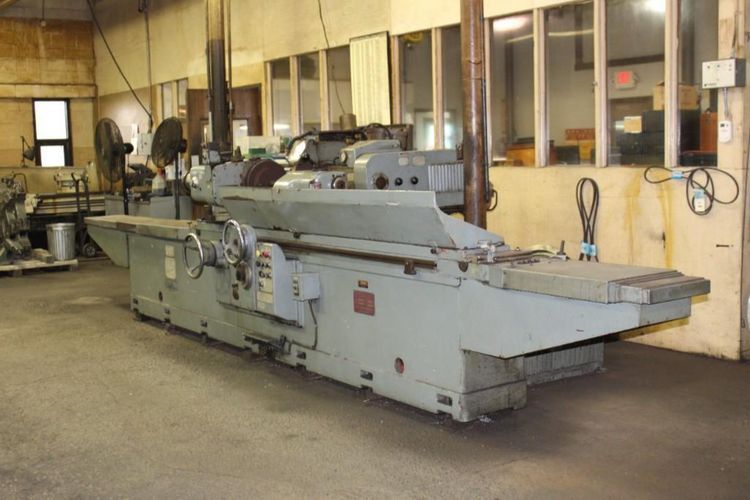

Toyoda GUP40-180
AMERICA North (USA-Canada-Mexico)
TOYODA GUP40-180
NEW: 1982
GENERAL:
MAX. SWING OVER TABLE ................... 19.685"
DISTANCE BETWEEN CENTERS ................ 71"
MAX. LOAD BETWEEN CENTERS ............... 1,100 LBS.
TABLE:
TABLE SWIVELS, CCW/CW .................... 8° CCW/3°CW
LONGITUDINAL TABLE TRAVERSE SPEED ........ 2" TO 157" IPM
MOVEMENT PER TURN OF HANDWHEEL (2-STEP) .. 0.65/0.65"
WHEELHEAD:
WHEELHEAD SWIVELS LEFT & RIGHT ........... +/- 30°
TOTAL FEED STROKE ........................ 11.6"
HANDWHEEL INFEED STROKE .................. 6.5"
ADDITIONAL STROKE BY SLIDING ON
SUB-SLIDE BASE .......................... 3.5"
AUTOMATIC RAPID INFEED STROKE ............ 1.6"
AUTOMATIC INFEED AT TABLE REVERSALS ...... 0.0001" TO .0016"
AUTOMATIC PLUNGE INFEED .................. YES
AUTO PLUNGE INFEED W/POSITIVE STOP ....... 0 TO .0315"
MOVEMENT PER GRAD. OF HANDWHEEL .......... 0.0001"
MOVEMENT PER TURN OF HANDWHEEL ........... 0.040"
GRINDING WHEEL:
GRINDING WHEEL SIZE ...................... 20" X 3" X 8"
MINIMUM WHEEL DIAMETER ................... 12"
MAX. WHEEL WIDTH ......................... 4.4"
WHEEL SPEEDS (3) ................... 1,120/1,300/1,525 RPM
MAXIMUM WHEEL SPEED ...................... 6,560 SFPM
WORKHEAD:
WORKHEAD SWIVELS ......................... 90° CCW/10° CW
WORKHEAD SPINDLE TAPER ................... #5 MT
SPINDLE BORE DIAMETER .................... 1.57"
INFINITELY VARIABLE SPINDLE SPEEDS ....... 1 TO 150 RPM
TAILSTOCK:
TAILSTOCK SPINDLE CENTER ................. #5 MT
TAILSTOCK QUILL TRAVEL ................... 1.18"
APPROX. MACHINE WEIGHT ................... 13,200 LBS.
APPROX. MACHINE DIMENSIONS ............... 189" X 76"W x 58"H
