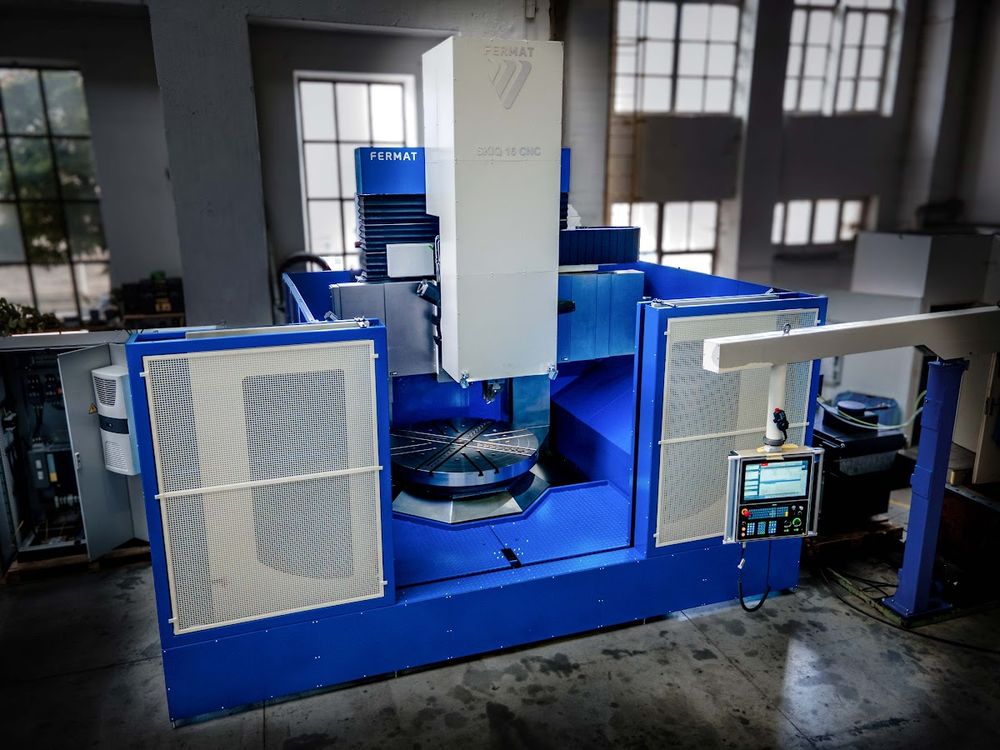

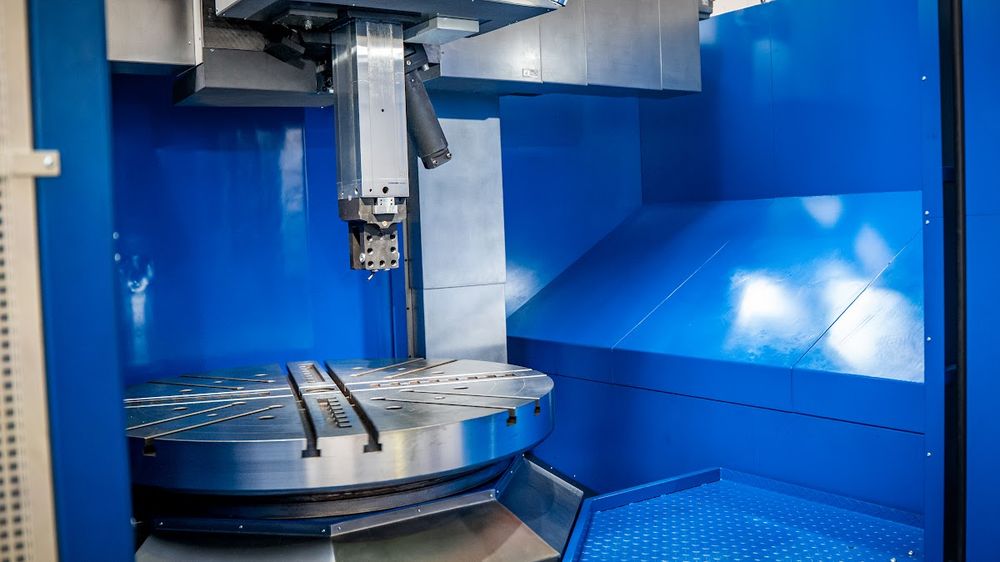

Toshulin SKIQ 16 CNC
EUROPE (Central and Eastern)

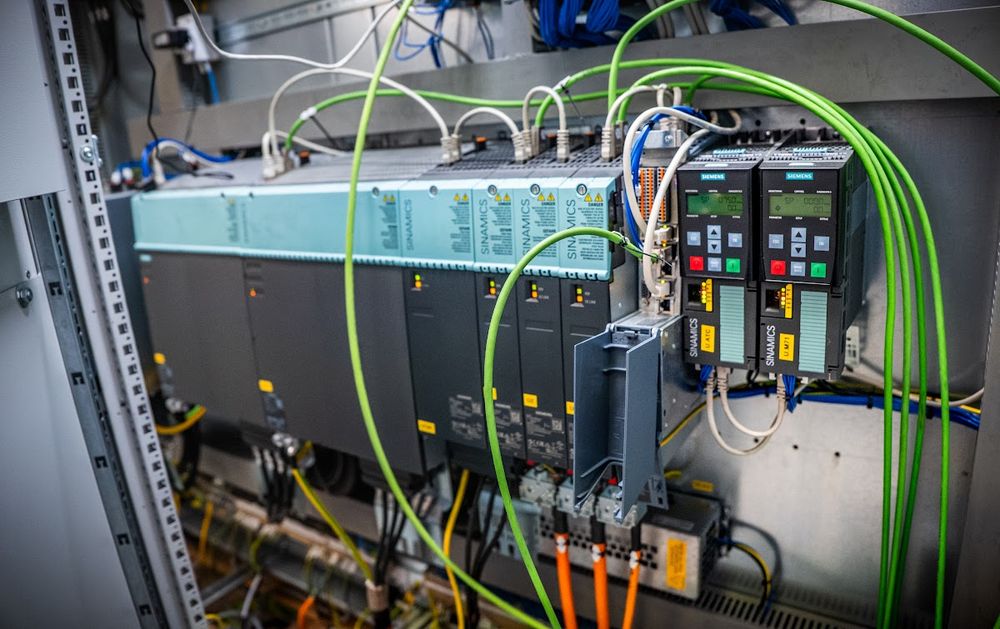

Control system Siemens Sinumerik ONE
Max. diameter of workpiece 1800 mm

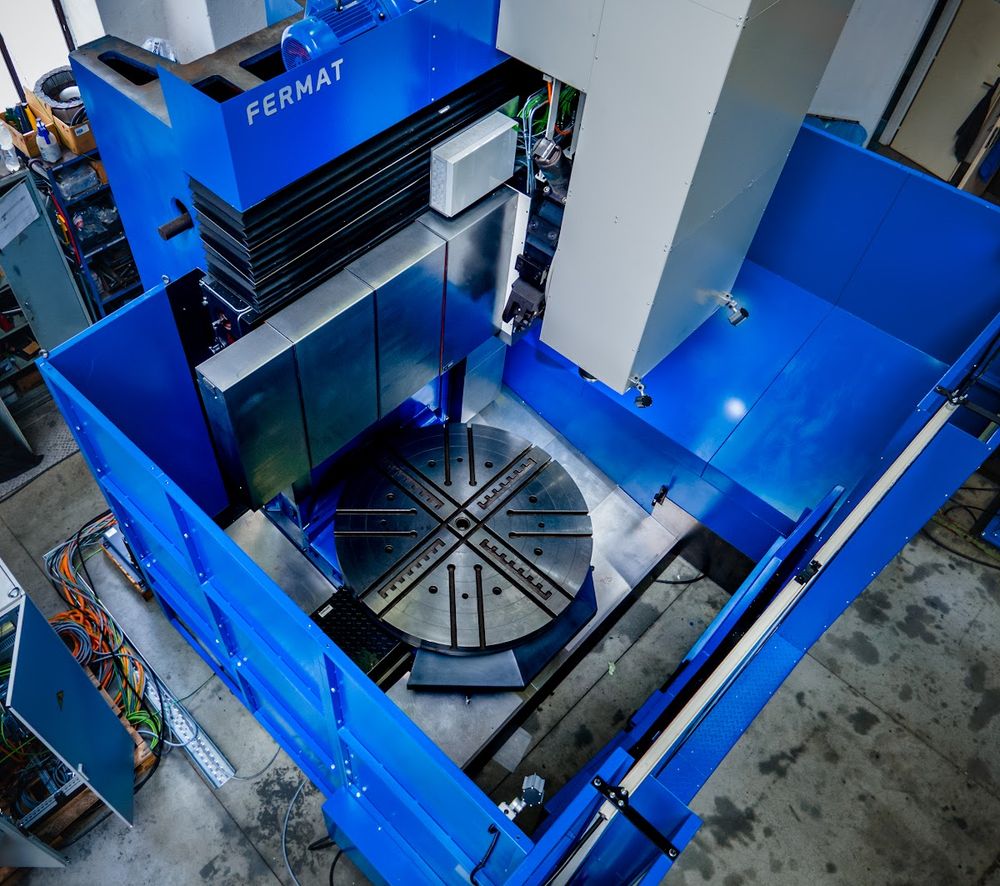

Clamping diameter of rotary table 1600 mm
Max. load of table 12000 kg
Max. workpiece height 1275 mm
Ram travel (Z) 1000 mm
Ram size 180x220 mm
Driven Tools YES
Number of tool positions (driven)
Tool magazine YES
Number of positions in magazine 15
Axis C 360 °
Cooling through spindle YES
Pressure of cooling bar
Working feed 4000 mm/min
Rapid feed 10000 m/min
Main motor power 60 kW
Rotations of clamping plate 2 - 315 /min
Speed driven tools 8 - 3300 /min
Power of driven tools 17,5 kW
Machine weight 27200 kg
Machine dimensions l x w x h 6300 x 6200 x 5500 mm
Machine completely overhauled 2024.
Under the power on Fermat stock.
Full - way positioning C axis (boring, milling with continuous controllable worktop and driving tools).
Full machine covering with CE declaration.
12 months warranty.
Full machine documentation.
Chip conveyor.

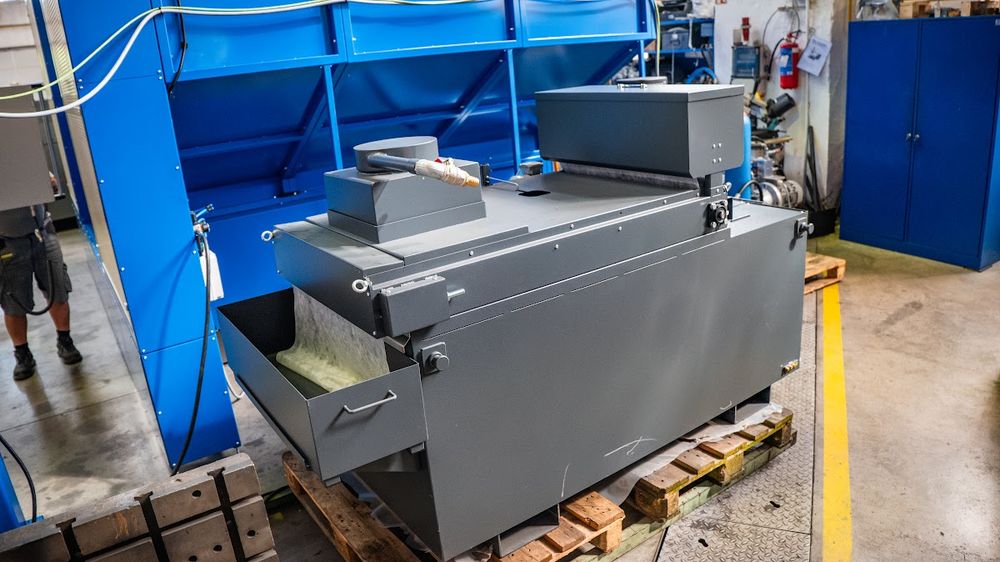

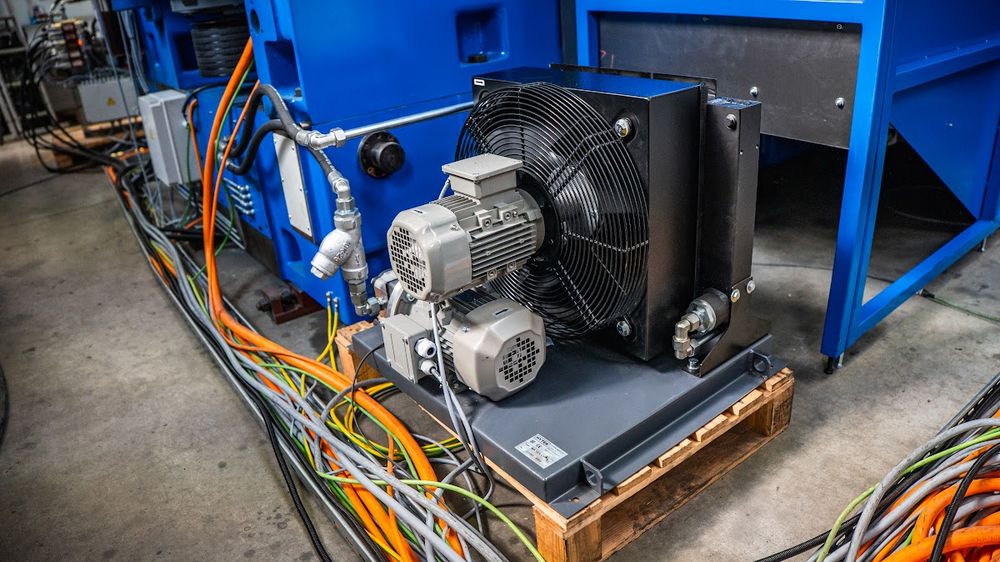

Cooling device.
Price does not includes tools (option).
