Toshiba Titan 3T

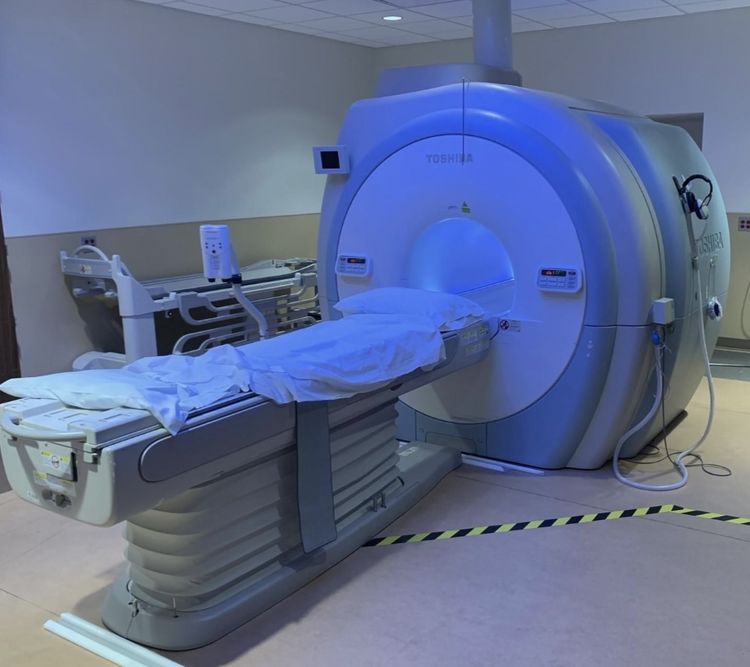

Toshiba Titan 3T MRI Scanner. Magnet with actively shielded gradient coil
(30mTm/203Tms)
• 3 Tesla Magnet (Oxford OR-97 short bore magnet)
• The software for the 3.0T is 2.5 revision 7
• Acoustic noise dampening Pianissimo
• Variable illumination and ventilation bore tunnel for
added patient comfort
• Integrated Atlas coils limit the number of re-positioning when
performing multiple examinations
• 71cm bore with a maximum FOV size at 55cm
• Dynamic Shimmed Volume of 55cm3, guaranteed ≤2ppm
• Standard slew rate of 130 T/m/s
• Maximum gradient amplifier power 465kW per axis
• RF maximum power output 35kW
• 32 independent receiver channels
• 10 coil connectors, 7 on the table, 1 on the gantry,
and 2 linear ports on table
Parallel imaging pre-installed (SPEEDER)
• Table Trolly to remove table option

System Options:
SUPER_FASE, EPI, MRA, CARDIAC, DRKS, DTI, JET, MRSNC,
MRSM, NOISE REDUCTION, DBDT02_1, SAR02_01, DBDT02_2,
SAR02_02, Autovoice, SILENT, SPEEDER, AMB, BIP, MRAPV, CSF,
RTCine, MPV1, MRS_BRST, B1_ICORR, CRDC_PLN, wireless gating

List of Coils
* T/R Brain – 1ch
* Head/Neck/Plexus Coil – 16ch
* Spine Coil – 40ch
* Body Anterior Array – 16ch
* Large Flex – 4ch
* Large Knee – 8ch
* Hand/Wrist – 8ch
* Shoulder – 8ch
* 2 Small 3” loops – 1ch
* 2 Large 6” loops – 1ch
