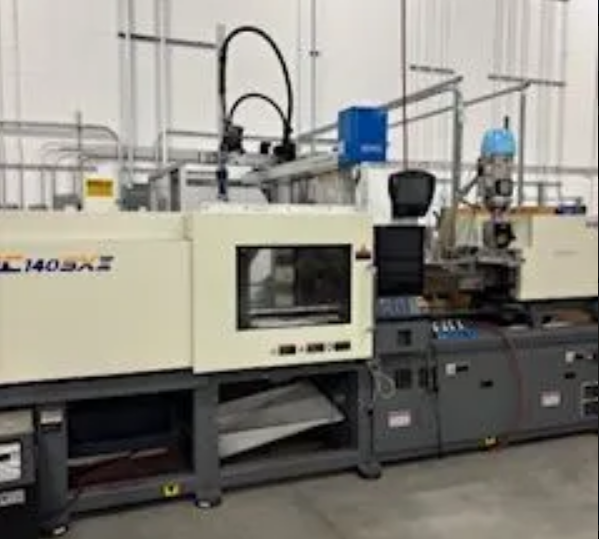

Toshiba EC140SXIIV70-A 143 T

Type All Electric
Clamping Force Tonnage 143 T
Barrel Code 4A
Shot Volume (PS) 5.1 oz
Shot Volume (PE) 4.1 oz
Screw Diameter 1.42"
Maximum Injection Pressure 35800 psi
Maximum Holding Pressure 35800 psi
Screw Speed STD 350 RPM
Tie Bar Distance H 20.1"
Tie Bar Distance V 18.1"
Platen Dimension H 28.3"
Platen Dimension V 26.4"
Clamp Stroke 15.7"
Maximum Daylight 37.4"
Mold Height Min 7.1"
Mold Height Max 21.7"
Ejector Force 3.3 T
Ejector Stroke 3.54"
Injection Orientation Horz
Hours 3,538 hr.
Machine under power Under power running with mould
Control CNC (INJECTVISOR V 70)
Dimensions 16.4 x 4.6 x 5.9
Weight 11,600 lbs
Sepro Robot, moreto loader, conevor for sale separately for addition cost
