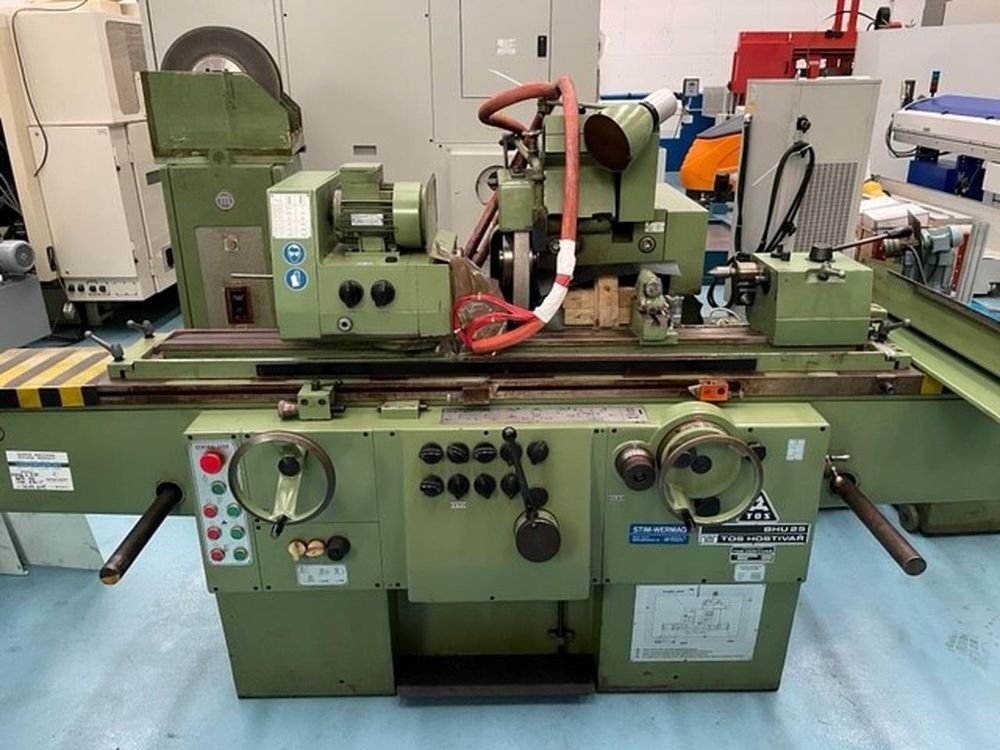

TOS BHU25TOS BHU25

TOS BHU25TOS BHU25
Distance between centres
1000 mm
Swing diameter
280 mm
Max. Longitudinal travel
1130 mm
Max. transversal travel
245 mm
Grinding wheel:
Diameter
400 mm
Width
40 mm
Bore
127 mm
grinding wheel width
63 mm
Workpiece weight on centres max.
60 kg
Grinding wheel speeds:
number (steps)
2
from
1570 rpm
up to
2050 rpm
Angular displacement
+/-60 °
Work piece spindle head:
speeds:
number (steps)
12
from
22 rpm
up to
710 rpm
Swivelling range
90 °
Spindle taper:
4 MT
Taper in tailstock:
3 MT
Table angular displacement
+/- 7 °
Voltage 50 Hz 3x
380 Volt
External Grinding wheel motor
4 kW
Total power required
7.8 kVA
Machine's weight about
2500 kg
Overall dimensions machine:
Length
1600 mm
Width
1400 mm
Height
1300 mm
Various accessories:
Tailstock with fine adjustement
Wheel trueing attachment
Coolant system
Lamp
