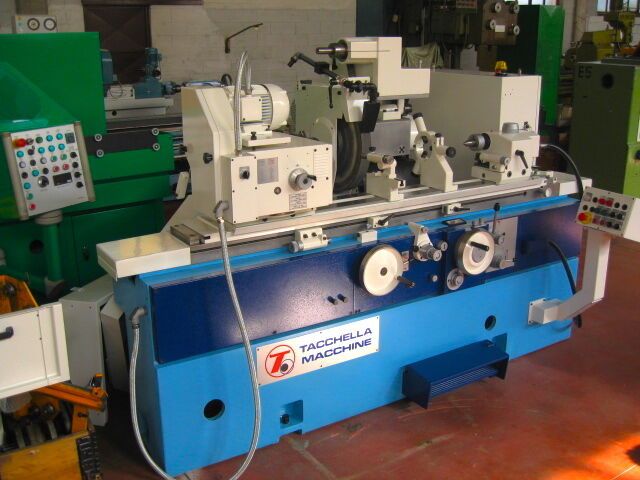

Tacchella 1018 UA

Tacchella 1018 UA

Distance between centers1000 mm
Height between centers180 mm
Max grinding length1000 mm
Max grinding diameter360 mm
Max internal diameter10-270 mm
Max internal depth870 mm

TABLE
Stroke1000 mm
Translation speed0.15 mm/min
Max piece weight250 Kg

GRINDING HEAD
External spindle power505 Kw
External grinding wheel rotation speed1235/1450 Rpm
Internal spindle power1.5HYDRAULIC Kw

GRINDING LEFT
Grinding wheel band thickness80 mm
Max. grinding wheel diameter500 mm
Hole diameter1271.10 mm

WORKHEAD
Spindle power1.10 Kw
Rotation speed16/500 Rpm
Speed ​​regulation

CONTINUE
Inclination90 °
ConeMK4

TAILSTOCK
Quilt diameter35 mm
ConeMK4
DriveHYDRAULIC/MANUAL
