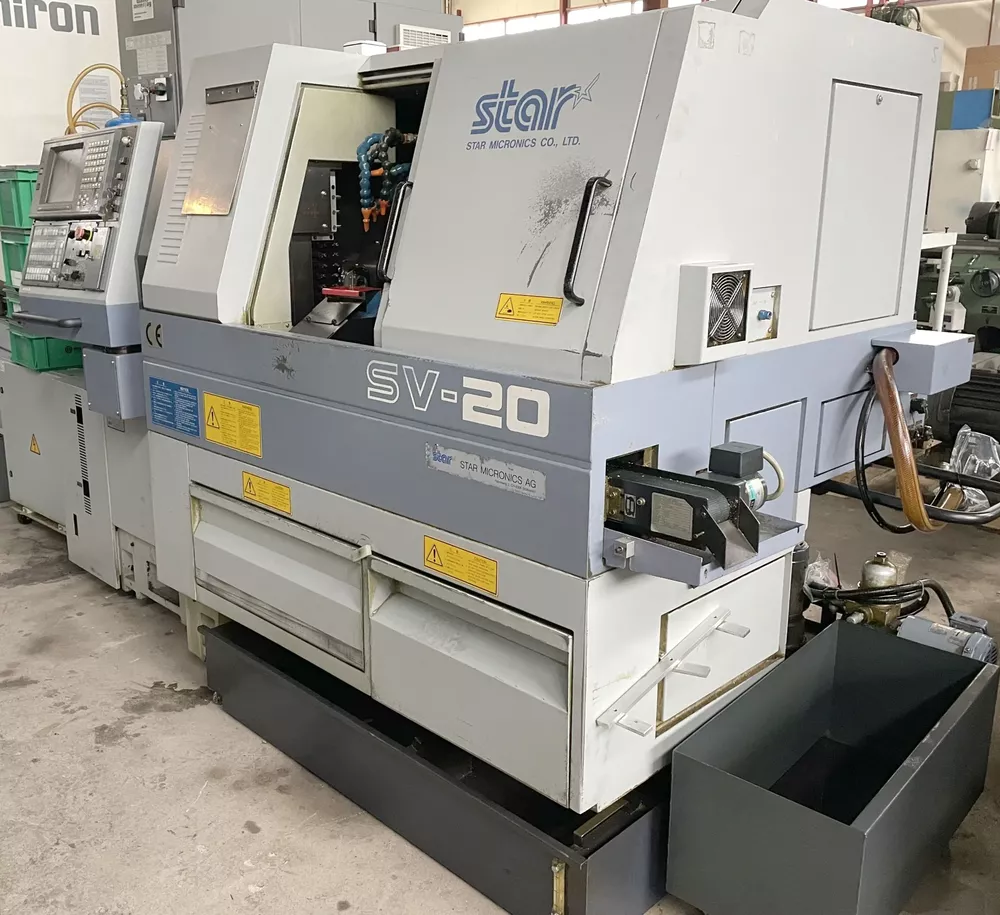

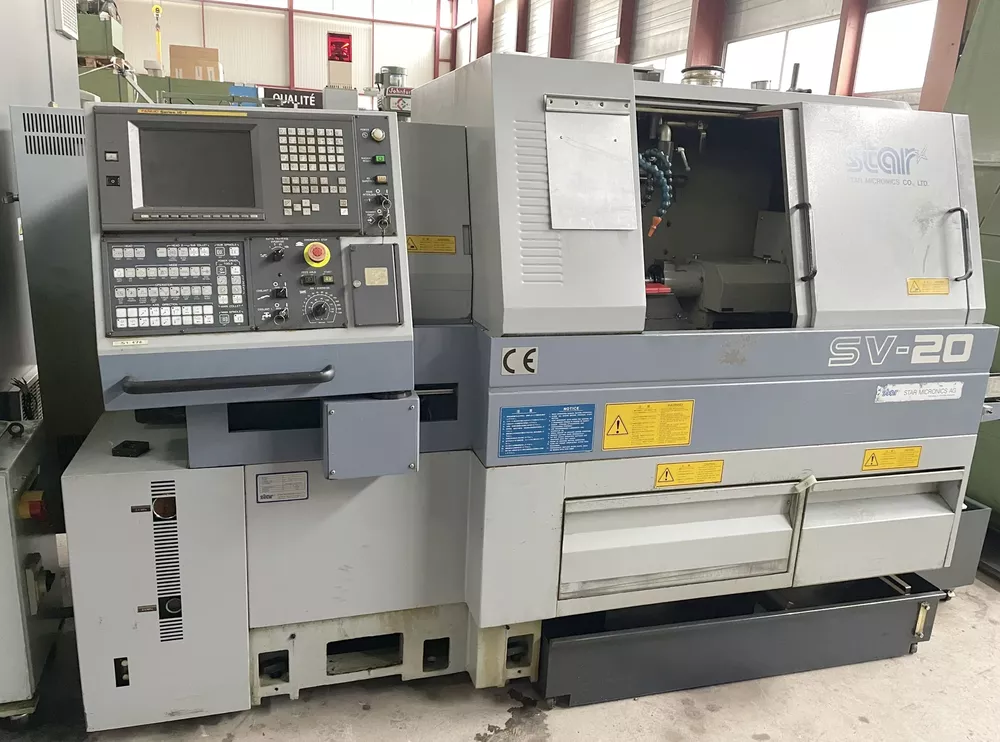

Star FANUC Series 16-T 10000 rpm SV-20 9 Axis

CNC Swiss type lathe
STAR SV-20

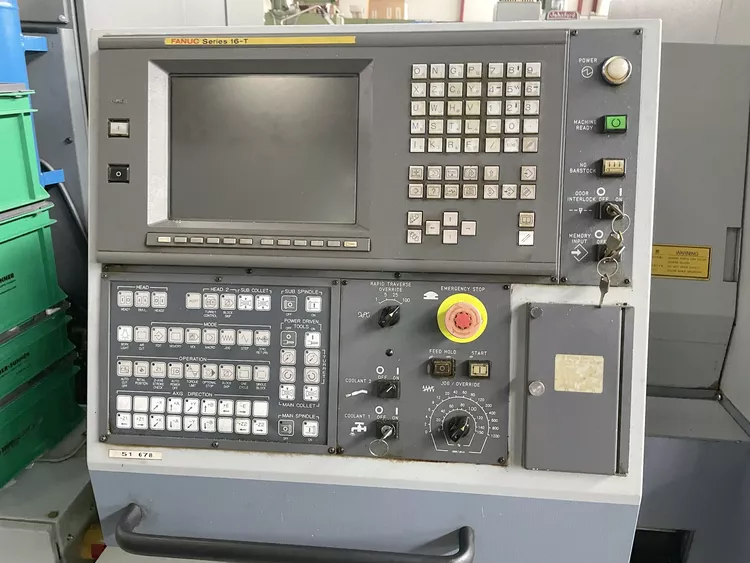

Controller :FANUC Series 16-T
Number of axis total
9
Number of spindles
2
Max. turning diameter
20 mm
Maximum turning length
205 mm
Internal spindle diameter
26 mm
Spindle speeds:
stepless
from
50 rpm
up to
10000 rpm

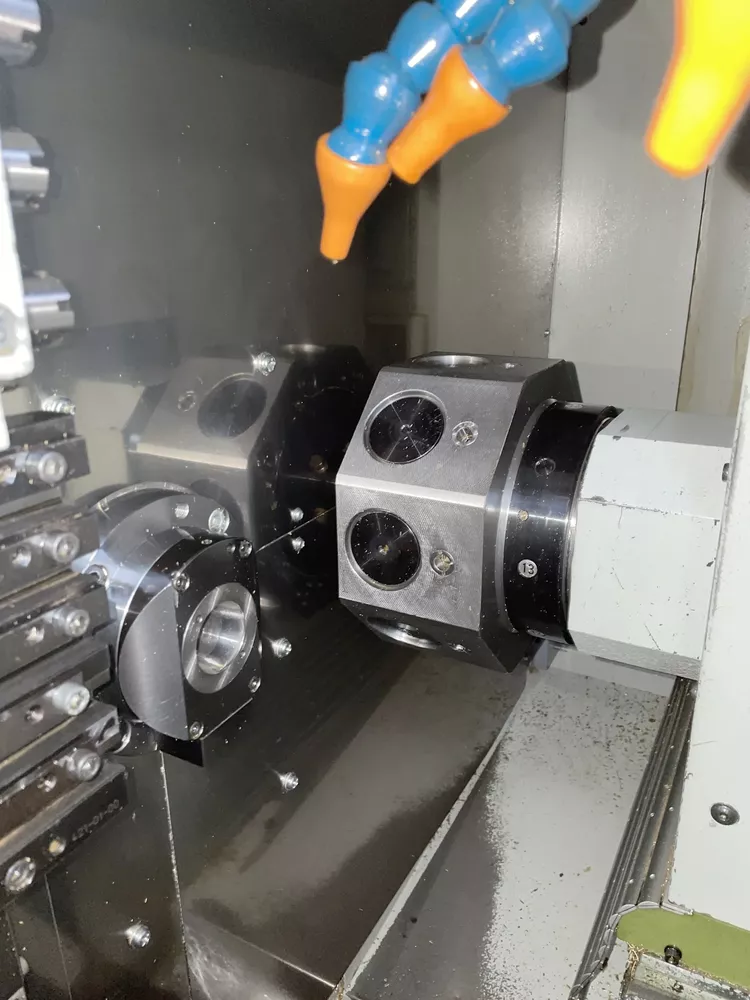

Turret slide:
Number of positions
8
number of driven tools
8
Spindle speeds (turning tools)
400 - 6000 rpm
Power of driven tools
0.75 kW

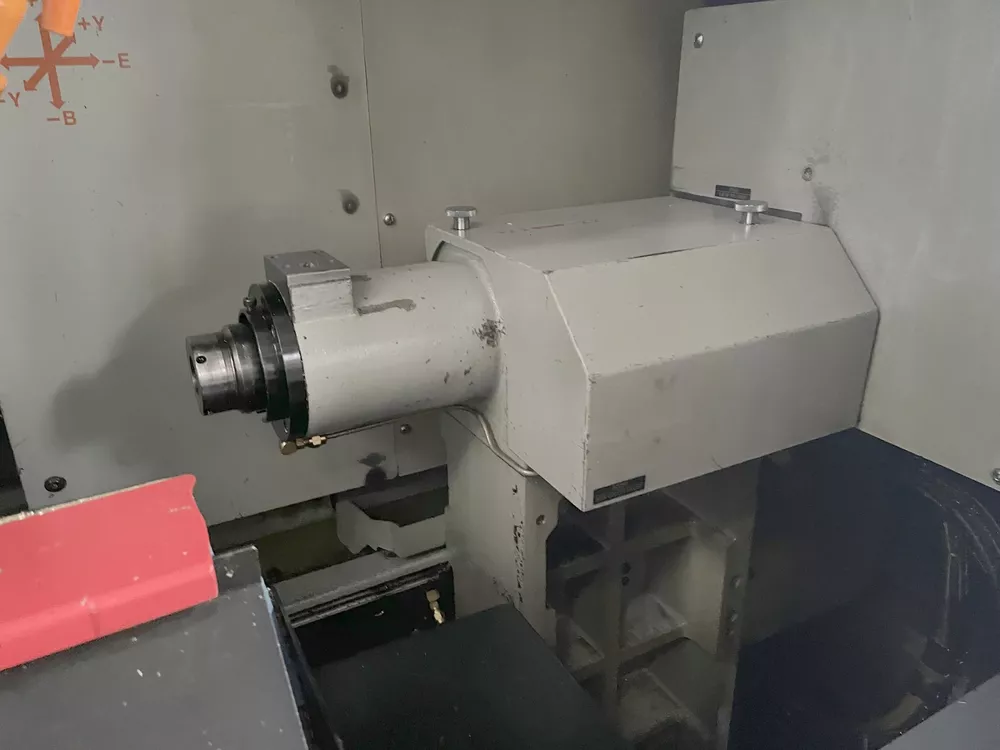

Back spindle:
speeds:
from
500 rpm
up to
10000 rpm
Max. tapping length
75 mm
Thread drill diameter
8 M (Metric)
Back machining workpiece length max.
150 mm

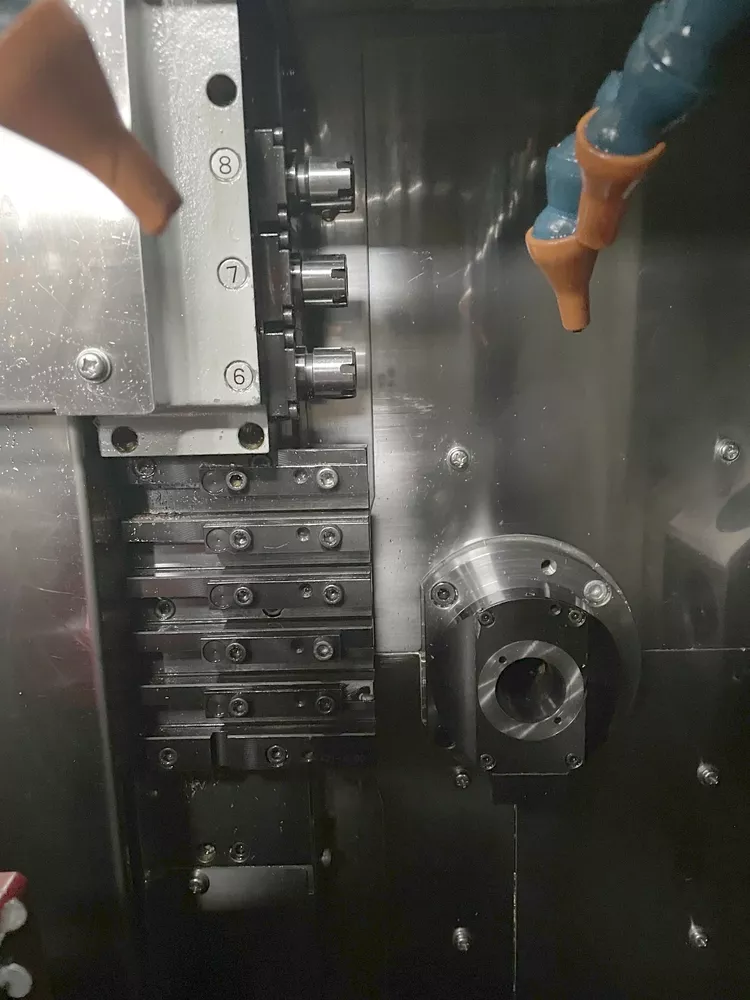

Tool-holder:
number of tools
5
number of driven tools
3
Spindle speeds (turning tools)
6000 rpm
Power of driven tools
0.5 kW
Max. drilling diameter
14 mm
Thread drill diameter
10 M (Metric)
Feeds:
stepless
from
0 mm/min
up to
10000 mm/min
Rapid traverse X
15 m/min
Rapid traverse Y
15 m/min
Rapid traverse Z
18 m/min
Voltage 50 Hz 3x
380 Volt
Spindle motor
3.7 kW
Power of back spindle
2.2 / 3.7 kW
Air connect
5 bar
Total power required
9 kVA
Machine's weight about
3400 kg
Overall dimensions machine:
Length
2670 mm
Width
1375 mm
Height
1650 mm
Various accessories:
Blow out device

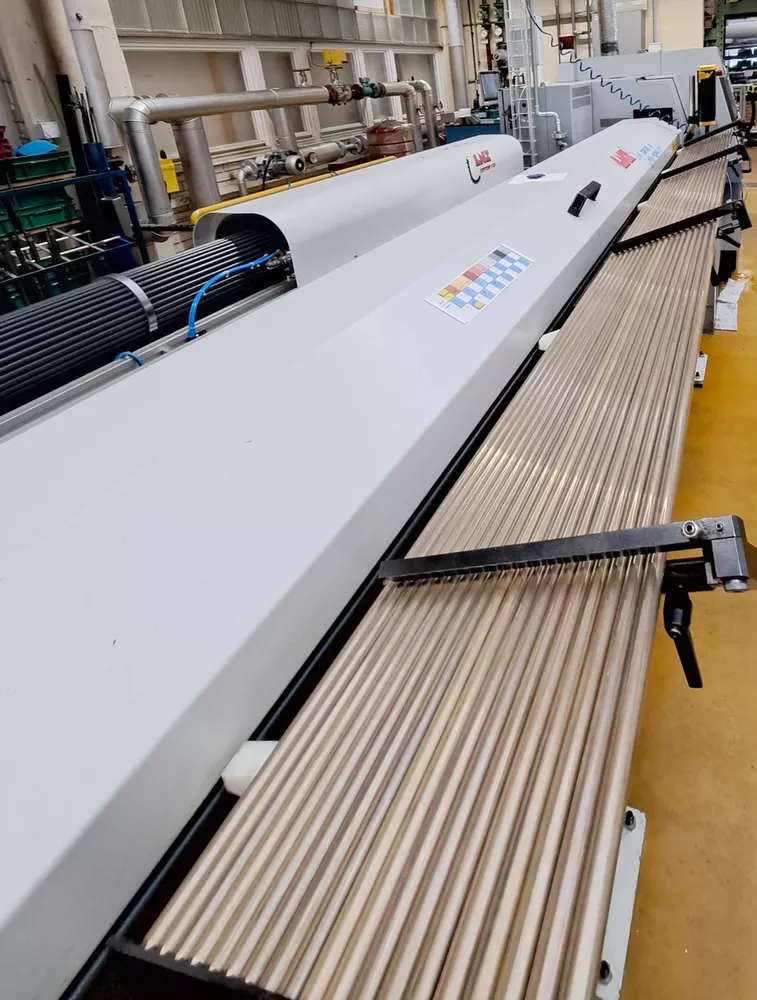

Automatic bar loader LNS Hydrobar
MINI-SPRINT
Parts catcher
Workpiece conveyor
Lamp
Coolant system
170 l

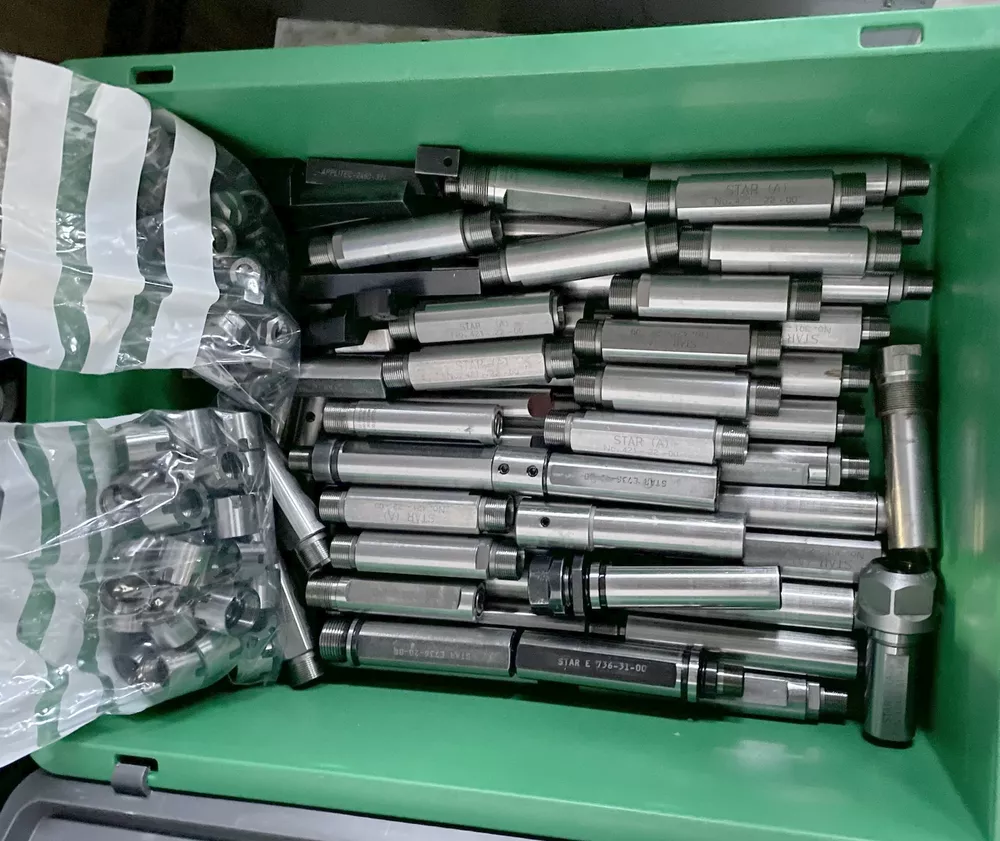

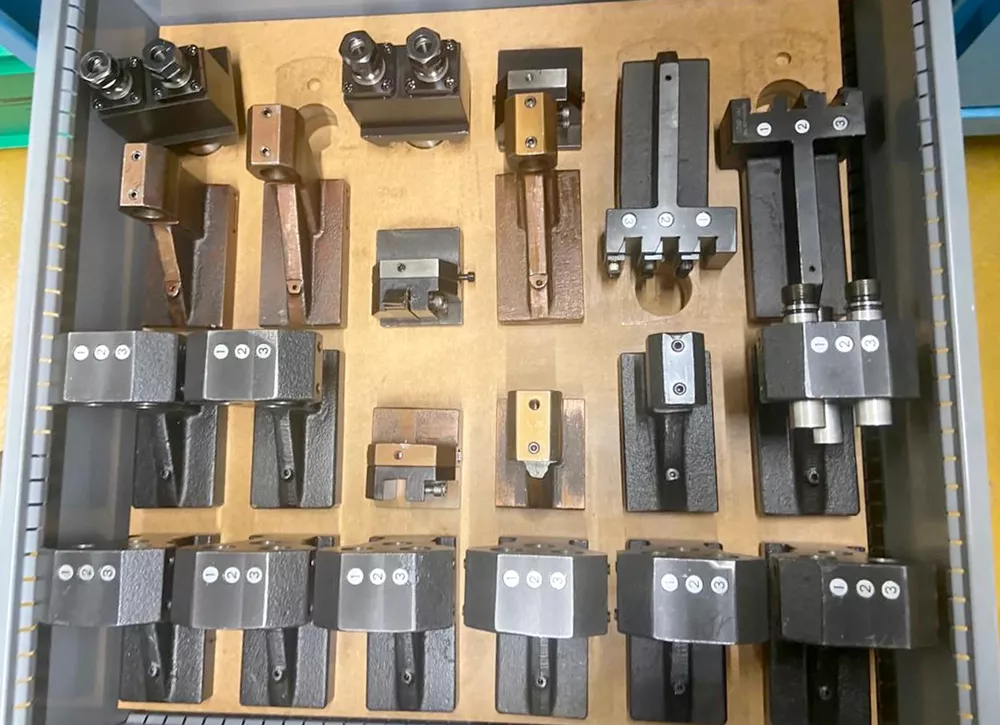

Set of toolholders
