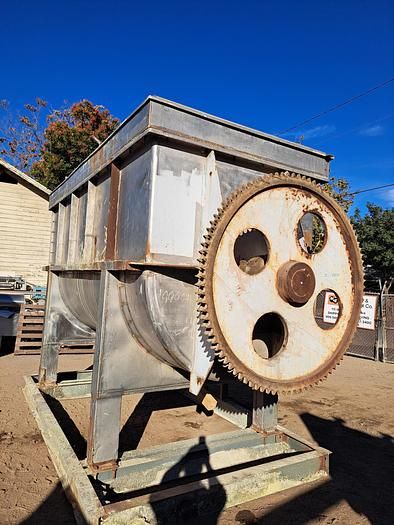

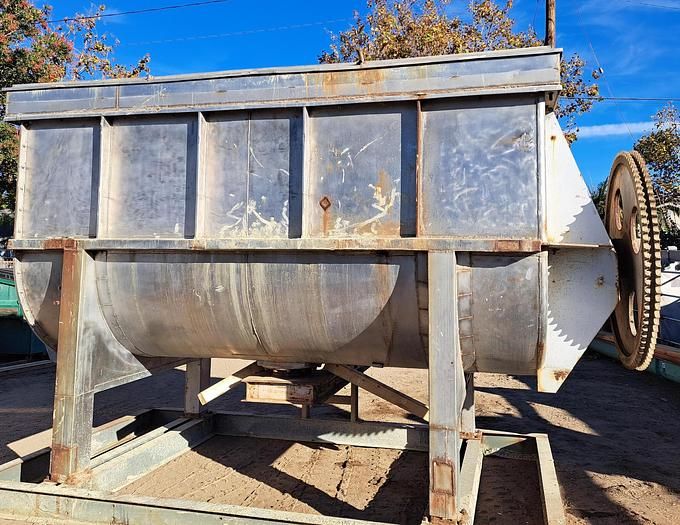

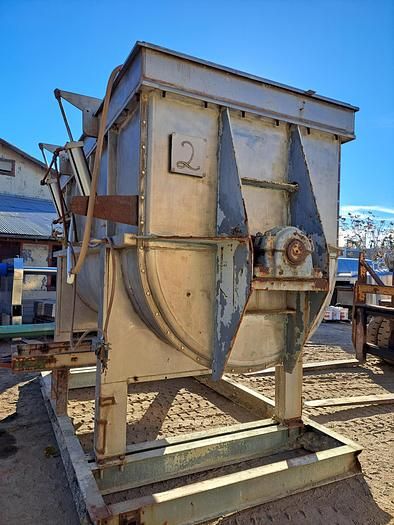

Stainless Steel Ribbon Mixer

350 Cubic Feet Stainless Steel Ribbon Mixer,
approximately 350 cubic-feet capacity,
trough measures 146″ long x 66″ wide x 80″ deep.

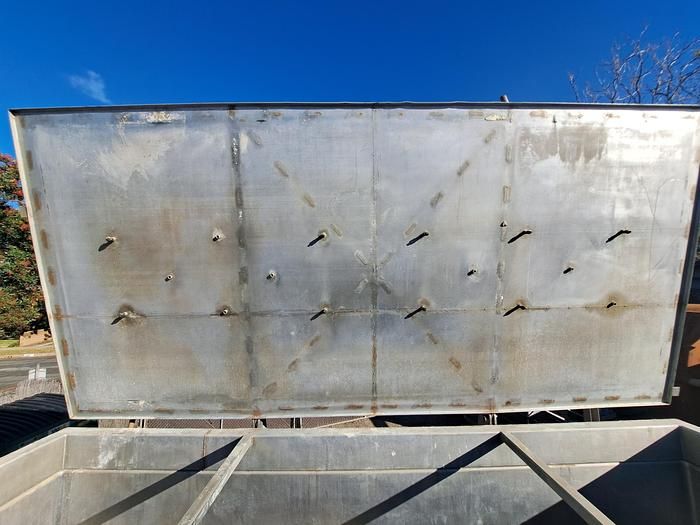

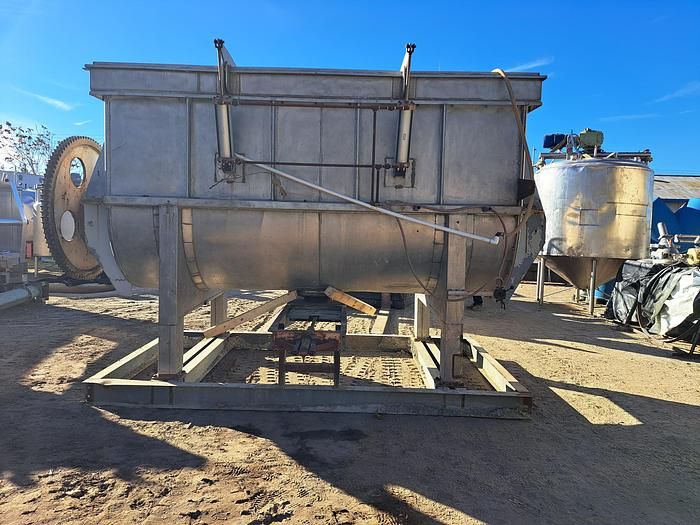

The mixer features a hinged cover with back rest
and pneumatically controlled cylinder to facilitate access.

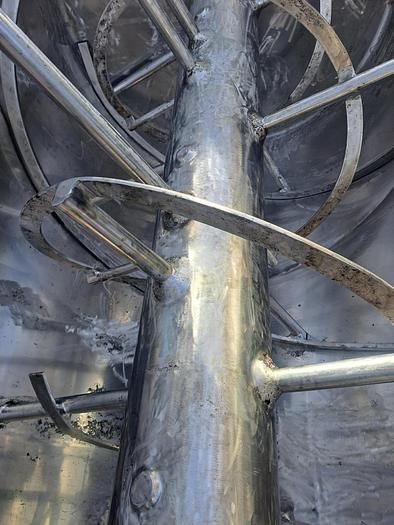

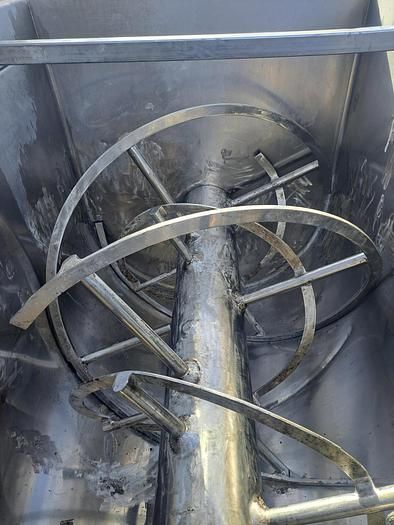

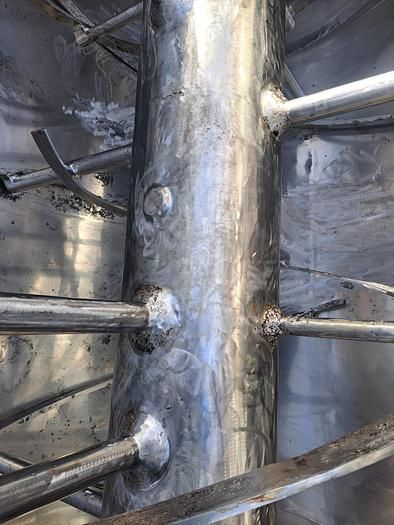

Ribbon assembly includes 15″ diameter solid stainless steel shaft
with 2″ wide x 3/4″ thick outer ribbons and a 2″ wide x 3/8″ thick inner ribbons,
including 2-1/8″ thick spokes and a trough shell thickness of 0.196″.
Driven by approximately 100 HP, 440V gearhead motor via roller chain.
Discharge includes knife-style pneumatic slide gate
with discharge height of 40″.

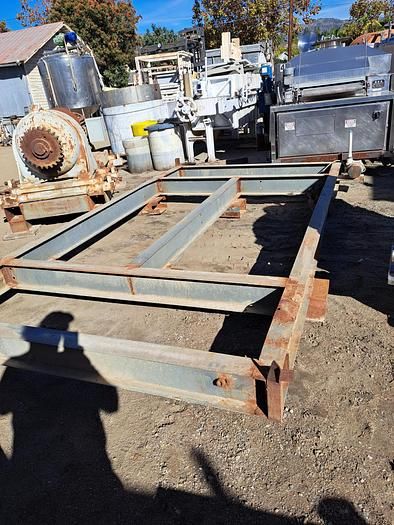

Mixer is secured to a stainless steel frame and legs.
