Sperotto rimar Multidecat MD 170 Cm Continuous Decatizing Machine

SPEROTTO RIMAR
MULTIDECAT 2
Continuous Decatising Machine
(1994year)
Cylinder Width 1900mm
Working Width 1700mm
Blanket Width 1800mm
Mechanical Speed 0 - 30m/min

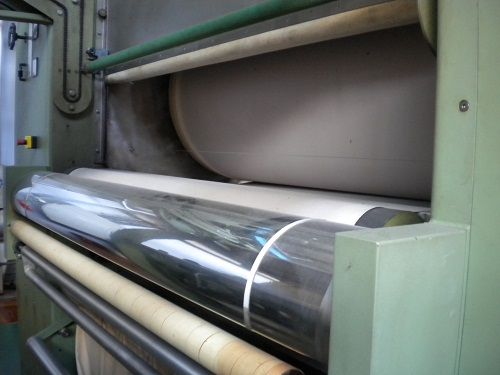

Decatising Cylinder Width 1200mm
Connected load 45kW
Average absorbed load 35kW

Steam:
- Required pressure 4 - 5 bar
- Consumption 400 kg/h

Compressed Air:
- Required pressure 7 - 8 bar
- Consumption 100 lt/h

Dimensions 4550 x 3790 x 2600mm ( LxWxH)
Complete with Anti-Static bars, feeding bench and plaiter for flat folds.

OPTIONS Included:

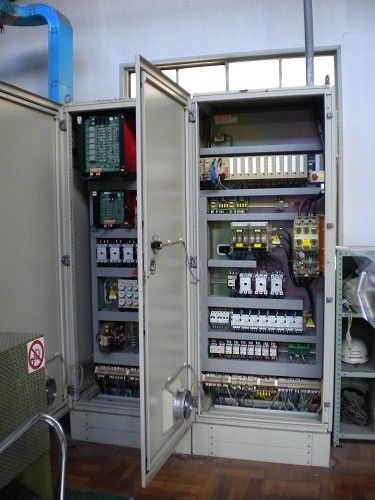

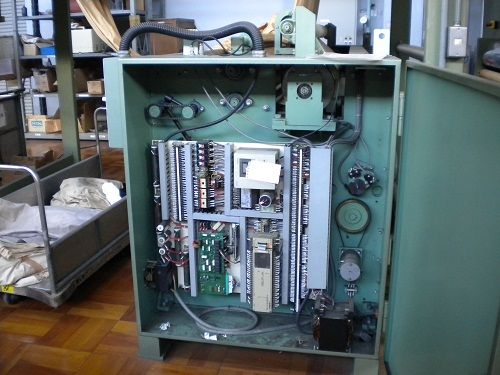

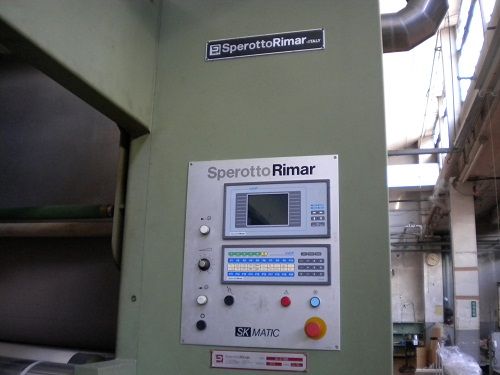

-MicroProcessor computerized programmer, complete with screen for the line SG/ZERO-M + MD/2
-Conditioning Unit of the cloth
-Cloth Brushing Unit
-Blanket Brushing Unit with double rotating brush
-Sleeve Brushing Unit

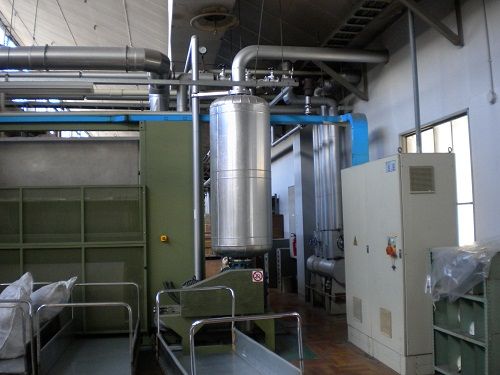

-Dust suction and collection unit
