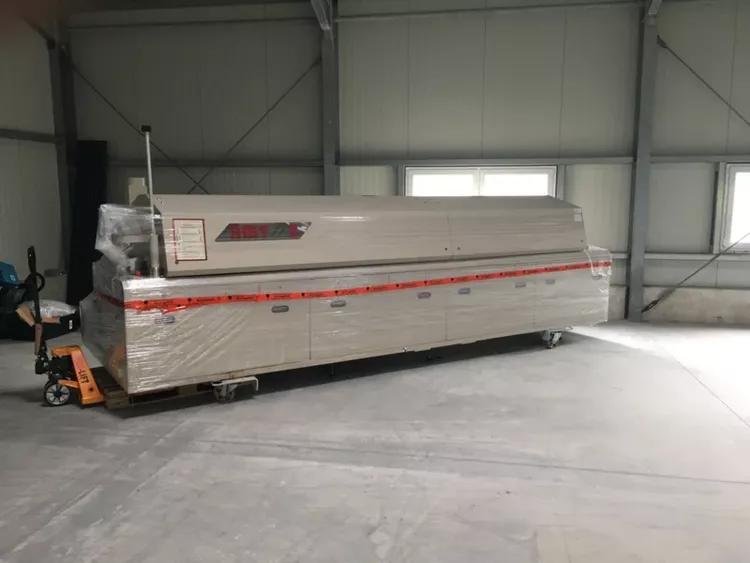

SMT Quattro peak S Reflow oven

SMT Quattro peak S Reflow oven in excellent condition.

Specifications:
Overall dimensions
Length: 4671.5 mm
Width: 1435 mm
Height (in delivery condition / incl. warning light): 2.) 1647 mm / 2233 mm
Inlet height, adjustable by customer: 2.) 830 ... 1030 ±20 mm

Weight approx. 2300 kg
Number / diameter foot: 10 / 80 mm
Max. floor loading: 750 kg/m²

Process area
Length: 4350 mm
Pre-heating zones: 3
Peak zone (top/bottom): 2 peak zones with 4 heating modules (2 top / 2 bottom)
Bottom heating modules pre-heating zones: 3
Heated tunnel length, total: 2598 mm
Active convection length: 2060.5 mm
Length of cooling zone: 1752 mm
Temperature measurement: NiCr-Ni sensors in the hot gas flow
Warm-up time: approx. 30 min.
Warm-up time with economy switch: approx. 60 min
Heat transfer: 100% forced convection
Process temperature (pre-heating zone/peak zone): max. 300 °C
(pre-heating zone) / 350 °C (Peak)

Transport chain conveyor
Working width usable with PCB support: 60 ... 510 mm
Usable working width with PCB support: PIN level ...-10 mm
Working direction: left-right
Fixed rail: front
Pass through height (top/bottom): 30/30 mm
Max. loading 3 kg/m

Conveyor speed 0.2 ... 3.0 m/min.
Average conveyor speed 0.7 ... 1.2 m/min.

Exhaustion 3.)
Suction pipe: 1 x Ø 200 mm
Required exhaust air at pipe (inlet): approx. 600 … 800 m3/h
Temperature of exhaust air at the pipe: < 50 °C
Internal exhaust air resistance of oven:3 - 8 mbar

Continuous sound pressure level < 70 dB(A)
Control unit CDIAS with RT 7

Nitrogen supply * 4.)
Connecting armature: R 3/8“ internal thread
Working pressure (at connecting armature): 6 ... 8 bar
N2-consumption, steady state condition and transport width 220 mm: approx. 9 m3/h
N2-consumption, full load and transport width 220 mm: approx. 15 m3/h
Readiness for the system (1000 ppm, N2 < 5 ppm O2) approx. 15 min.

Power supply
Connecting power supply: 3~N, PE 230 / 400 V, 50 Hz
Max. current consumption per phase: 95 A
Max. current consumption per phase with economy switch: 70 A
Power consumption during heat-up: 64 kW
Power consumption steady state condition: approx. 9 kW h
