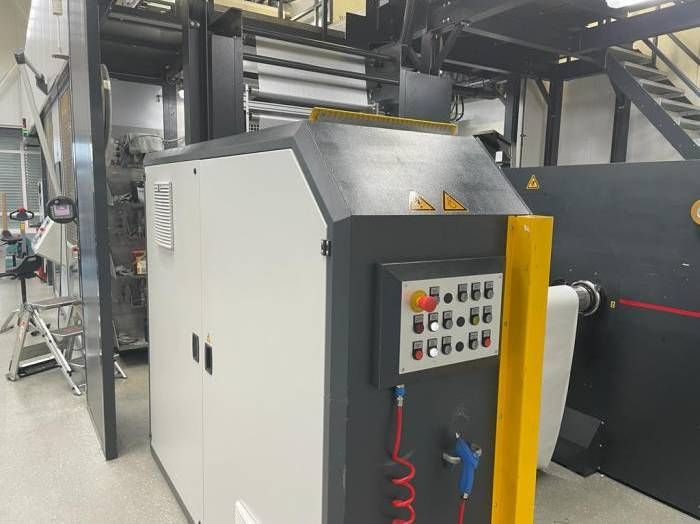

SMB WDB FD 10-6 6 1000 mm

Flexo Roll to roll machine
6 color UV printing
Material width: max. 1050 mm
Printing width: max. 1000 mm
Material thickness: PET, OPP, aluminum and composite materials 12 – 150 µm
Mechanical speed: 0 to 210 m/min.
production speed depending on the material,
Format length: 400 to 800 mm
Repeat adjustment: Gearless
Color system: inking unit 1-6  UV colors / inerting DW 1 6
Squeegee system: Closed chamber squeegee with pneumatic pump
Inching speed: max. 15 m/min.
Roll Diameter: 800mm
Roll weight: max. 1400 kg
Web tension: 20 – 350 N
UV drying: IST
6UV
Corona treatment device: 1 piece corona device - 3 KW Sonrhey
Video web observation : AVT 100% control camera
Side edge control : 1 piece web edge control
Edge sensor company BST
Compressed air : 6-8 bar (water/oil free)
With accessories, list on request
