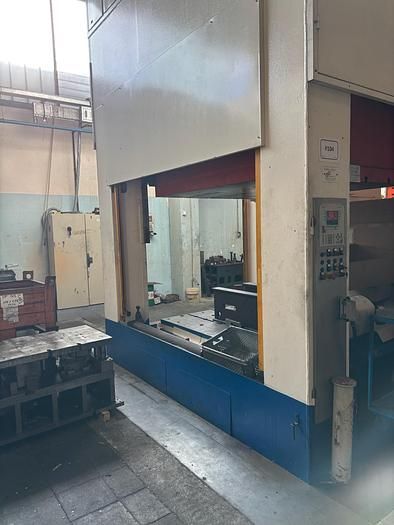

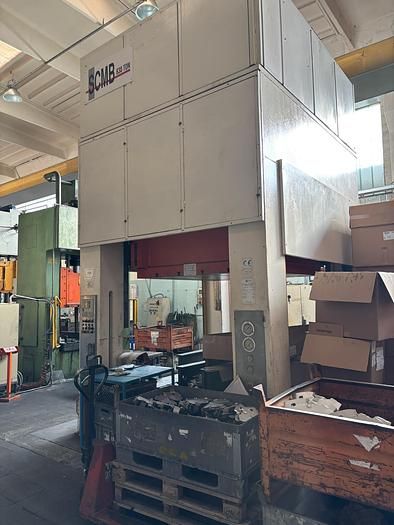

Schuler SCMB-SCHULER PHDM 630 630 Ton

SCMB-SCHULER PHDM 630
Year 2001

Ton 630
Table - width (mm) 2000x2000
Subtype (DM/CDC) 2M1C hydro
CE mark Yes
Revision 2015
Slide - stroke (mm) 630
Drive system (eccentric/link motion/knucle joint/hydraulic/screw fly) Oleodynamic
Slide - width (mm) 2000x2000
Push points 1
Sled - number of guides 8
Approach speed 300
Working speed at 50% 20
100% working speed 9,5
Ascent speed 180
Light pms (mm) 1430
Front light between uprights (mm) 2000
Side window between uprights (mm) 2000
Blank holder cushion - total force (ton) 200
Blank holder cushion - width x depth (mm) 1700x1700
Blank holder cushion - movement (hydraulic/pneumatic/hydropneumatic) Plumber
Blank holder cushion - number of cushions 1
Blank holder cushion - retarder Yes
Blank holder cushion - stroke (mm) 250
External dimensions - width (mm) 2950x3300
External dimensions - height above ground (mm) 5500
Motor power (kw) 75
Electrical panel conditions (working, missing, overhauled, to be overhauled) working
Photocells (front/rear) Yes
Safety protections (front/rear) Yes
Cylinder block valve Yes
Mechanical slide lock Yes
Conditions working
Slide - adjustable stroke (mm) 630
Weight (ton) 80
Foundation (cm) 1000
Electrical components - number of motors 2
Proportional valves Yes
