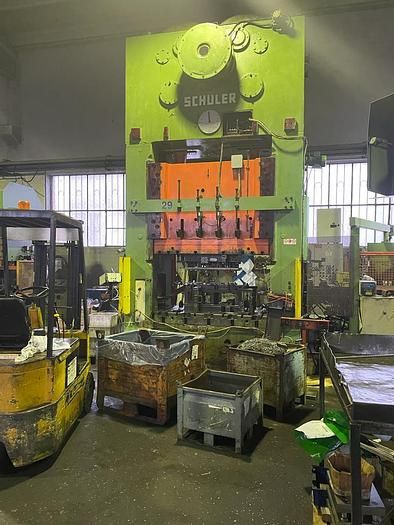

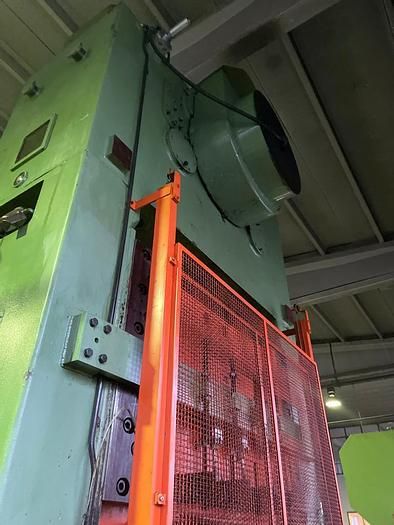

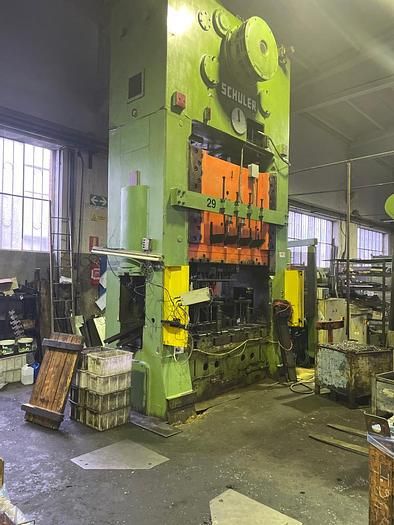

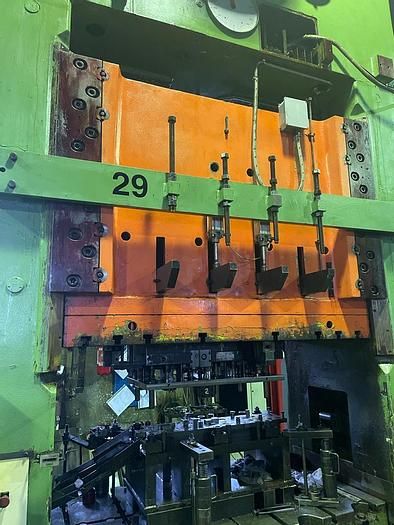

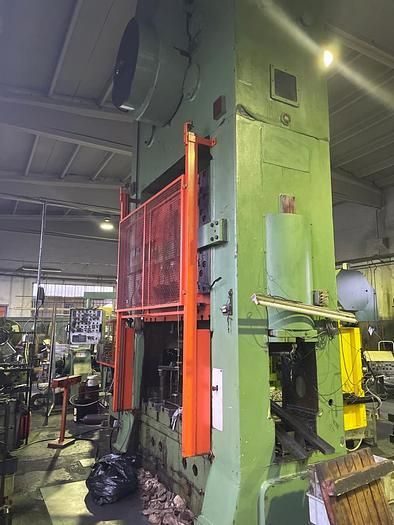

Schuler P2E25Q-315/1,8 315 Ton

SCHULER P2E25Q-315/1,8
Year 1977

Ton 315
Table - x (mm) 1800
Slide - stroke (mm) 305
Table - width (mm) 1800
Number of strokes/minute 0/40
Frame (H/C) H FRAME
Inspection 2010

Activation system (eccentric/link motion/knucle joint/oleodynamic/screw fly) ECCENTRIC
Table - y (mm) 1300
Conditions WORKING
Number of strokes / min 0/40
Slide - registration (mm) 200
Subtype (DM / CDC) DOUBLE UPRIGHT
Slide - y (mm) 1300
Slide - x (mm) 1800
Piston rods 2
Slide - number of guides 4
Tdc span (mm) 800
Slide - adjustament system (guided/sphere/wedge) GUIDED
Revision 2010

Drive system (eccentric / link motion / knucle joint / hydraulic / screw fly) ECCENTRIC
Lateral window (mm) 500
External dimensions - X (mm) 3000
Front span between the pillars (mm) 1850
Table - depth (mm) 1300
External dimensions - Y (mm) 2000
External dimensions - height (mm) 5500
Electrical components - number of motors 2
Motor power (kW) 45

Electrical panel conditions (working/missing/complete inspection/inspection required) NEW (2010)
Light barriers (frontal/posterior) FRONTAL

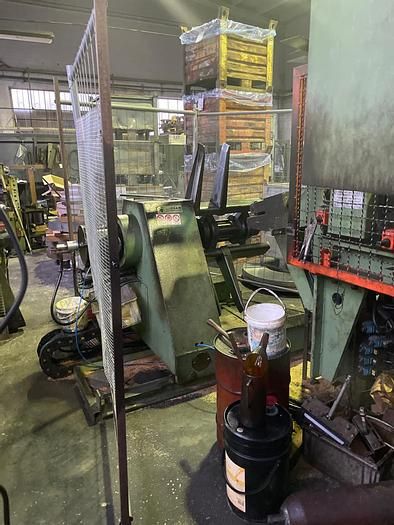

Accessories / other data CISAM LINE 400X400X5
Safety protections (frontal/posterior) POSTERIOR
Slide - width (mm) 1800
Slide - depth (mm) 1300
Push points 2
Sled - number of guides 4
Slide - adjustment system (guided / ball / wedge) GUIDED
Light pms (mm) 800
External dimensions - width (mm) 3000
Side window between the uprights (mm) 500
Front gap between uprights (mm) 1850
External dimensions - depth (mm) 2000
External dimensions - height above ground (mm) 5500
Motor power (kw) 45
Weight (ton) 35
Electrical components - No. of motors 2
Conections electrical panel (working, missing, overhauled, to be overhauled) NEW (2010)
Photocells (front / rear) FRONTAL
Safety protections (front / rear) REAR
