Ingolstadt, Schubert & Salzer RL 10-7600 Open end
AMERICA North (USA-Canada-Mexico)

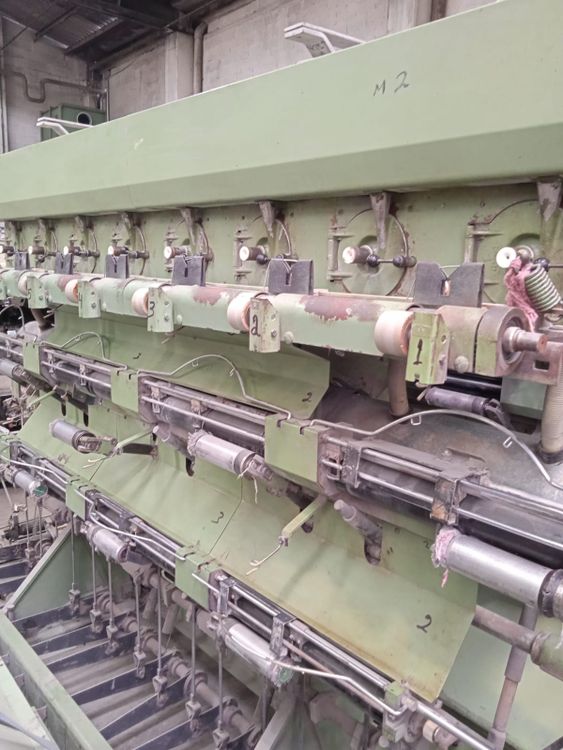

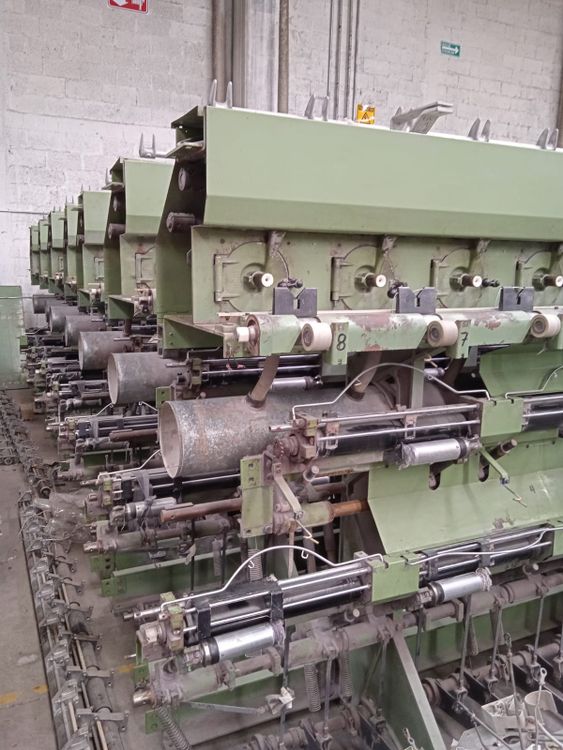

O.E spinning frame, 56 rotors, 110 Mm rotor, 8 sections of 7 positions each.
1-RANGE OF COUNTS: Nm 0.8-12
2-FIBER LENGTH 10-12 Mm
3-SPEED UP TO 150 MTS/MIN
4- FIBER POSSIBILITY: COTTON, WOOL, SYNTHETICS, REGENERATED FIBERS
5-VERY GOOD YARN UNIFORMITY
6-150 Mm TAKE UP ON CYLINDRICAL TUBES UP TO 300 Mm DIAMETER AND 3.5 KGS
7-AUTO DOFF CAPABILITY
8-CONSTRUTION 1-7 SECTIONS OF 8 ELEMENTS EACH
9-WIRE WOUND OPENING ROLL 125 Mm DIAMETER
10-OPENING ROLL SPEEDS FROM 2000-6000 RPM IN 500 MTS/MIN SCALES
11-ROTOR RPM: 6500-35,000 RPM
12-2 TAKE UP/POSITION, GUARANTEING LESS POSITON STOPS
13-FEEDING SLIVER: 4-10 Grs/METER
14-CANS UP TO 1000 Mm DIAMETER
15-OVERALL LENGTH FOR 56 POSITIONS: 20,350 Mm
16-OVERALL WEIGHT OF MACHINE: 10,300 Kgs
