Schott & Meisner OMEGA, DRUM DRYER

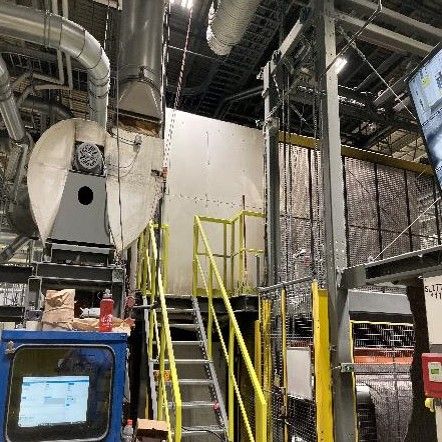

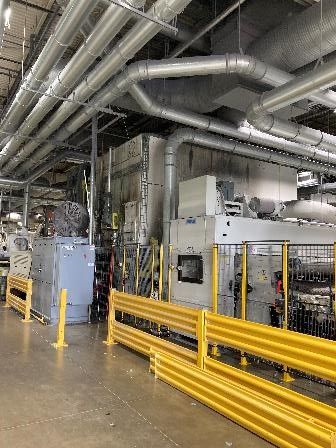

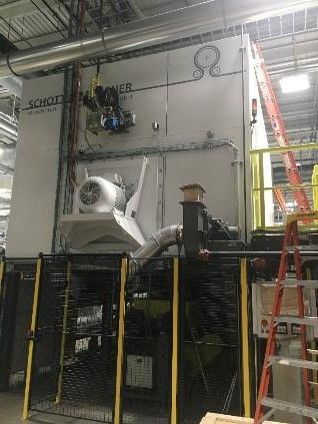

SCHOTT & MEISSNER DRUM-DRYER

Type of treatment: Convection heating by means of air through treatment with hot air
Number of drums: 1
Drum diameter: 1.600 mm
Design drum surface: Stainless steel perforated plate (1.4401)
with 3 mm perforation with approx. 32% open surface
Drum drive: Bevel gear motor 1.27 kW, frequency controlled
Number of omega rollers: 2, positioned below the drying drum (1x infeed roller, 1x extraction roller)
Design Omega rollers: Chromed steel rollers 285 mm
Web width: 3.400 – 4.000 mm
Fabric width adjustment: Pinning system with manually adjustable pinholes
Circulating air volume: max. 100.000 m*/h
Heating method: direct heating by means of forced-air gas burner type Maxon OP 415 and circulating air mixing chamber
Heating medium: Natural gas
Heating capacity: max. 750 kW (2.6 million BTU)
Recirculating air Temperature: 100 – 220°C

Without control system!
