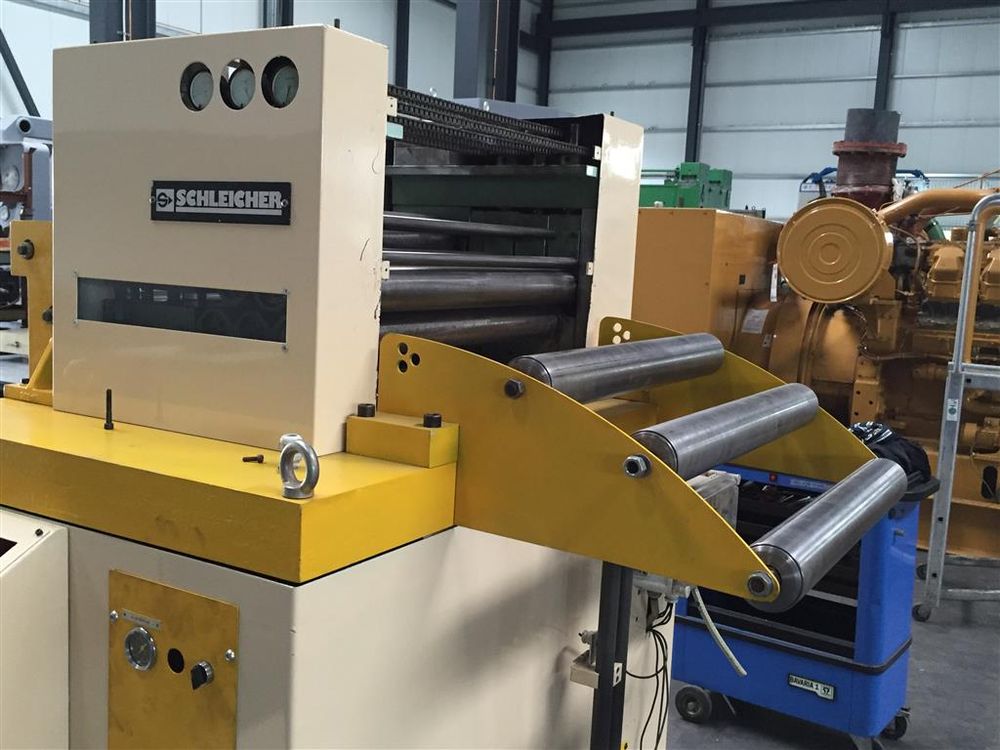

Schleicher RML 6-70/160

Roller leveller
Schleicher RML 6-70/160
year of manufacture: 1981

material width:
650 mm
material thickness:
0,6 - 1,0 mm
no. of straightening rolls:
oben/up/arriba:3
no. of straightening rolls:
unten/down/abajo:3
diameter of upper rolls:
Ø 71 x 690 mm
diameter of lower rolls:
Ø 71 x 690 mm
throughput speed:
50 m/min
height over floor:
1400 mm
total power requirement:
14 kW
weight of the machine ca.:
1,4 t
dimension machine approx.LxWxH:
1,35 x 1,4 x 1,8 m

3 pcs feeding rolls Ø 80 x 680mm, not adjustable, revolving
upper rolls: 3pcs bending rolls Ø 71 x 690mm, adjustable approx.
10mm, revolving and 1 pc outlet guide roll Ø 160 x 690mm, adjustable, driven via lower roll
lower rolls: 3 pcs bending rolls Ø 71 x 690mm, not adjustable
driven and 1 pc outlet guide roll Ø 160 x 690mm, adjustable, driven via chain drive
outlet rolls: 1x lower- and upper roll Ø 80 x 760mm, side limit adjustable, revolving
