Marzoli, Savio Complete spinning cotton combed 7584 spindles plant

It can produce any count from 12/1 to 40/1 and also twisted yarn.
Our standard count was 30/1 carded and in this specific count we could produce 2.400 kgs in 24H.

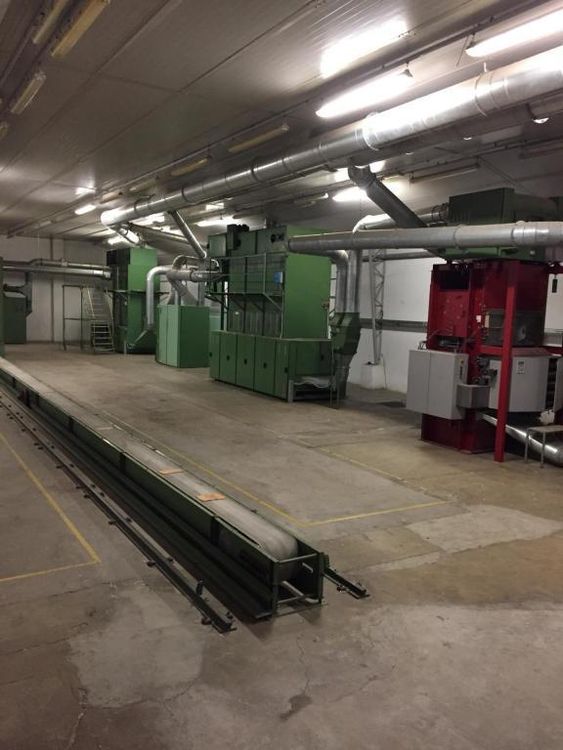

OPENER LINE :
N° 1 MARZOLI BALE PLUCKER MODEL B 12 EL RAIL 25,00 MT SPAN WORK 1750 MM YEAR 1992

MAGNETIC IN EXIT WITH FUN AND METAL DETECTOR MODEL TEXTAMENT WITH BOX AND PNEUMATIC DEVICE YEAR 1992

N° 1 MIXER MARZOLI MODEL B 141-3 N° CELLS SPAN WORK 1200MM WITH GAGE CONDENSER MODEL B 41/ 2 WITH FUN YEAR 1976

N° 1 MIXER MARZOLI MODEL B 142-3 N° CELLS SPAN WORK 1200MM WITH GAGE CONDENSER MODEL B 41/ 2 WITH FUN YEAR 1987

N° 1 OPENER RIETER MODEL B 60 UNIFLEX SPAN WORK 1200 YEAR 1998 OPEN ROLLER WITH TIPS

N° 1 OPENER RIETER MODEL B 11 UNICLEAN YEAR 1998

N° 1 FIBER COLOR DETECTOR USTER OPTISCAN WITH GAGE CONDENSER MODEL LWSA

THE LINE ARE COMPLETE WITH TUBE, DEVIATOR AND PIPES
VOLT 380 50 HZ

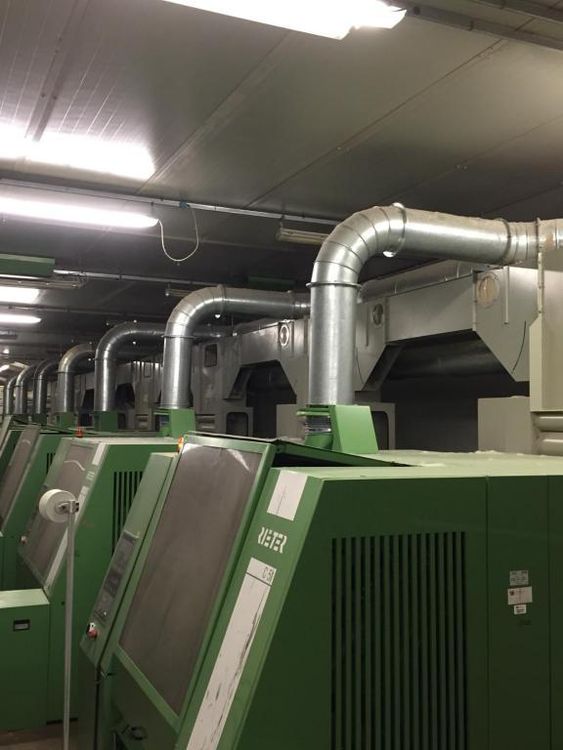

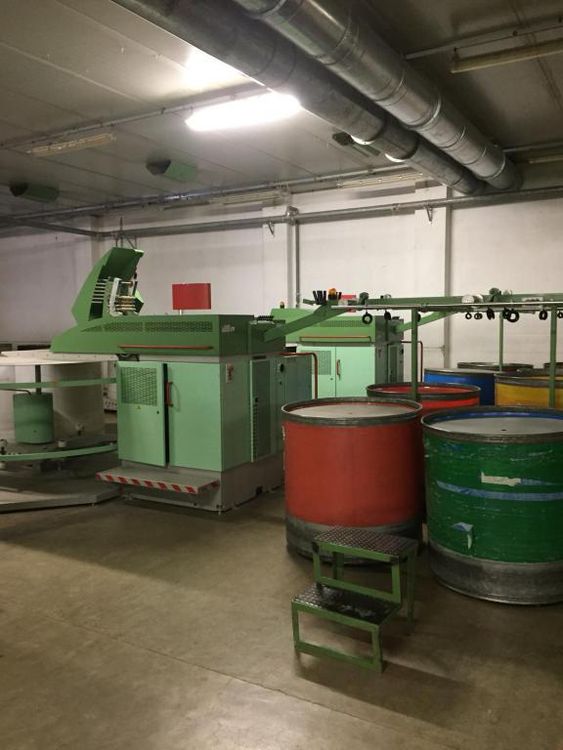

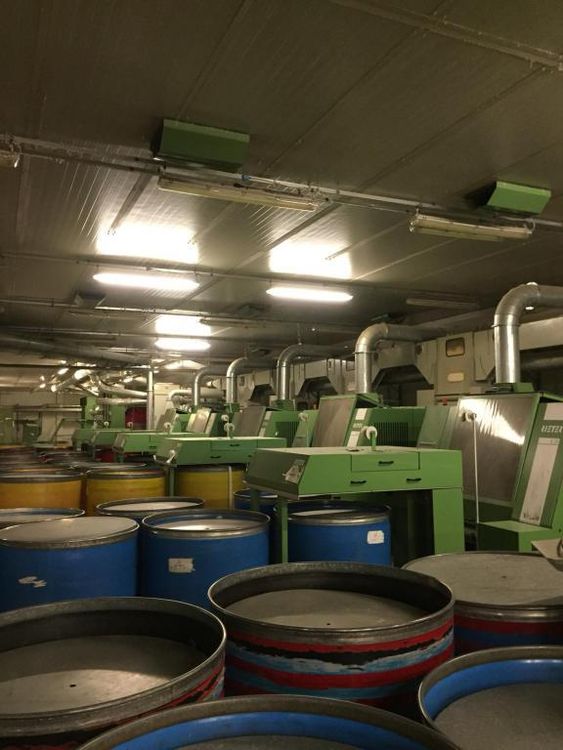

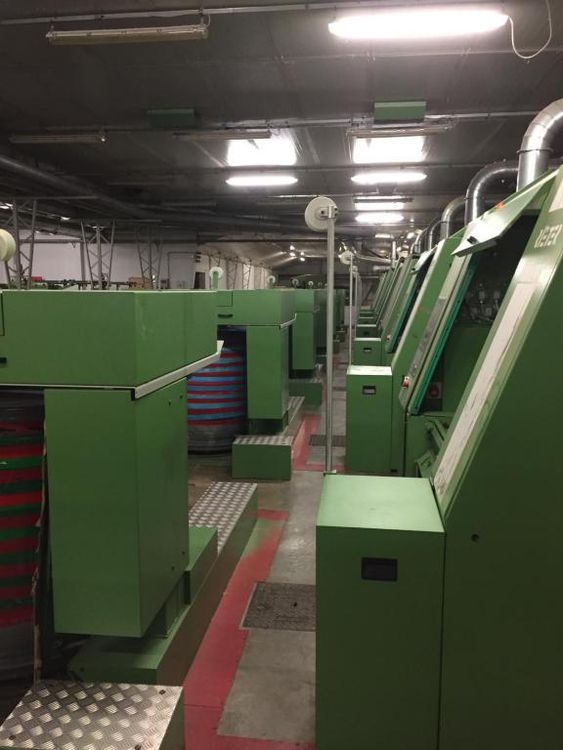

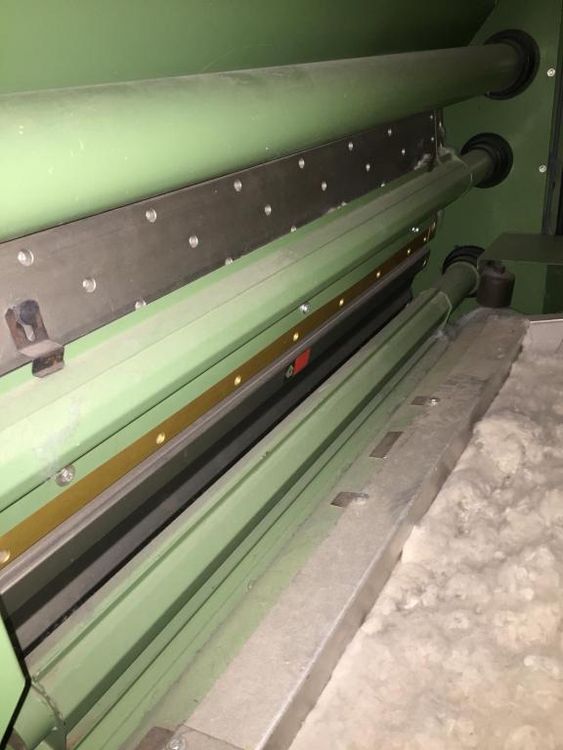

CARD LINE

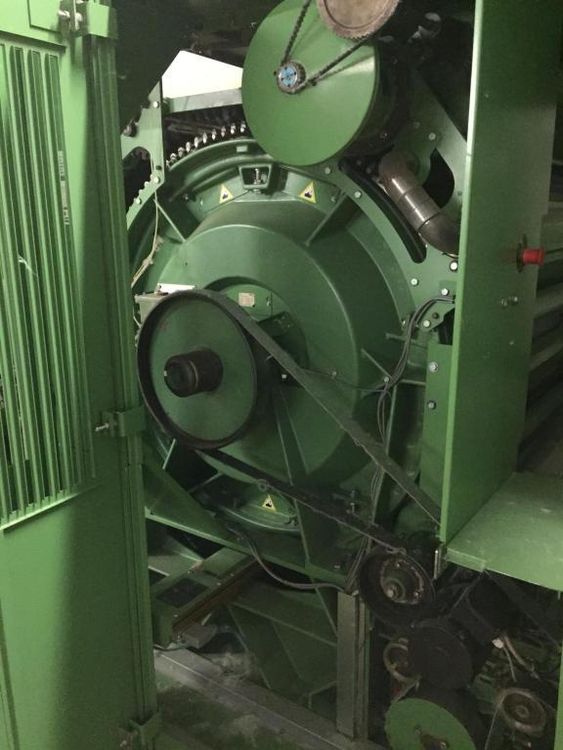

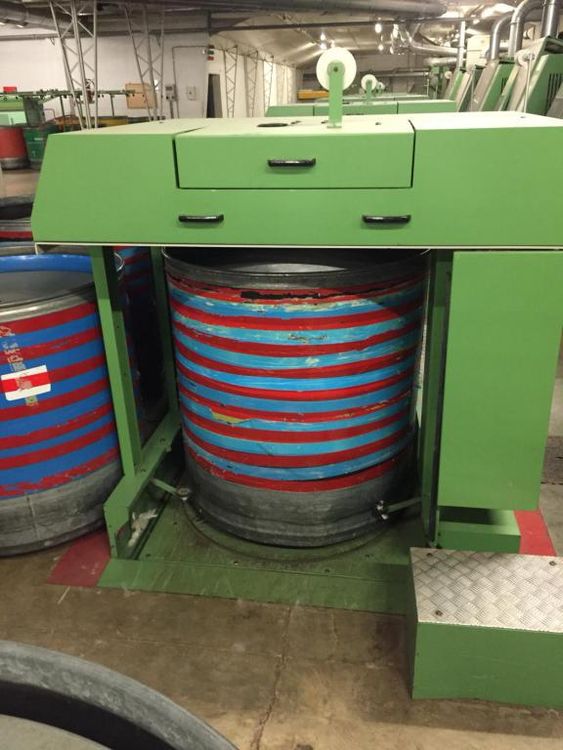

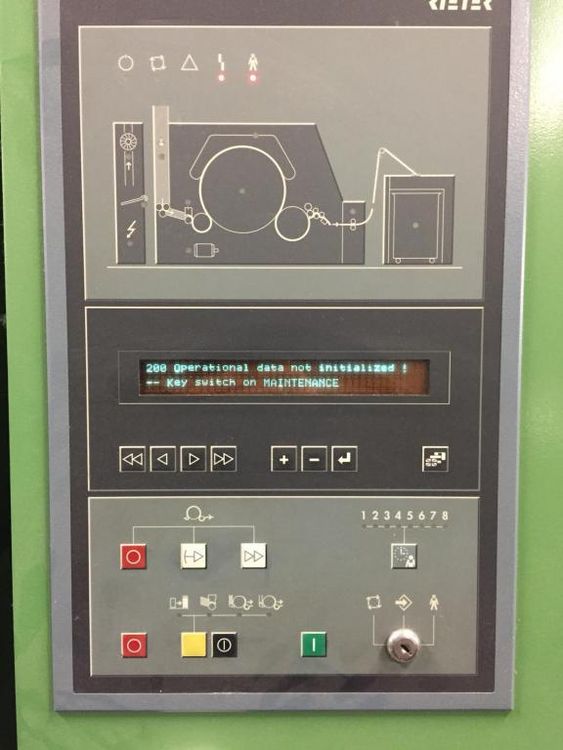

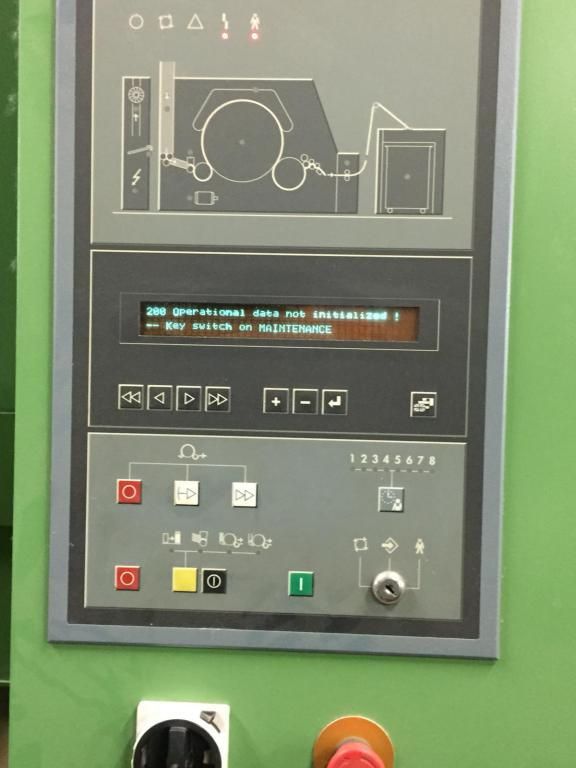

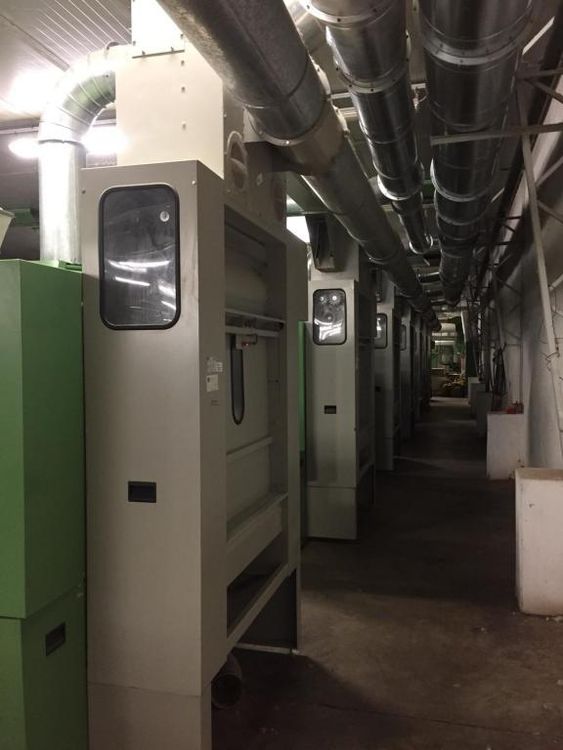

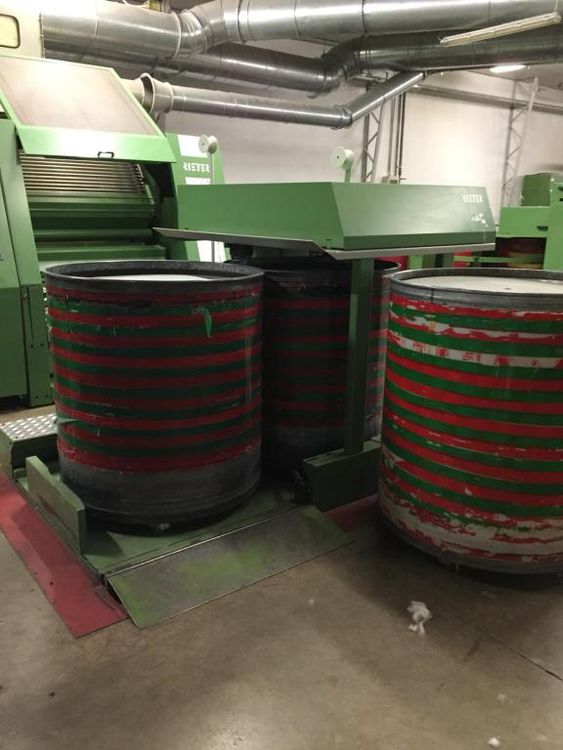

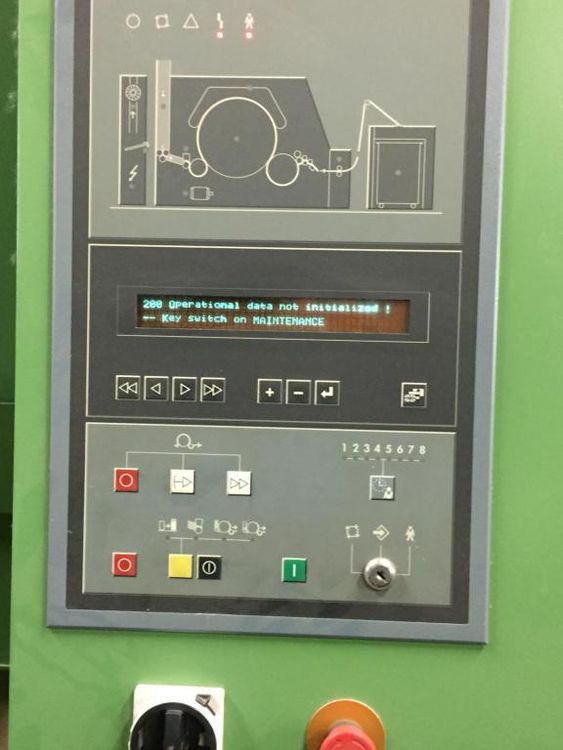

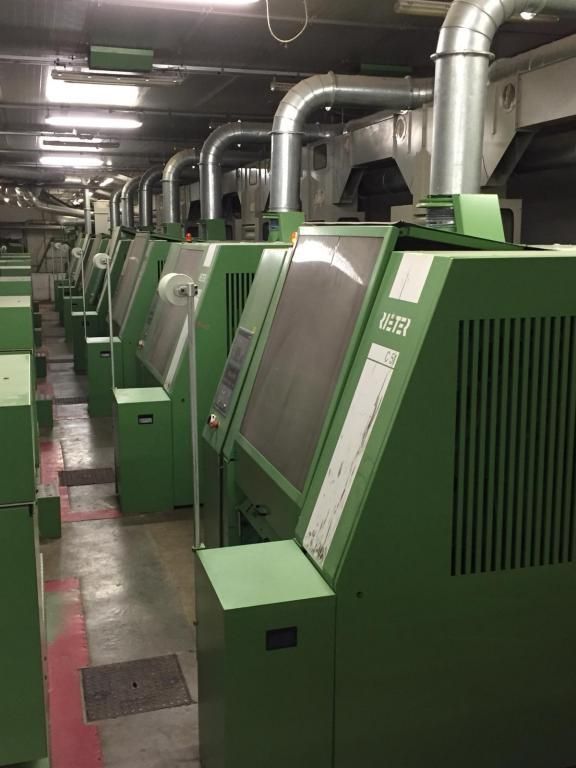

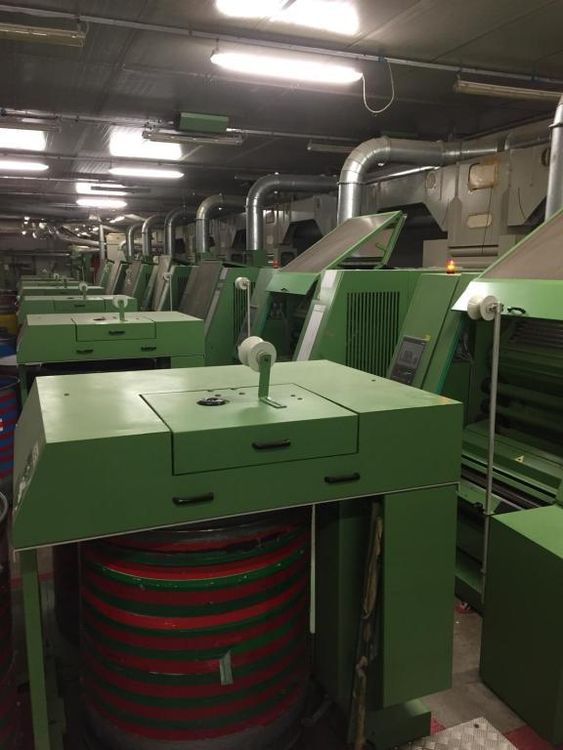

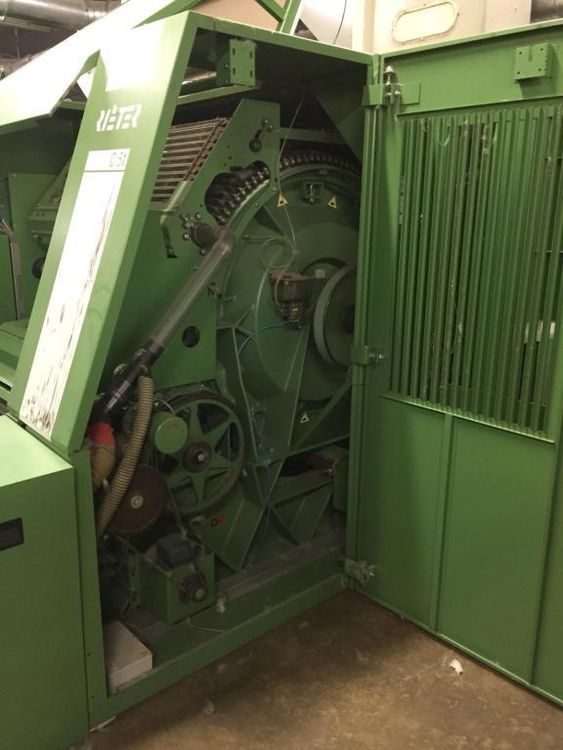

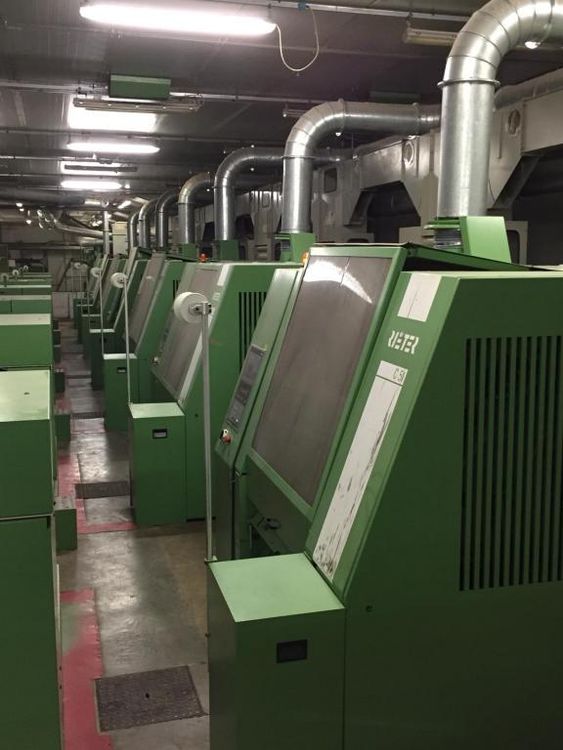

N° 7 CARD RIETER MODEL C 51 AUTOMATIC CANS CHANGHER EXIT CANS 40” X 45” WITH WHELLS

AUOLLEVER
SILOS MODEL A70 WIRE FOR COTTON TOSIN CARD MODEL MPO T 069/ 4X2 -LL / DOFFER TOSIN CARD TYPE D053/5

N° 11 FLAT STATIONARY AT FRONT TYPE TOSIN CARD C 380 / 520 P
N° 4 FLAT STATIONARY AT BACK TYPE TOSIN CARD C 380 / 520 P

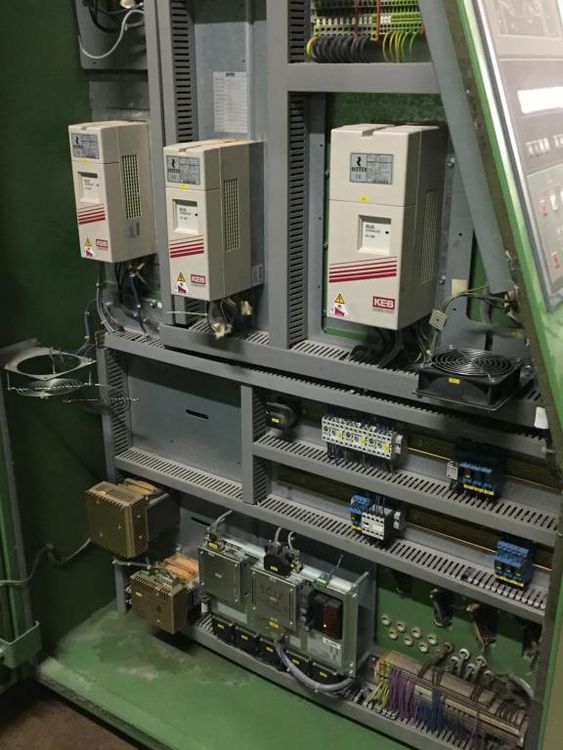

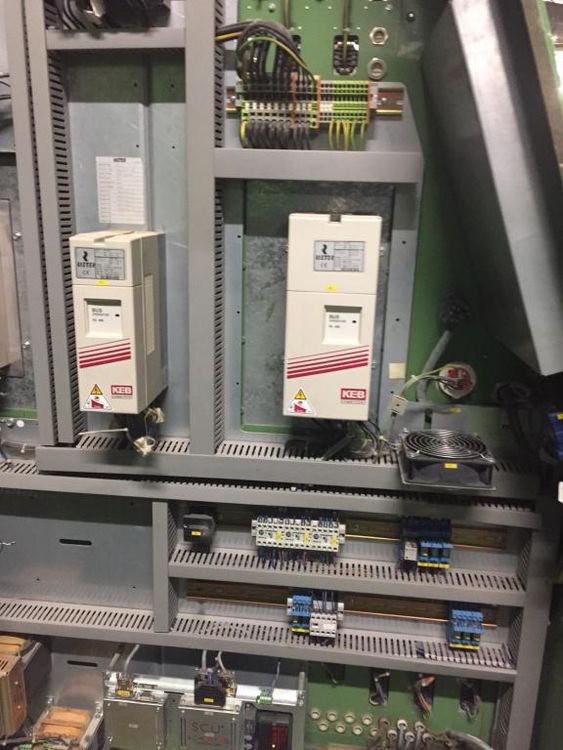

KEB INVERTER YEAR 1998 (FULL PLATE NUMBERS AVAILABLE)
VOLT 380 50 HZ

ROVING SECTION
N° 2 ROVING FRAME ZINSER MODEL 670 ROVEMAT N° 120 SPINDLES EACH
ARM MEDIUN FOR COTTON DRAFT MODEL SKF PK 1500 UBE 16” X 6 “
CREEL AT N° 3 ROLLER FEEDING FOR CANS IN ALIMENTATION SIZE 20” TRAVELLING CLEANER SYSTEM
MAIN HEAD LEFT/RIGHT YEAR 1998 NO AUTOMATIC DOFFING FULL PLANTE NUMBERS AVAILABLE)
VOLT 380 50 HZ BONFIGLIOLI VECTRON INVERTER 42 KWA

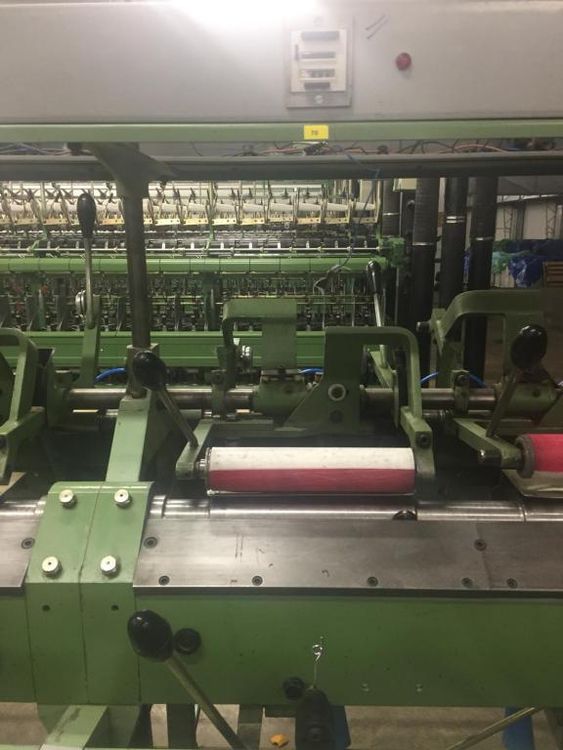

COMBERS SECTION

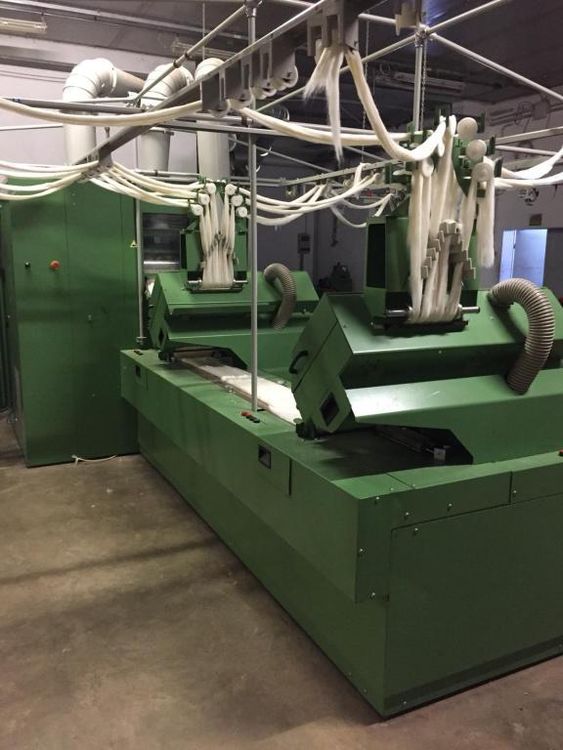

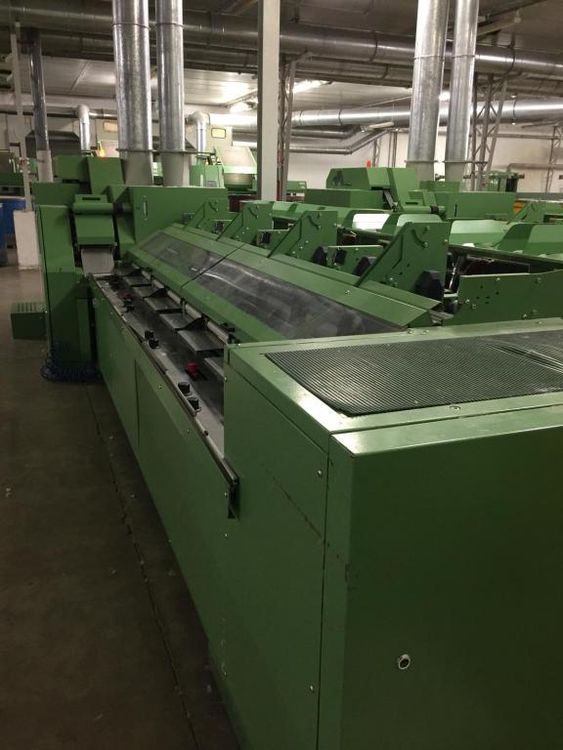

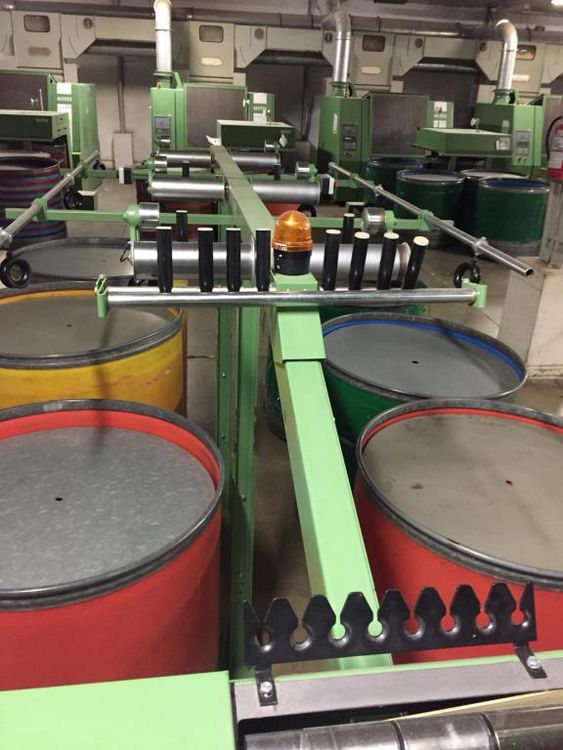

N° 4 COMBER RIETER MODEL E 70 R N° 8 HEADS EXIT CANS 24” X 45” WITH WHEELS AUTOMATIC CANS CHANGER
PNEUMATIC ROOL RIBALTATION TUBE IN ALIMENTATION 300MM DIAMETER INTERIOR 180 MM
YEAR 1998 COMBING GRAF CIRCULAR MODEL GRAF PRIMACOMB TYPE 5015 / TOP COMB RITER R 1-9 TOP GRAF
AIR EXUST ON EXIT ON THE TOP WASTE COLLECTION CENTRALIZED VOLT 380 50 HZ

N° 1 UNILAP RIETER MODEL E 30 N° 2 CRELL IN ALIMENTATION FOR N° 24 CANS
YEAR 1998.
AUTOMATIC DOFFING EXIT TUBE 300 MM DIAMETER INTERIOR 180 MM EXTERIOR 200 MM
AUTOMATIC TUBE ALIMENTATION VOLT 380 5° HZ

N° 1 AUTOMATIC TUBE TRANSPORTATION RIETER MODEL SRVOLAP LE6 TO ALIMENTATION ALL COMBERS INSTALLATION
RAIL ALIMENTATION 18,00 MT YEAR 1998 VOLT 380 50 HZ
(FULL PLATE NUMBER AVAILABLE )

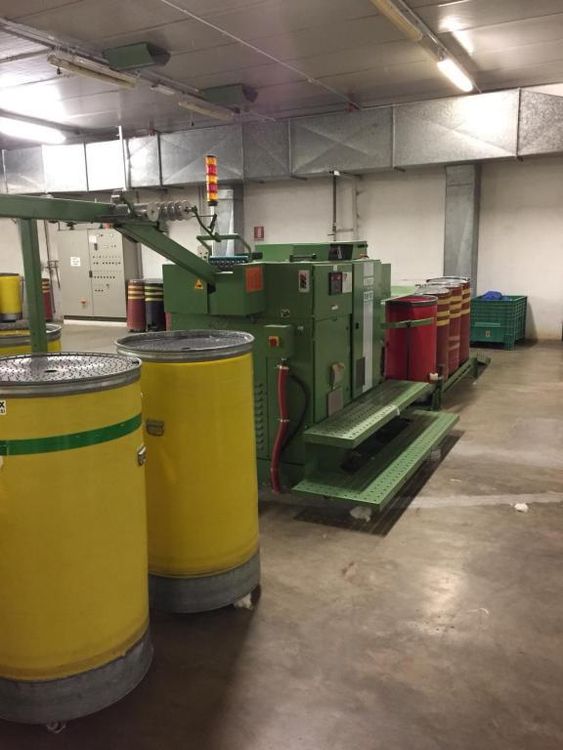

DROWING SECTION

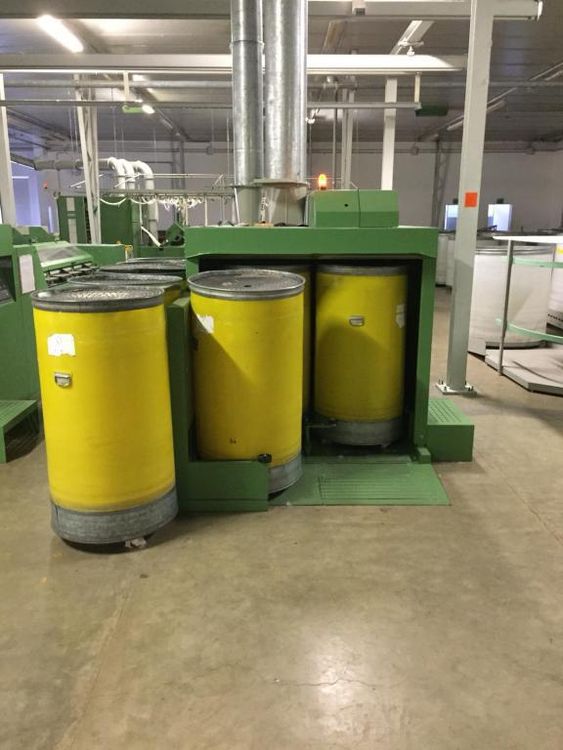

N° 2 DROWING FRAME RIETER MODEL SB D 10 NOT AUTOLLEVER EXIT CANS
POWER CREEL IN ALIMENTATION FOR CANS 40” N° 6 DUBBLING YEAR 1998 VOLT 380 50 HZ

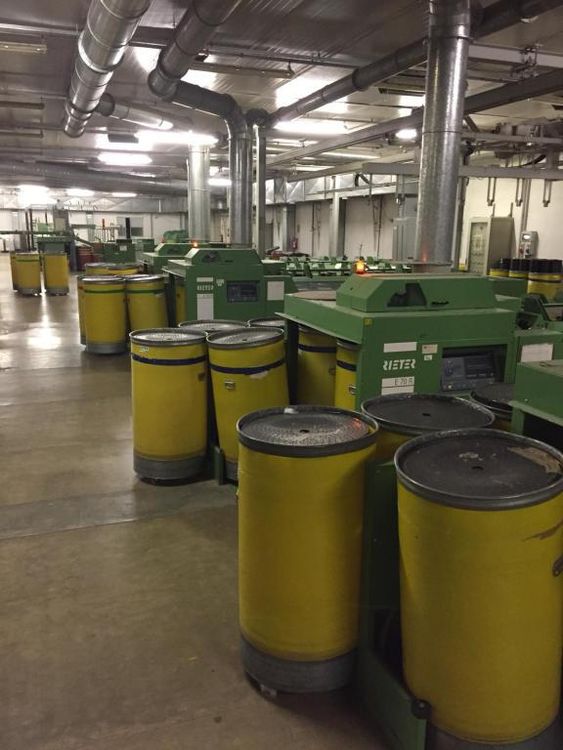

N° 2 DRAWING FRAME RIETER MODEL RSB 951 AUTOLLEVER SLIVER MONITOR EXIT CANS
20” X 42” WITH WELLS SLIVER MONITOR
VEEDER -ROOT PRODUCTION DATA CONTROL
POWER CREEL IN ALIMENTATION FOR CANS N°24” N° 8 DUBBLING YEAR 1995 VOLT 380 50 HZ
(FULL PLATE NUMBER AVAILABLE )

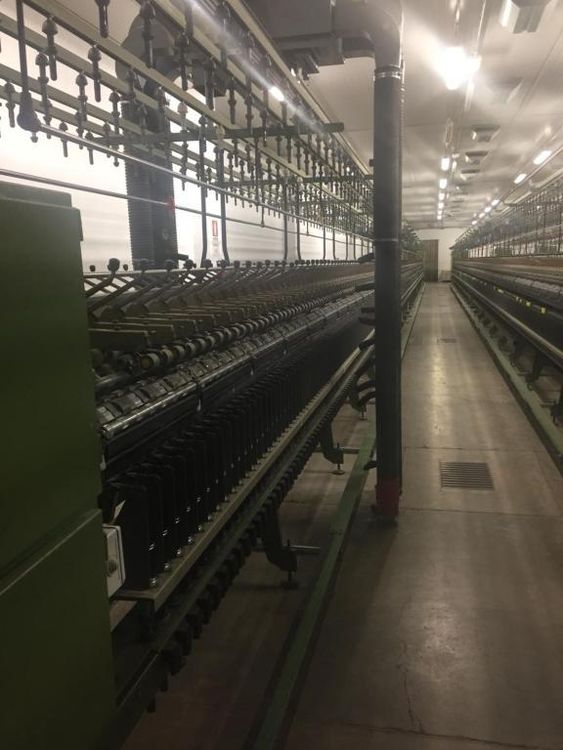

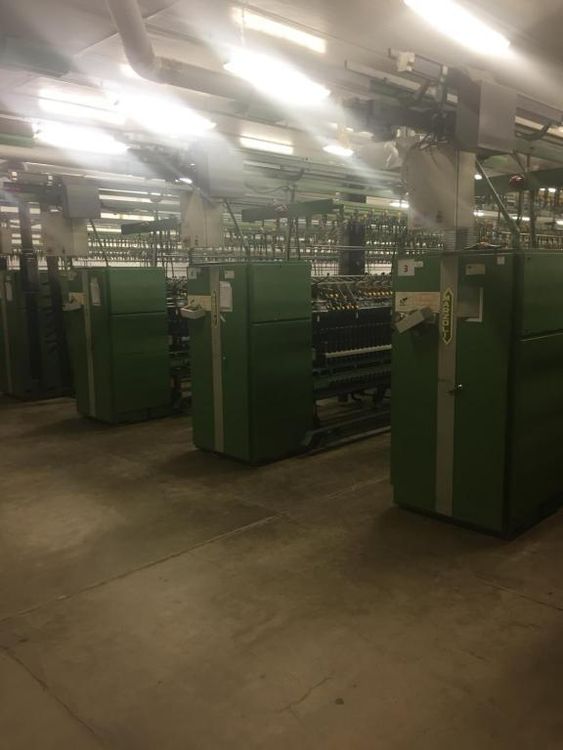

SPINNING SECTION

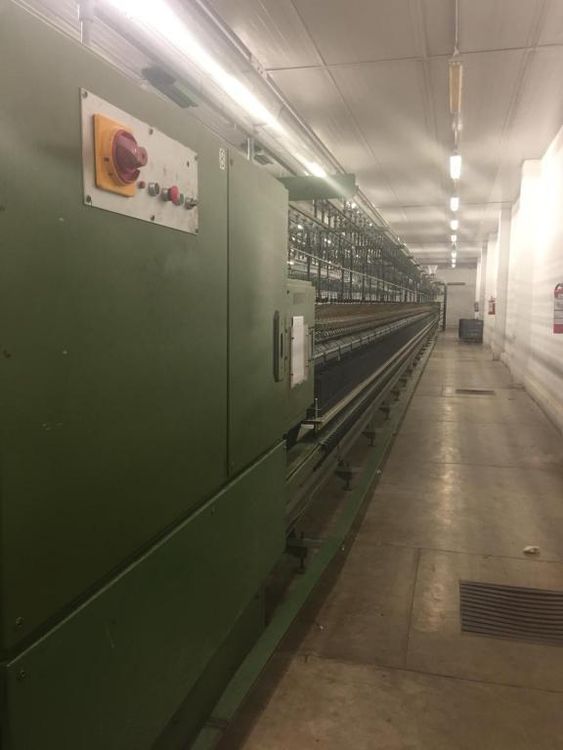

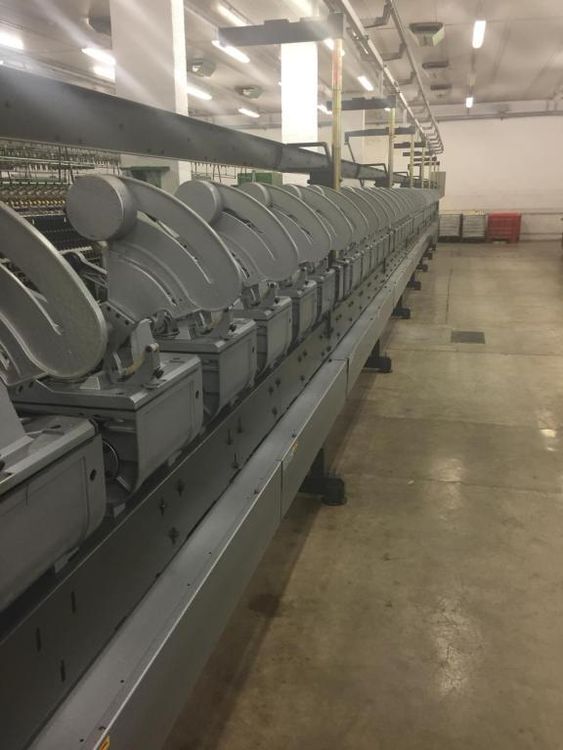

N° 2 RING SPINNING MARZOLI MODEL NSF 2 L N° 1008 SPINDLES EACH YEAR 1990
RING DIAMETER 45 MM ARM MEDIUM TUBE 230MM DRAFT SKF MODEL PK 235
GAUGE 70 MM
MANUAL DOFFING, MAGITEX TRAVELLER CLEANER SYSTEM CYLINDER DRAFTS
27 MM DRAFT 35 MM
TANGENTIAL BELT YARN CUTTING MAGITEX TRAVELLER CLEANER VOLT 380 50 HZ

N°4 RING SPINNING MARZOLI MODEL NSF/ L N° 936SPINDELS EACH YEAR 1987
RING DIAMETER 45 MM ARM MEDIUM TUBE 230 MM DRAFT SKF MODEL PK 235 GAUGE 70 MM
MANUAL DOFFING, MAGITEX TRAVELLER CLEANER SYSTEM CYLINDER DRAFTS 27 MM DRAFT 35 MM
TANGENTIAL BELT YARN CUTTING MAGITEX TRAVELLER CLEANER VOLT 380 50 HZ

N°2 RING SPINNING MARZOLI MODEL NSF N° 912 SPINDLES EACH YEAR 1980
RING DIAMETER 48 MM ARM MEDIUM TUBE 260 MM DRAFT SKF MODEL PK 235 GAUGE 75 MM
MANUAL DOFFING, MAGITEX TRAVELLER CLEANER SYSTEM CYLINDER DRAFTS 27 MM DRAFT 28 MM
TANGENTIAL BELT YARN CUTTING MAGITEX TRAVELLER CLEANER VOLT 380 50 HZ

WINDER SECTION

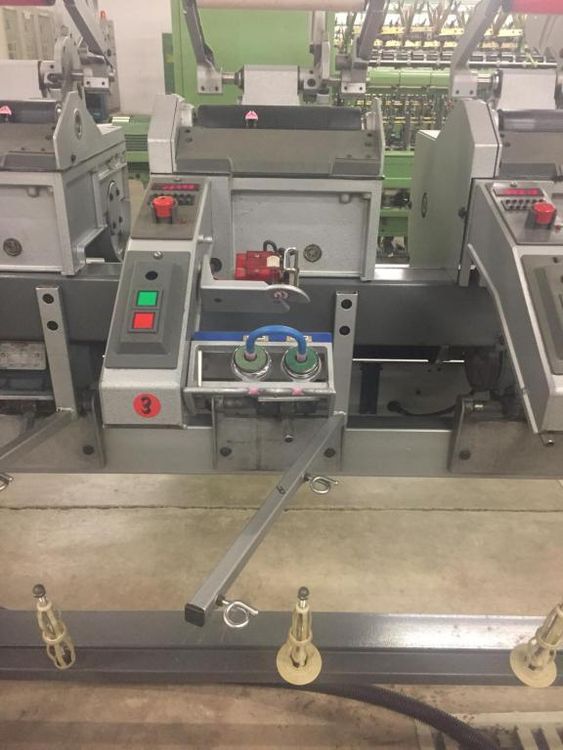

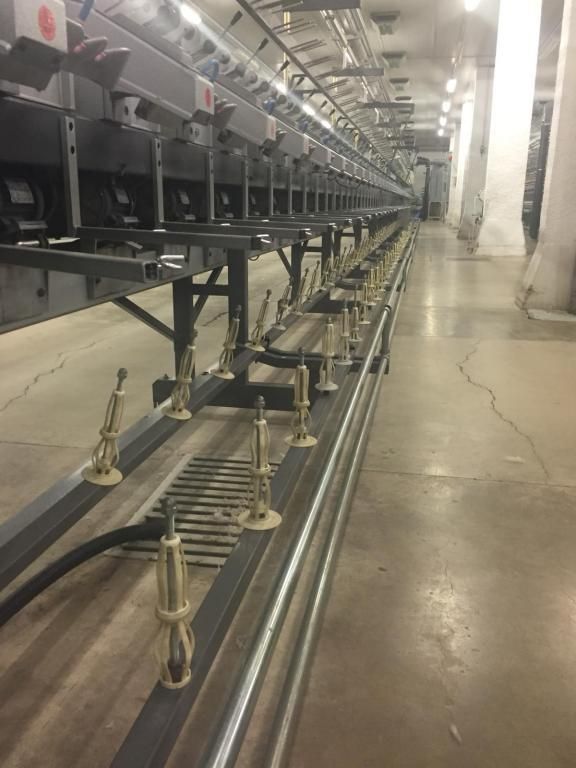

N°1 WINDER SAVIO MODEL ESPERO E YEAR 1998
N° 32 SPINDLES DRUMS AT 2 ROUNDS ASYMMETRICAL EXIT 6” 4° 20
WAXING DEVICE KNOTTER MODEL MESDAN 490 L
COUNT METER
YARN CLEANER MODEL PAYER P 551 AUTOMATIC ALIMENTATION WITH SMART FEEDER MODEL

N° 1 TROLLEY FOR CONE MAIN HEAD LEFT MAGITEX TRAVELLER CLEANER VOLT 380 50 HZ

N° 1 WINDER SAVIO MODEL ESPERO E YEAR 1995
N° 32 SPINDLES DRUMS AT 2 ROUNDS ASYMMETRICAL EXIT 6” 4° 20 WAXING DEVICE KNOTTER MODEL MESDAN 492
COUNT METER
YARN CLEANER MODEL LOEPFE YARN MASTER TYPE 930 H AUTOMATIC ALIMENTATION WITH SMART FEEDER MODEL

N° 1 TROLLEY FOR CONE MAIN HEAD RIGHT MAGITEX TRAVELLER CLEANER VOLT 380 50 HZ

N° 1 WINDER SAVIO MODEL ESPERO E YEAR 1990

N° 40 SPINDLES DRUMS AT 2 ROUNDS SYMMETRICAL EXIT 6” 4° 20 WAXING DEVICE KNOTTER MODEL MESDAN 490 L

COUNT METER:
YARN CLEANER MODEL LOEPFE YARN MASTER SPECTRA NO COLORS FIBER DETECTION AUTOMATIC ALIMENTATION WITH SMART FEEDER MODEL

N° 1 TROLLEY FOR CONE MAIN HEAD LEFT MAGITEX TRAVELLER CLEANER VOLT 380 50 HZ

N°1 WINDER SAVIO MODEL ESPERO E YEAR 1993

N°32 SPINDLES DRUMS AT 2 ROUNDS ASYMMETRICAL EXIT 6” 4° 20 WAXING DEVICE KNOTTER MODEL MESDAN 490 L

COUNT METER
YARN CLEANER MODEL PAYER P 551 YARN MASTER TYPE 930 H AUTOMATIC ALIMENTATION WITH SMART FEEDER MODEL

N° 1 TROLLEY FOR CONE MAIN HEAD RIGHT LUWA TRAVELLER CLEANER
VOLT 380 50 HZ

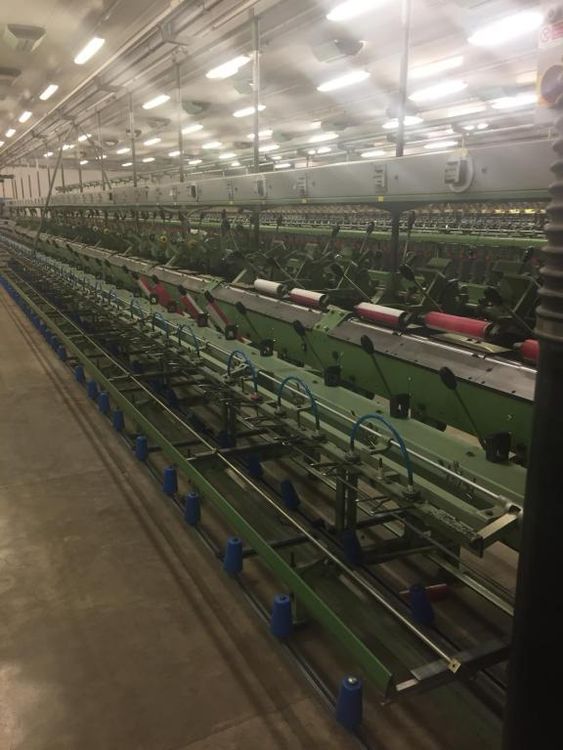

TWIST SECTION N° 1392 SPINDLES

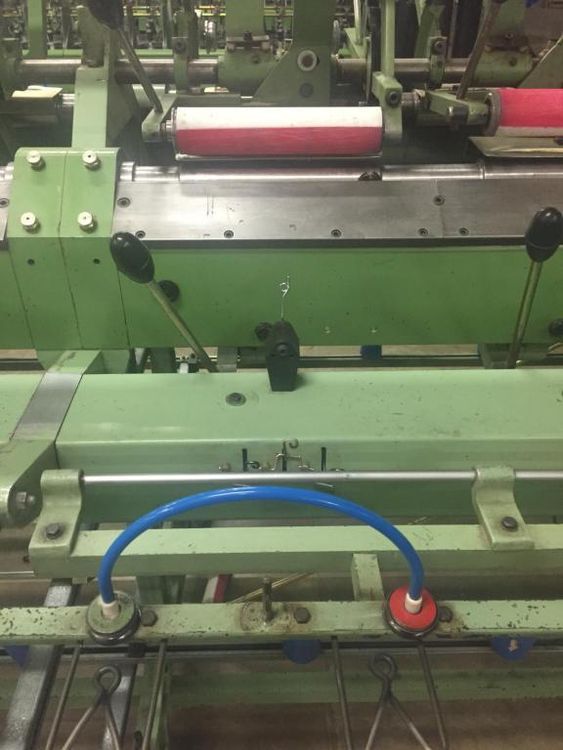

N° 5 TWIST SAVIO MODEL TDS 190 N° 348 SPINDLES EACH YEAR 1990
EXIT CONE 6” 4° 20 PNEUMATIC THREED , SOFT CONE ALIMENTATION CONE 8” CYLINDRICAL ( 200 MM )
INTERIOR BASKET MM 152 MM BALLON CONTROLLED MAGITEX TRAVELLER CLEANER SYSTEM VOLT 380 50 HZ

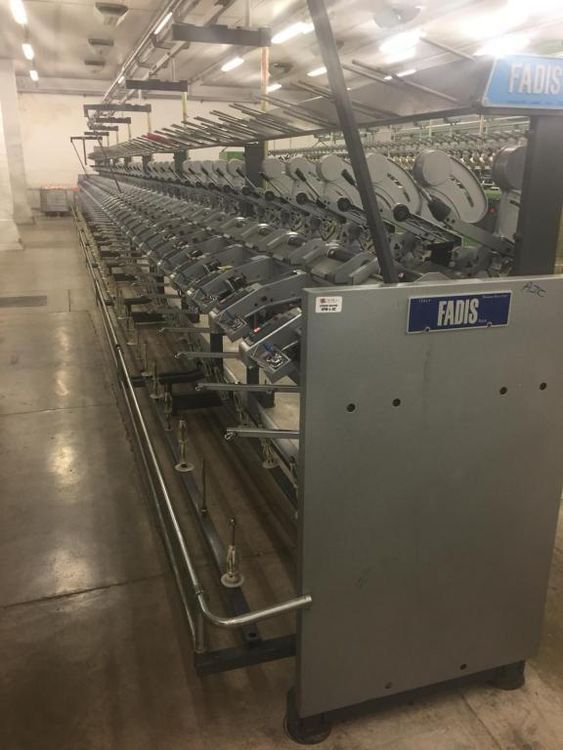

N° 1 DUBBLING FADIS MODEL TUAN N° 42 SPINDLES MANUAL DOFFING EXIT CONE 8” CYLINDRICAL ( DIMETER 42 MM INTERIOR X 220 MM )
DOWN CREEL FOR PLY COUNT METER MAGITEX TRAVELLER CLEANER
YEAR 1994 VOLT 380 50 HZ

N° 1 DUBBING BODEGA MODEL BO -AO N° 72 SPINDLES
( N° 36 LEFT N° 36 RIGHT ) YEAR 1989
MANUAL DOFFING EXIT CONE 8” CYLINDRICAL ( DIMETER 42 MM INTERIOR X 220 MM) .

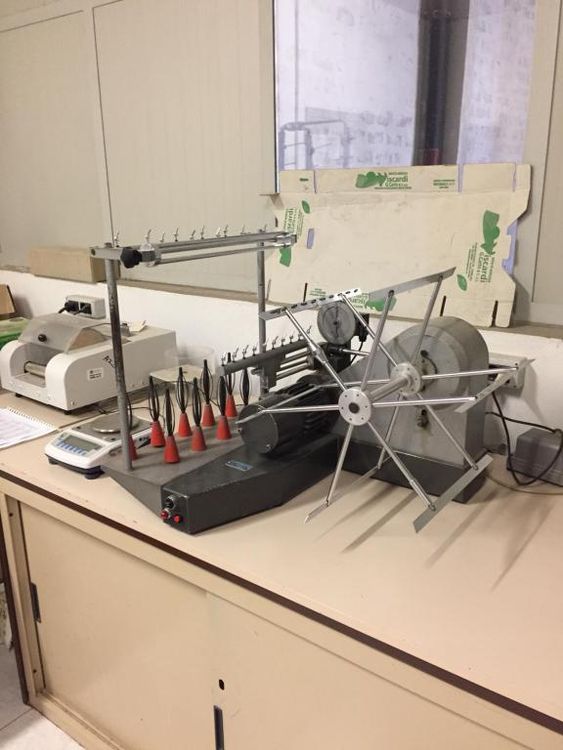

LABORATORY EQUIPMENT

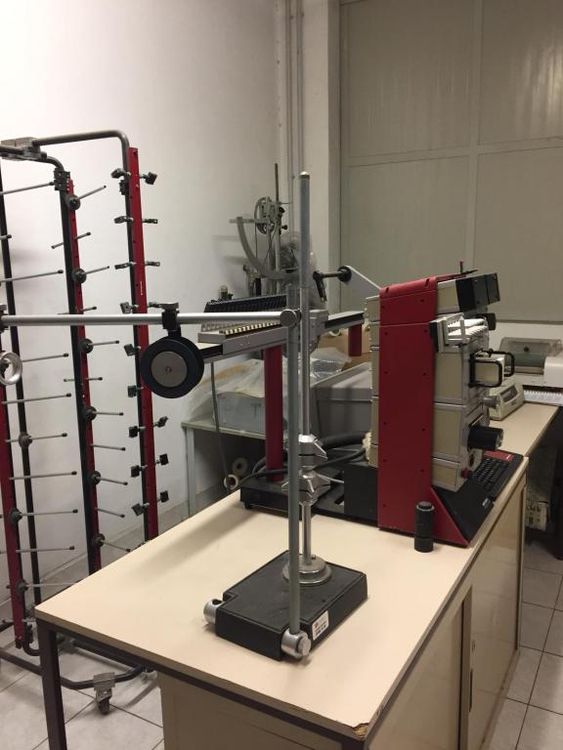

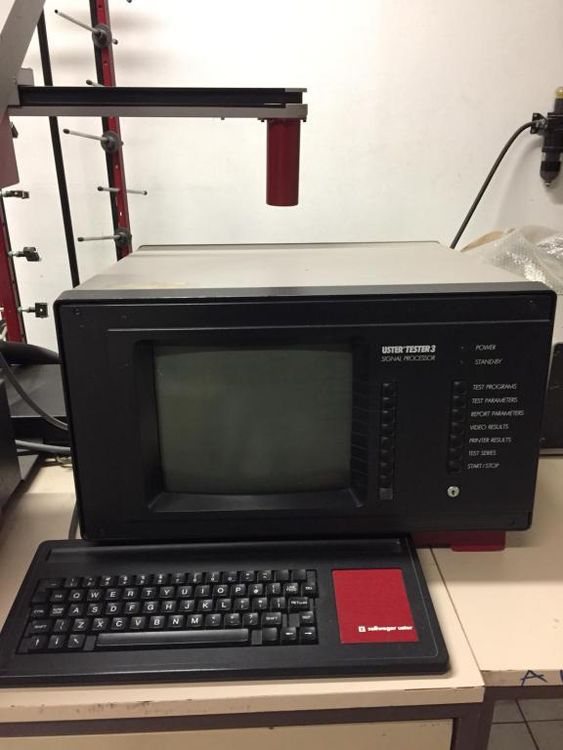

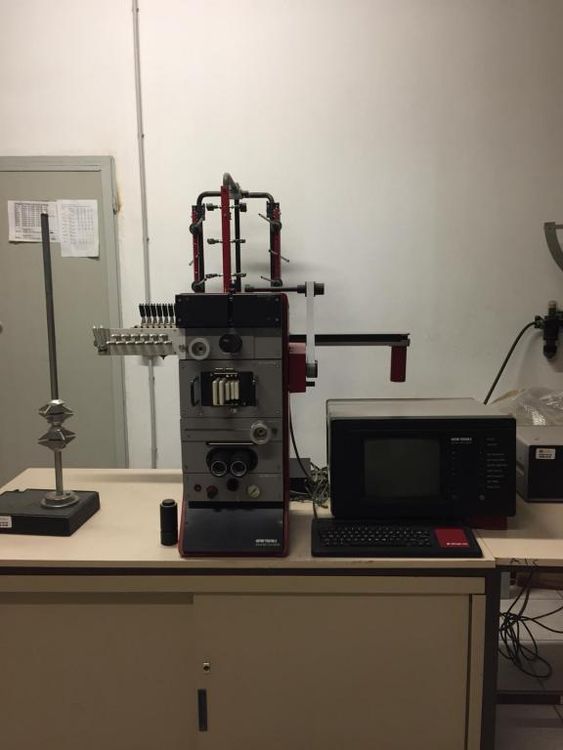

USTER TESTER 3 WITH HAIRNESS AND AUTOMATIC CREEL VIDEO PRINTER YEAR 1996

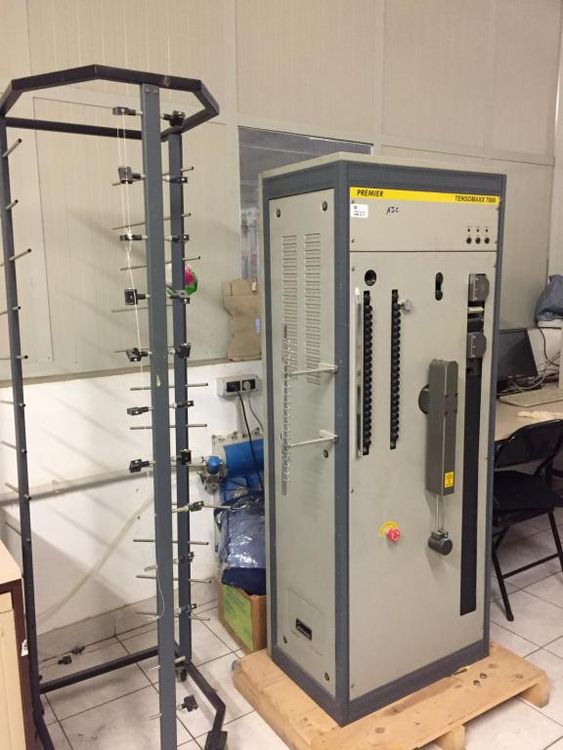

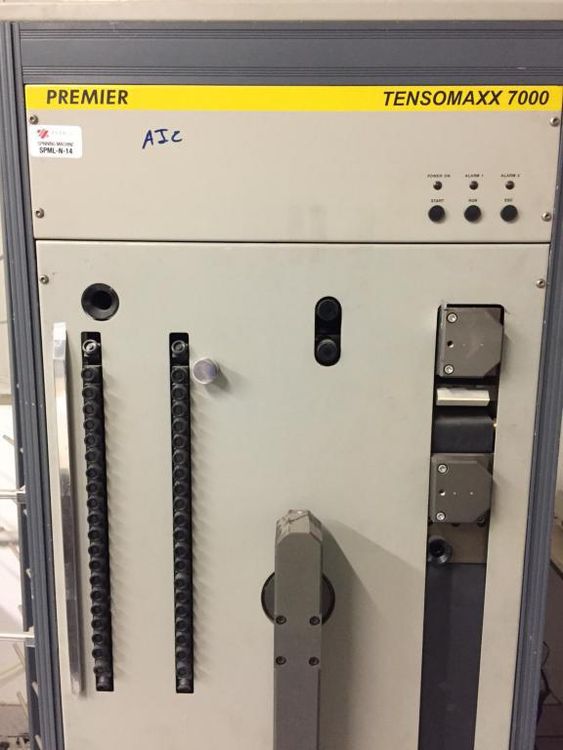

N° 1 DINAMOMETER PREMIER TENSOMAXX 7000 ( IDENTICAL AT USTER TENSORAPID 3 ) YEAR 2001

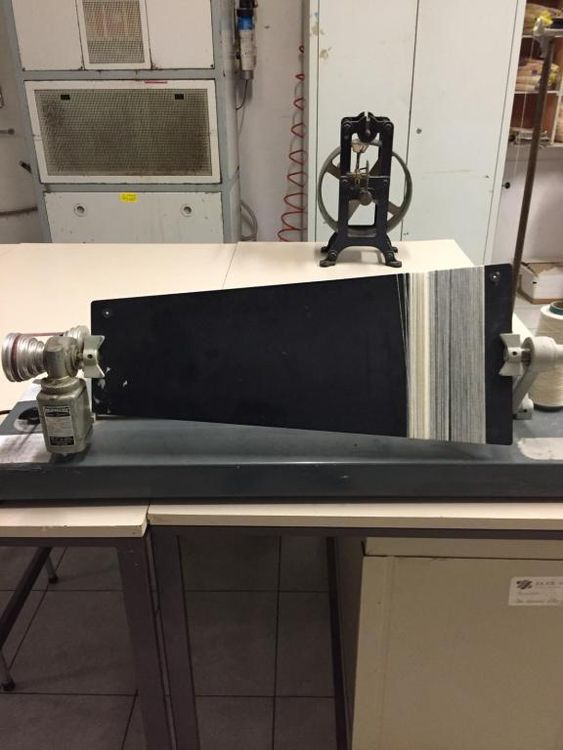

N° 1 BLACK TABLE

N° 1 ASPINO

VARIOUS EQUIPMENT

N° 80 CANS FOR CARD SIZE 40”

N° 50 CANS FOR COMBER SIZE 24”

N° 250 CANS FOR ROVING SIZE 20”

N° 120 TUBE FRO UNILAP / COMBERS

N° 20.000 TUBE FOR ROVING FRAME ZINSER 670 IN TWO COLORS

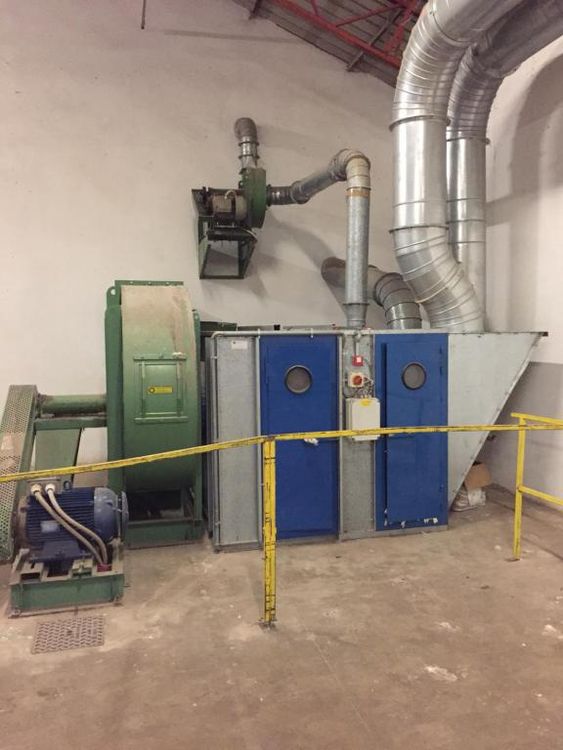

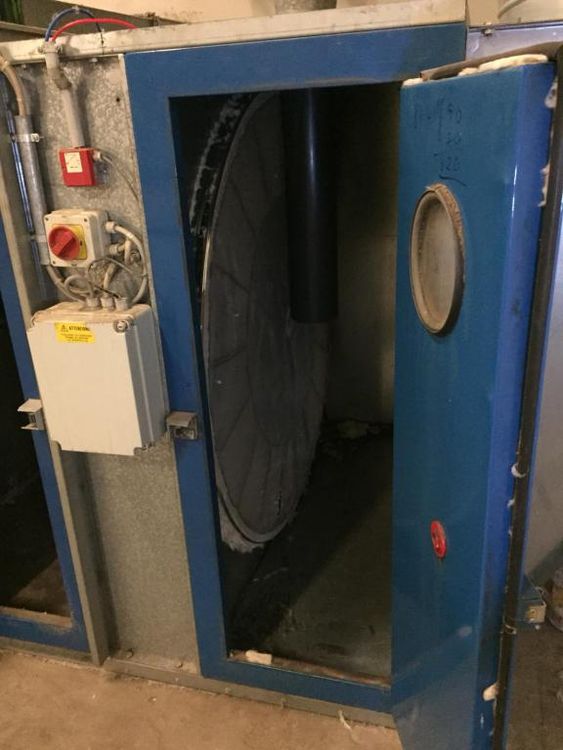

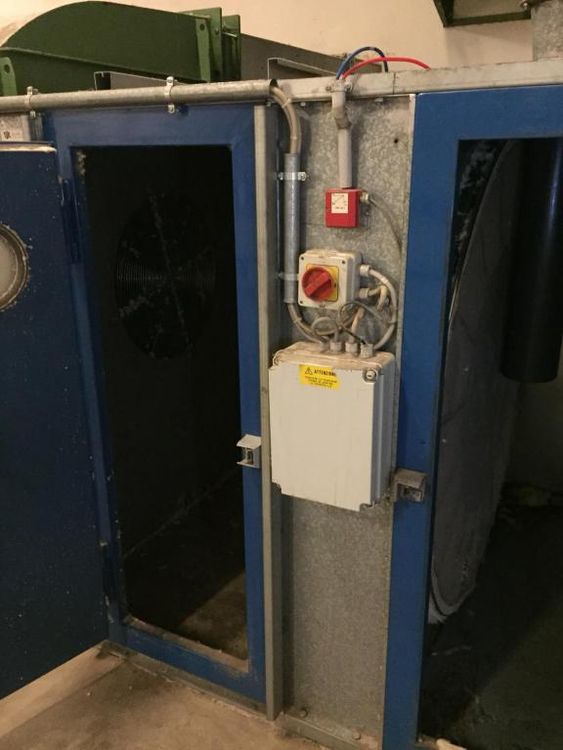

N° 1 LUWA AIR CLEANER INSTALLATION WITH FILTER AND PRE FILTER

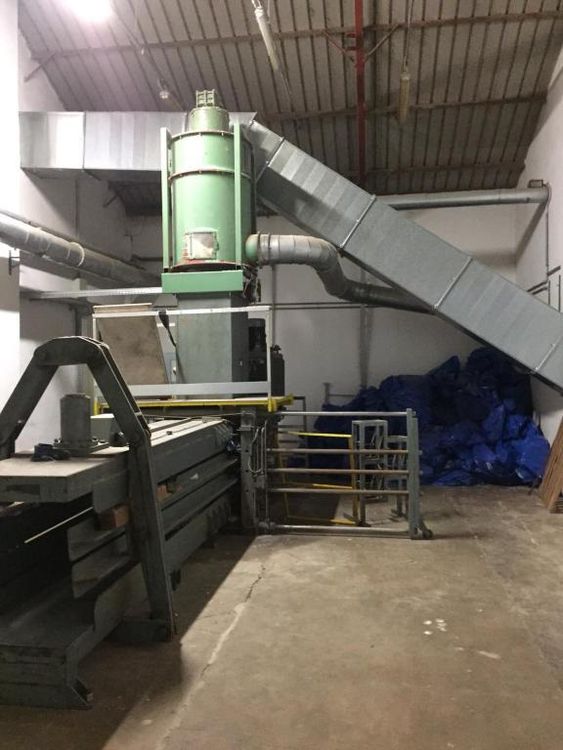

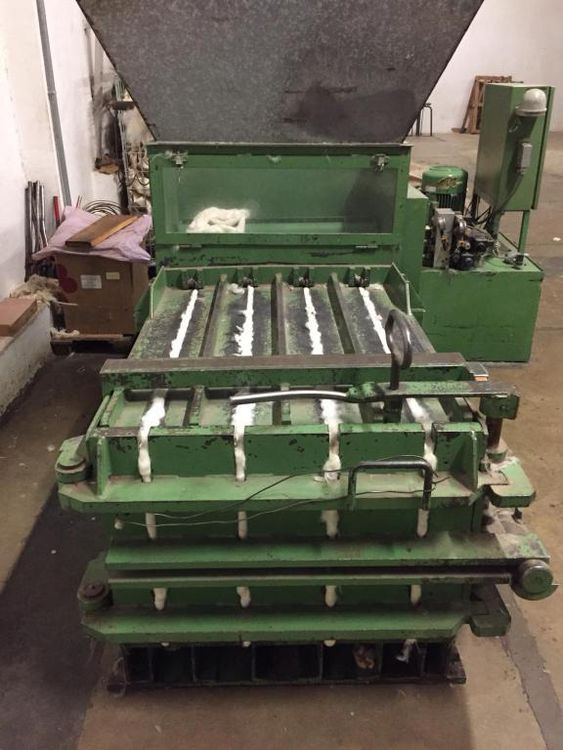

N° 1 ORZZINTONAL PRESS MODEL ZAGIB PRESSION 20,00 TON AUTOMATIC BINDING YEAR 1990

BALLS APOROX 130 KG DIMENSION L 1200 MM X 800 MM X 600 MM

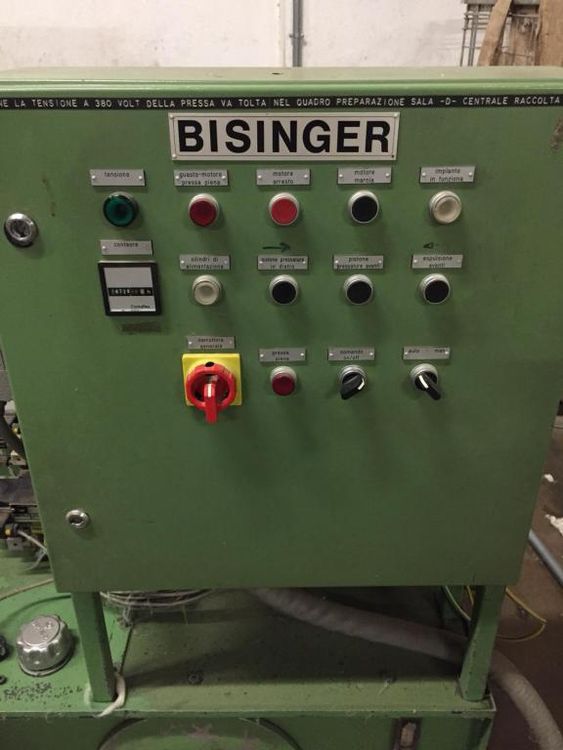

N° 1 ORZZINTONAL PRESS MODEL BISINGER MANUAL BINDING YEAR 1990

BALLS APOROX 120 KG DIMENSION L 1200 MM X 800 MM X 600 MM


GRAF EQUIPMENT FOR INSTALLATION WIRE AT CARD

N° 1 PELUSO MANUAL MACHINE FOR RETTIFICATION COTS RINGSPINNING / ROVING / COMBERS

N° 1 TRE EMME MANUAL MACHINE FOR RETTIFICATION COTS RINGSPINNING / ROVING / COMBERS

N° 1 HOLLINGSWORTH FALT TOP MILLING MACHINE YEAR 1992

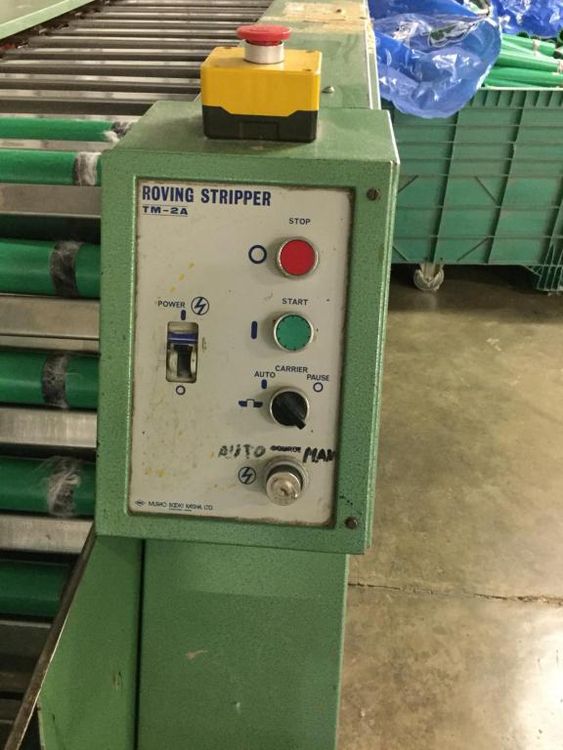

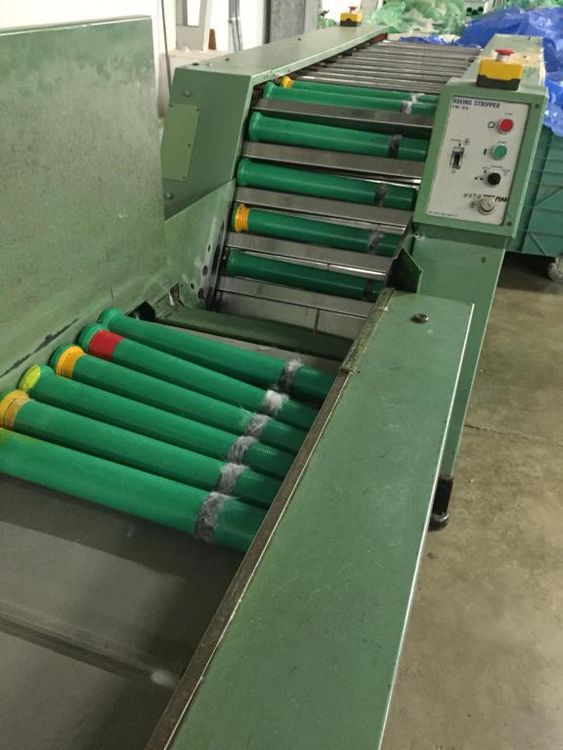

N° 1 MURAO BOBBIN STRIPPER

N° 2 KASER COMPACTOR

N° 80 ALLUMINIUM TROLLEY FOR CONE

N° 1 FASCIAPALLETS MODEL FPWD/ S FERPLAST FOR PALLES N° 12 CONE PALLETS SZE 1200 MM X 1200 MM YEAR 2000
