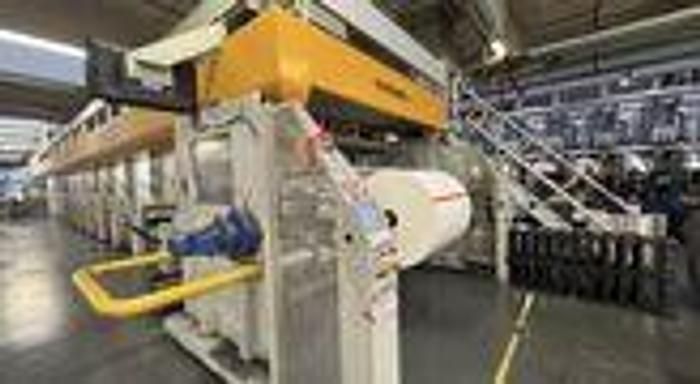

Rotomec RS4003MP 1130mm

ROTOGRAVURE PRINTING LINE
Number of colours: 10
Print possibilities: 10 + 0, 9 + 1
Drive: electronic shaft
Trolley system
Web width: 1100mm
Print width: 1130mm
Print repeat range: 400–850mm
Drying specifications: units 1- 8, one blowing fan, single drying hood 2.7mt, unit 9 2 blowing fan, one exhaust fan
Double drying hood 2 x 3.2mt, unit 10 2 blowing fan, one exhaust fan
Double drying hood 2 x 3.5mt
Thermo oil heat exchangers automatic air recirculation system with LEL control by Honeywell
Drying heat: thermo oil heat exchangers
Unwind: turret automatic non stop 1000mm
Maximum reel diameter unwind: 1000mm
Rewind: turret automatic non stop
Maximum reel diameter rewind: 1000mm
Video camera: x 2 BST
Register control: Bobst Registron
Viscosity control: Celio
Print cylinders: 1100
