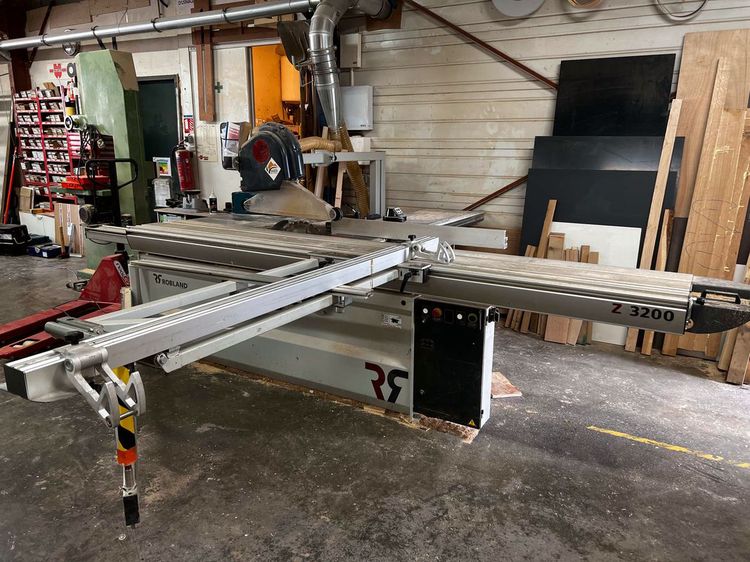

Robland Z 3200

Sliding table saw
Bought new in July 2015
Perfect working condition. Careful use.

Z3200 Technical Data
* Supply voltage: 230V / 400V
* Standard saw motor power: 7.5hp
* Weight: 1200 kg
*
Circular saw Z3200
* Saw blade diameter and bore: 400 x 30 mm
* Cutting height at 90° / 45°: 125 mm / 100 mm
* R.p.m. 3000 / 4000 / 5000
* Shaft inclination 90° – 45°
* Parallel cutting capacity: 1380 mm
* Cutting length: 3200 (option 3800) mm
* Saw table dimensions: 885 x 700 mm
* Standard trolley dimensions: 3200 x 420 (option 3800) mm
* Dimensions of the cutting table: 1420 x 500 mm
* Cut-off stop guide length: 1800 (telescopic 2850 mm)

Scorer
* Diameter and bore of scoring blade: 120 x 20 mm
* Depth of cut blade dia. 120mm: 3.5mm
* R.p.m. : 8200
* Scoring motor power: 0.75 hp

Equipment :
* Suction nozzles: 120 + 80 mm
* Miter gauge on carriage: standard
* Small support table and edging guide: standard
* Digital display of the parallel guide
* Digital display on a stop of the cutting guide

Paper user manual available
Forklift to load it.
