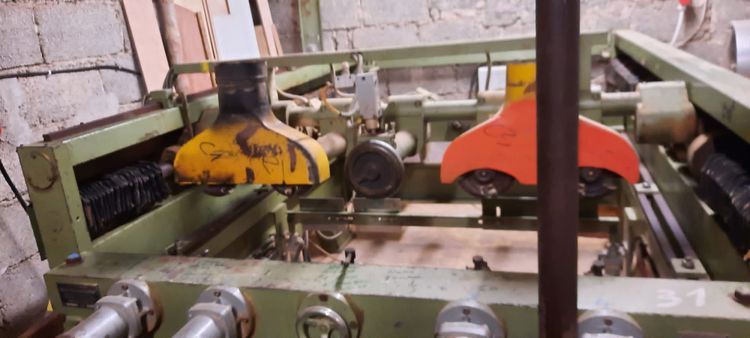

Reichenbacher E 425 Copying router
Ref :
2567508-15-MT
Condition :
Used
Manufacturer :
Reichenbacher
Model :
E 425
Short Description :
Copying router
Year(s) :
-
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
Last check :
21 Dec. 2023
4 router spindles
simultaneous copy routing of 2 workpieces right and 2 left
max. workpiece diameter 200 mm
max. routing length approx. 2000 mm
router spindle turning speed 6000 rpm
motor power of router spindles 4 x 1,5 PS = 1,1 kW
converter 7,5 KVA
diameter of connections for dust suction pipe 2 x 150 mm
turnning speed of workpieces 6,7 bis 33,5 UpM stepless variable
router feed 50 to 250 mm/min. stepless variable
tool head diameter 170 mm
