OverMeccanica, Recard Crescent Tissue Machine 2.750 mm 11 to 23 GSM 65 TPD
-
Material width on reel: 2750 mm
Production speed: up to 1250 m/min
Drying capacity: 65 ton/day
Raw material: Virgin pulp
Electrical drives: 400V 50 Hz
Electrical drive type: (DC-440V)
Hood drive type: Siemens DC
DCS: Siemens S7-400 (Include MDP & MCC, cables)
Products: Facials & Toilet Tissue
Headbox supplier: Overmeccanica
Pond side width: 2780mm
Layers: 1
Wet section/pressing:
Suction press: 80 kN/m
Blind press: 80 kN/m
Yankee Cylinder:
Diameter: 3850mm
Width: 3050mm
Max pressure: 8 bar
Dyring hoods:
Brand: Aerothermic Lucca Italy
Energy: Gas/max temp 430 degrees C
Profling: Yes 10+2
Doctor blade:
No. 1 cutting
No. 2 creeping with conformatic complete with oscillation
No. 3 cleaning
Pope Reel
Max roll diameter: 2300mm
Max width: 2730mm
Spare parts:
1 forming roll
1 wire roll
2 felt rolls
1 suction press roll
1 blind drill roll
4 spools

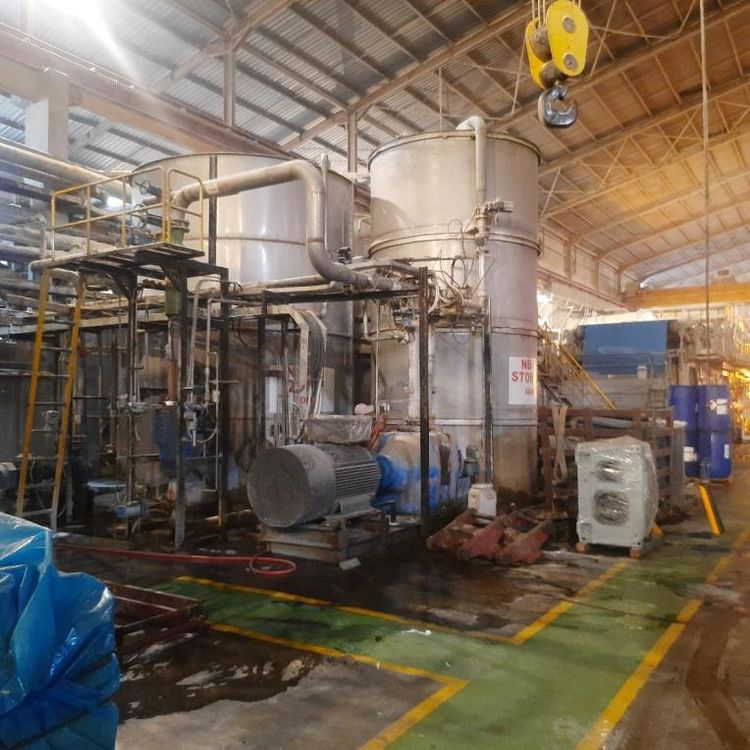

Approach flow:
Fan pump, 220kw DC motor
Vertical screen, 45kw, AC motor
Nash Vacuum pump, 315kw, AC Motor
Fiber Recovery: Krofta (capacity 6000 Lpm) complete with
accessories

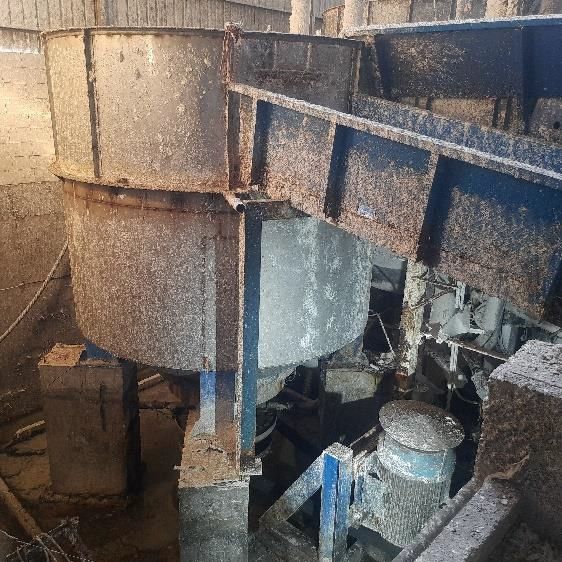

Pulper:
Capacity: 16m3
Power: 160 kW agitator

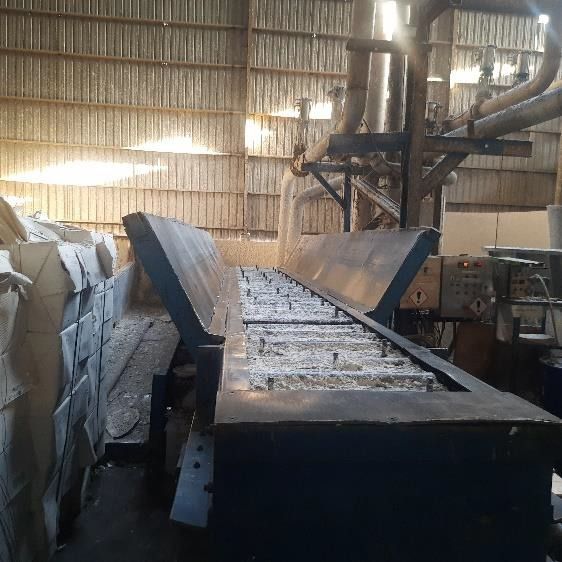

Note: with conveyor
HDC: one unit
Refiner 1: 350 kW
Refiner 2: 350 kW
Deflaker 1: 90 kW
Accessories: Includes pump, tank, agitator,
instruments & valves

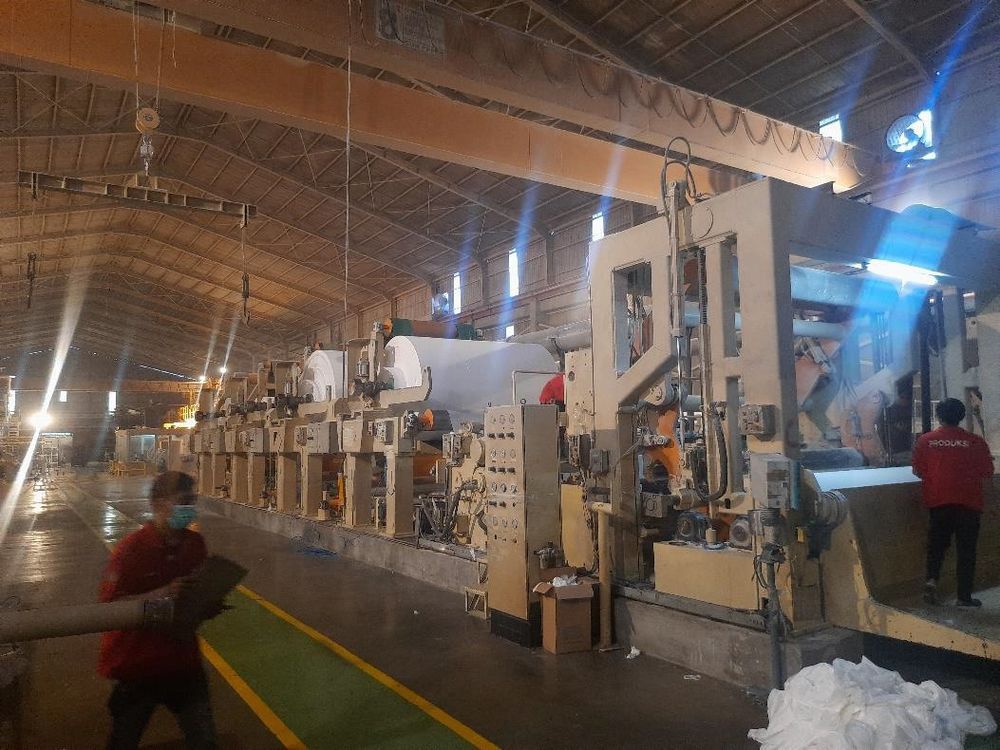

Manufacturer: ACelli
Year: 1998
Max width: 2750 mm
Max reel diameter: 1800 mm
Production speed: 1200 m/min
Basic weight range: 12 – 30 gsm
Max plies: 4
Drive type: Siemens AC Drive
Unwinds: 4 stands
Max parent reel diameter: 2500 mm
Slitters: 6 Pcs by maxcess
PM14 ( 65 TPD)
see also for sale PM15 ( 70 TPD)
