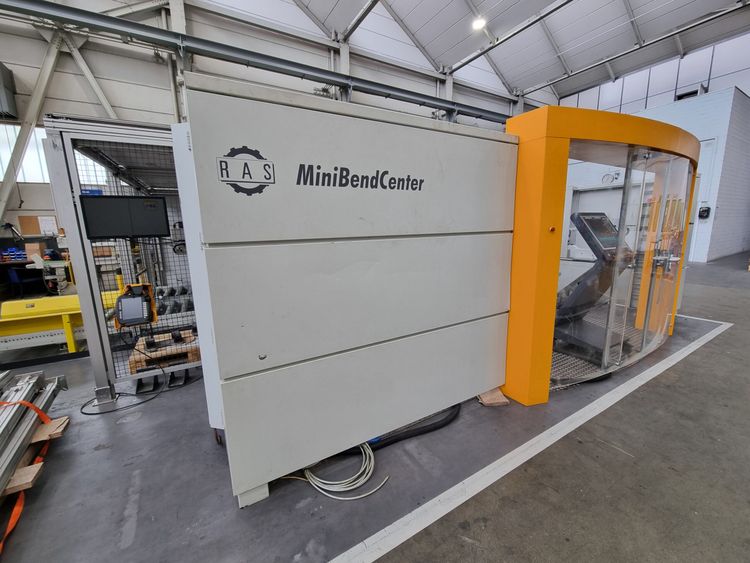

Ras MiniBendCenter 79.05

RAS MiniBendCenter 79.05
New in 2015

Board length: 50–600 mm
Board width: 40–600 mm
Sheet thickness max. (400 N/mm²) depending on tool: 3,0 mm
Upper cheek stroke max: 500 mm
Smallest leg height Standard value depends on tool: 5 mm x s
Maximum leg height: 127 mm
Weight of bending cell: 10 tons
Weight of cladding and electrics: ca. 2027 kg
Weight of machine elements: ca. 945 kg
Motor operation: 400V, 50/60 Hz, 3-Ph
Condition: refurbished—good used condition

Bending cell:
Automatic sheet thickness adjustment
Automatic tool clamping
Blank scanner

Main manipulator:
3 servomotors for X,Y,Z
1 servo motor for lower rotary axis + separate drive for rotary axis
Double sheet detection

Tool changer:
3 servomotors for X,Y,Z
1 pneum. Swivel drive for rotary axis
Tool gripper
Tool magazine on 2 levels
Automatic tool clamping in the tool magazine

Cladding:
Bending cell front and rear

Movable control panel:
18″ Touch & More control unit

Pallet station:
Roller conveyors and heavy-duty chain conveyors
1 space for new pallets (parts that are being processed)
1 space for “pallet in process”
2 spaces for finished pallets (empty or with remaining quantity)

Additional equipment:
Intelligent charging robot
Combined camera-scanner system
Analysis software
Transfer table, Sauerfeld (52x9mm) suction cup series (7x20mm)
Conveyor curve belt with 6 connection stations
Cladding finished part output
Complete tool set
RAS CAM-Office software incl. SolidWorks license and maintenance contract for 2 years
