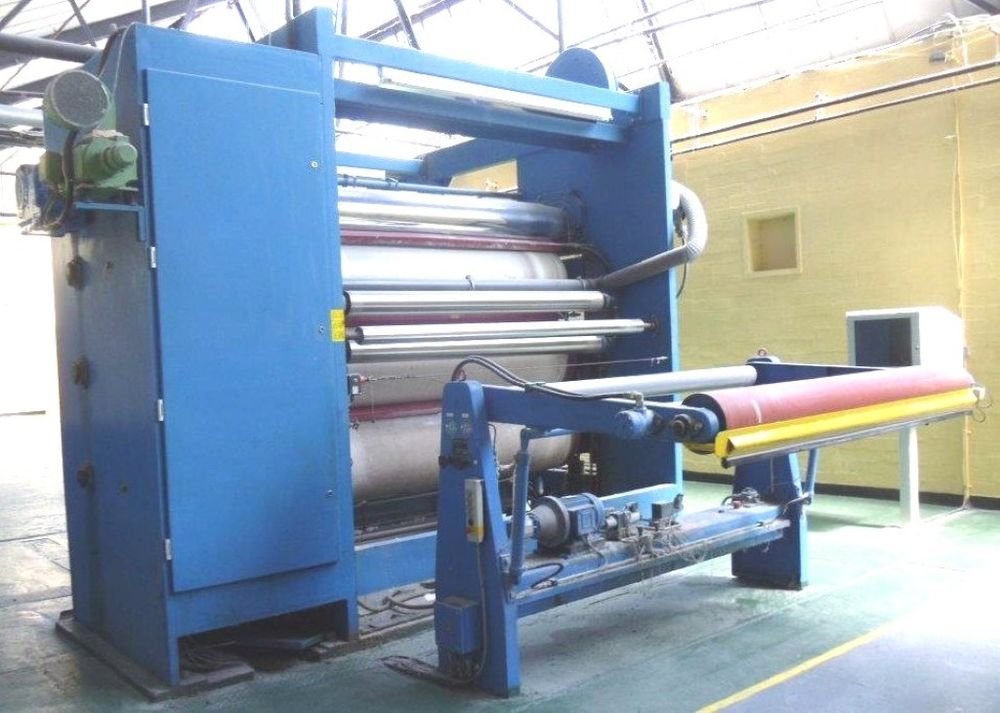

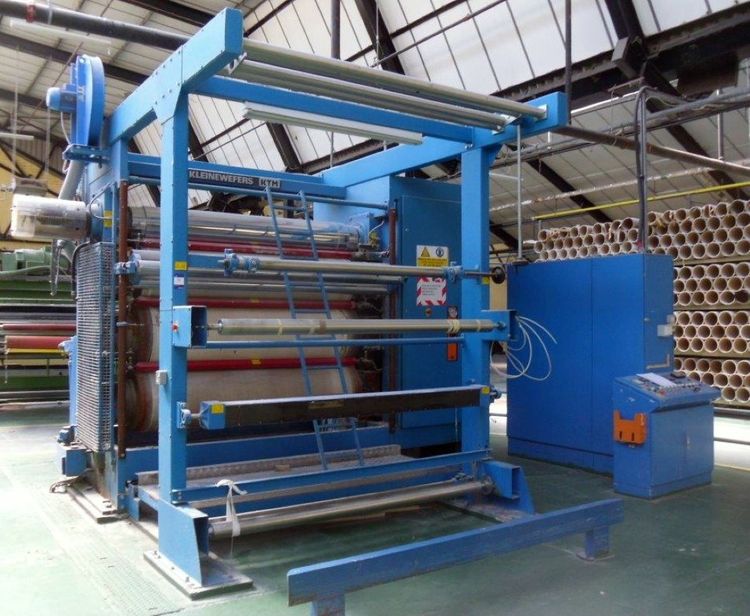

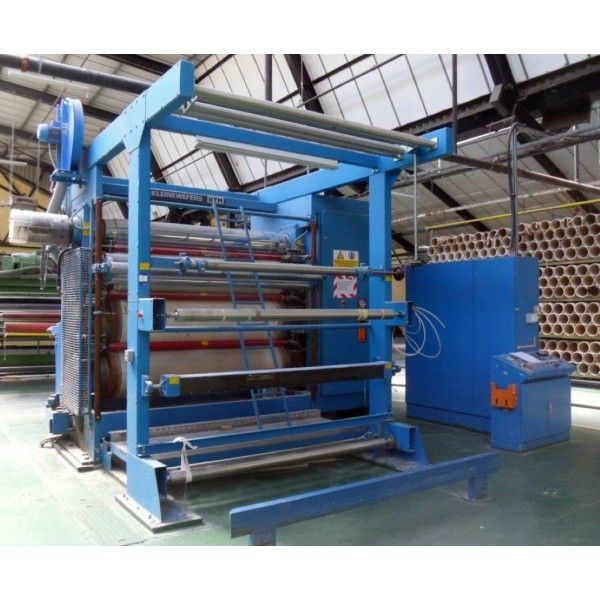

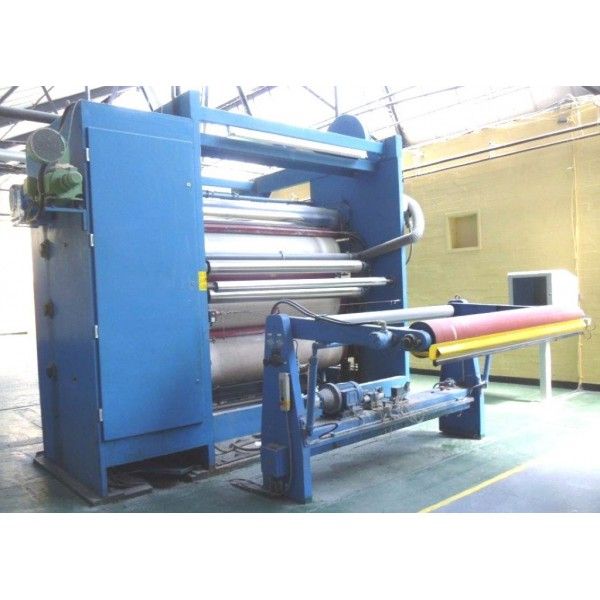

KTM, Ramisch RKK 440 Calender
EUROPE (Western and Northern)
RE-CONDITIONED TO ORDER 2020, ORIGINAL YEAR 2003
SUITABLE FOR SHIRTING FABRICS 100% COTTON OR BLENDED WITH OTHER FIBERS (POLYESTER, ELASTANE, ETC.)

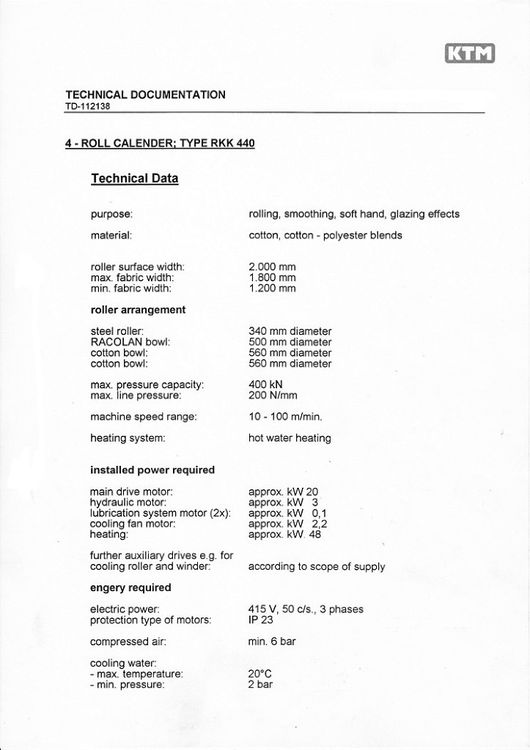

ROLLER WIDTH MM.2000 MAX
WORKING PRESSURE 40 TONS (KG.40.000)
SPEED RANGE 10-100 MT/MIN.

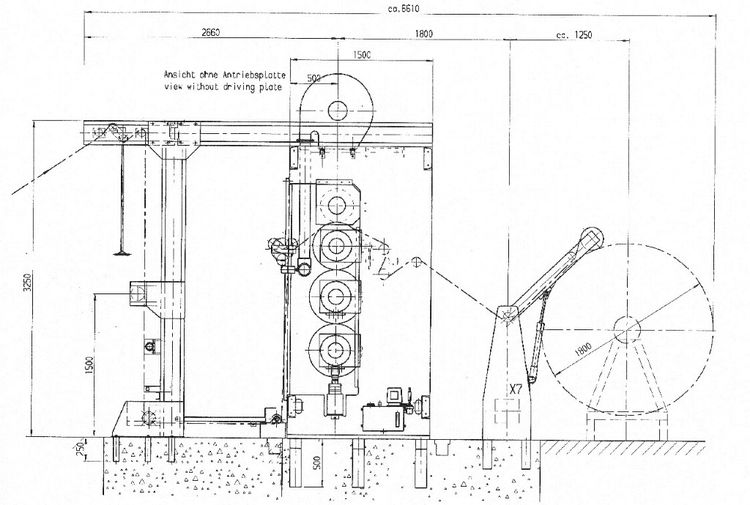

4 CYLINDER (BOWLS)
WITH FOLLOWING DISPOSAL:
STAINLESS STEEL HEATED CYLINDER DIAM.MM. 340
NEW NYLON RACOLAN COVERED CYLINDER DIAM.MM.500
NEW COTTON CYLINDER DIAM.MM.560
COTTON CYLINDER DIAM.MM.560

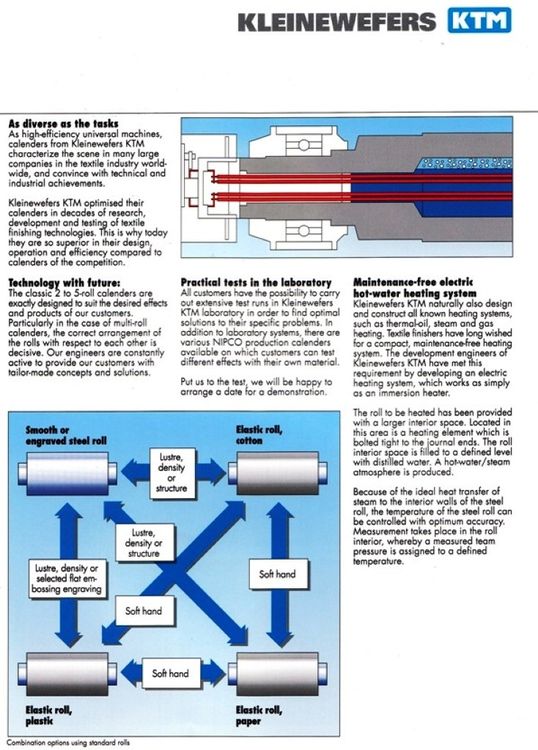

STAINLESS STEEL CYLINDERS HEATED THROUGH DISTILLED WATER ELECTRICALLY HEATED AT LOW CONSUMPTION (MAINTANENCE-FREE)
MAX TEMPERATURE 250°C. (WITH PRECISION IN HEATING OF 1°C. MORE/LESS)
AIR BLOWER DEVICE ON TO THE EDGES OF THE CYLINDER TO AVOID DAMAGING WHEN CALENDARING WITH HIGH TEMPERATURE HEATED CYLINDER
ENTRY FRAME WITH ERARDTH+LEIMER METAL DETECTOR MOD. MDA ELECTROTEX SEARCH-SEAM UNIT
EXIT WITH 2 WATER COOLED CYLINDERS TO COOL THE FABRICS CONTACT BATCH ARM DEVICE FOR TAKE UP OF THE FABRICS ON TO A FRAMES.
MACHINE CAN ACHIEVE THE FOLLOWING EFFECTS:-
-SMOOTHING EFFECT-MATT EFFECT-SOFT HAND EFFECT-LUSTRE EFFECT

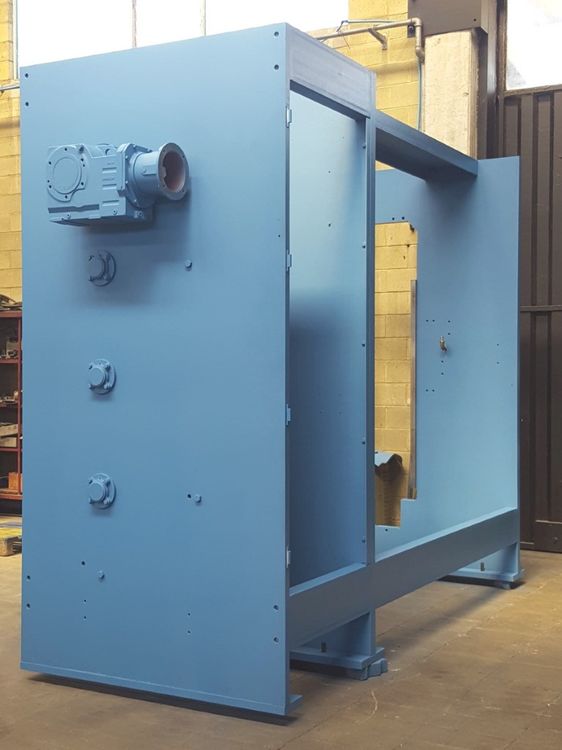

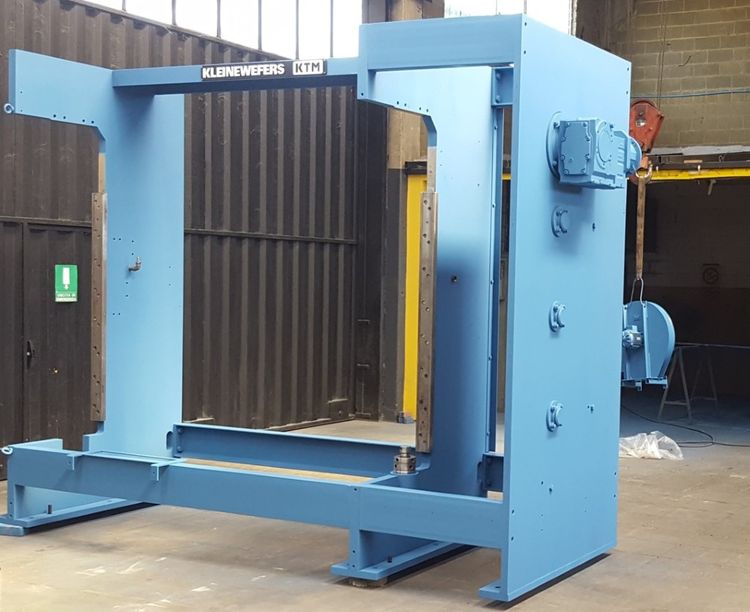

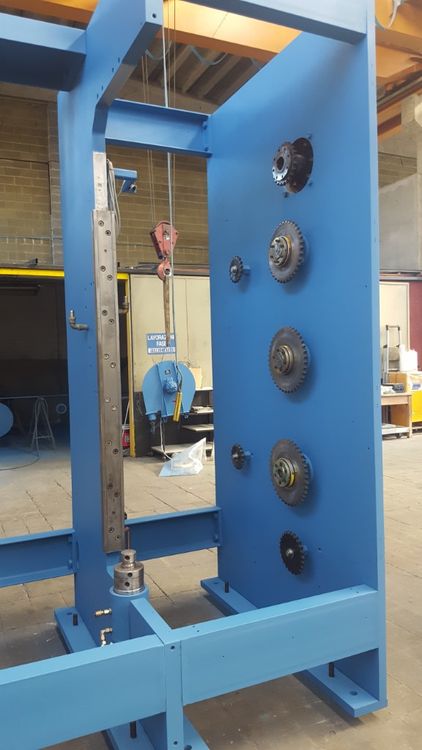

MACHINE TOTALLY RECONDITIONED AND TESTED WITH 6 MONTHS MECHANICAL GUARANTEE *1 CYLINDER RACOLAN AND 1 CYLINDER MADE IN COTTON ARE NEW
